16 310543
Parts
Part No. C02026
Model 482–HA; Model 482–C with trigger-actuated pistol grip handle
Ref.
No. Part No. Description Qty.
1 C02022 METER VALVE 1
2 C20850 ELBOW 1
3 C19955 SOCKET HEAD SCREW 4
4 19233 TUBING 1
5 C20861 FITTING (#10-32 x 1/8) 1
6 104636 VALVE 1
7 C20023 SOCKET HEAD SCREW 1
8 C02039 HANDLE 2
Ref.
No. Part No. Description Qty.
9 C26312 TRIGGER 1
10 C04083 SPRING 1
11 C20065 ROLL PIN 1
12 C20064 ROLL PIN 1
13 C02040 MOUNTING BLOCK 1
Use Repair Kit C02023. Refer to page 19 for infor-
mation.

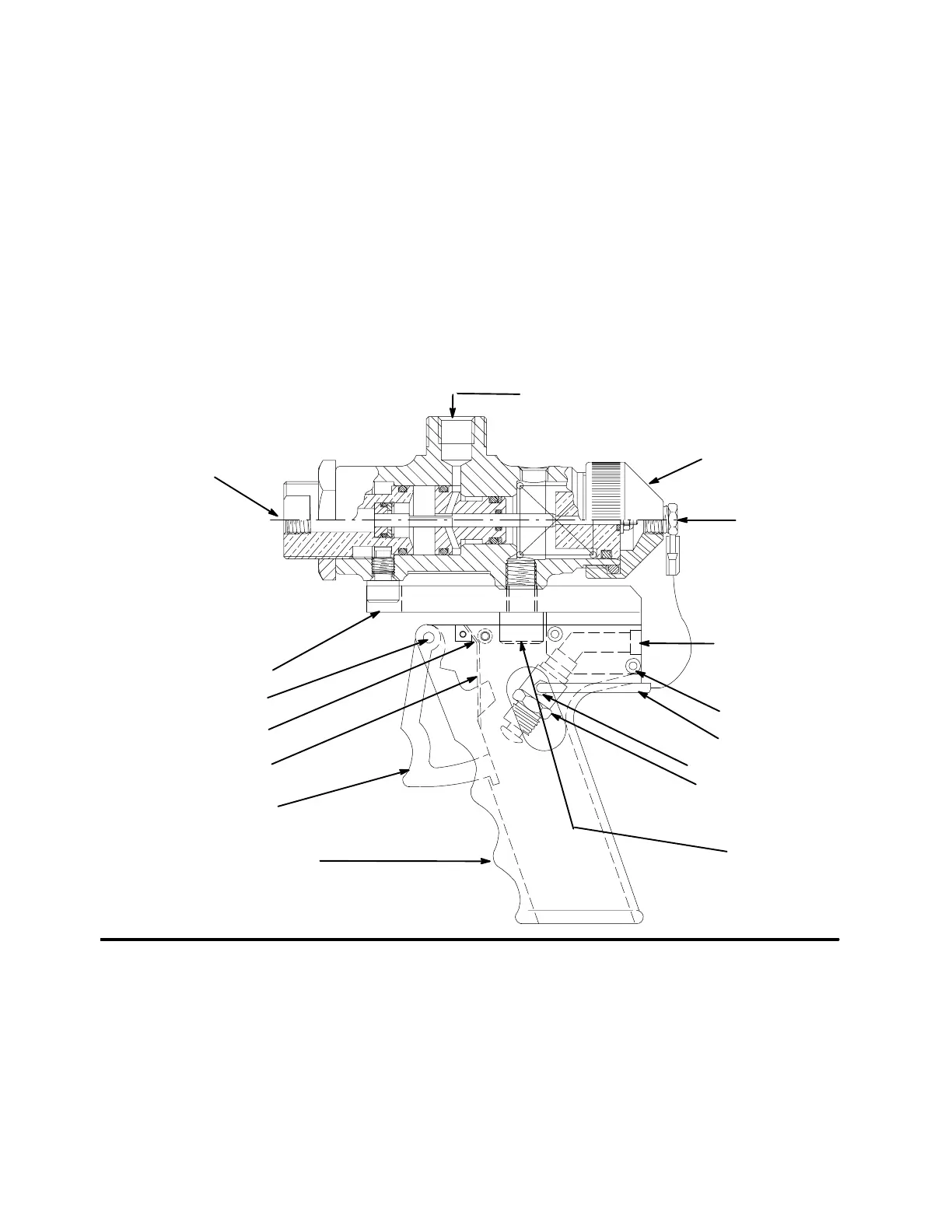

Fig. 2
Material Outlet
Port 1/8” N.P.T.
Material Inlet Port 1/4” N.P.T.
Max. Mat’l Pressure 2,500 PSI
Inlet Port
1/8” N.P.T.
80 PSI
1
2
3
4
5
6
7
13
12
11
10
9
8
C02026
TI0611
To Next Page
