310543 21

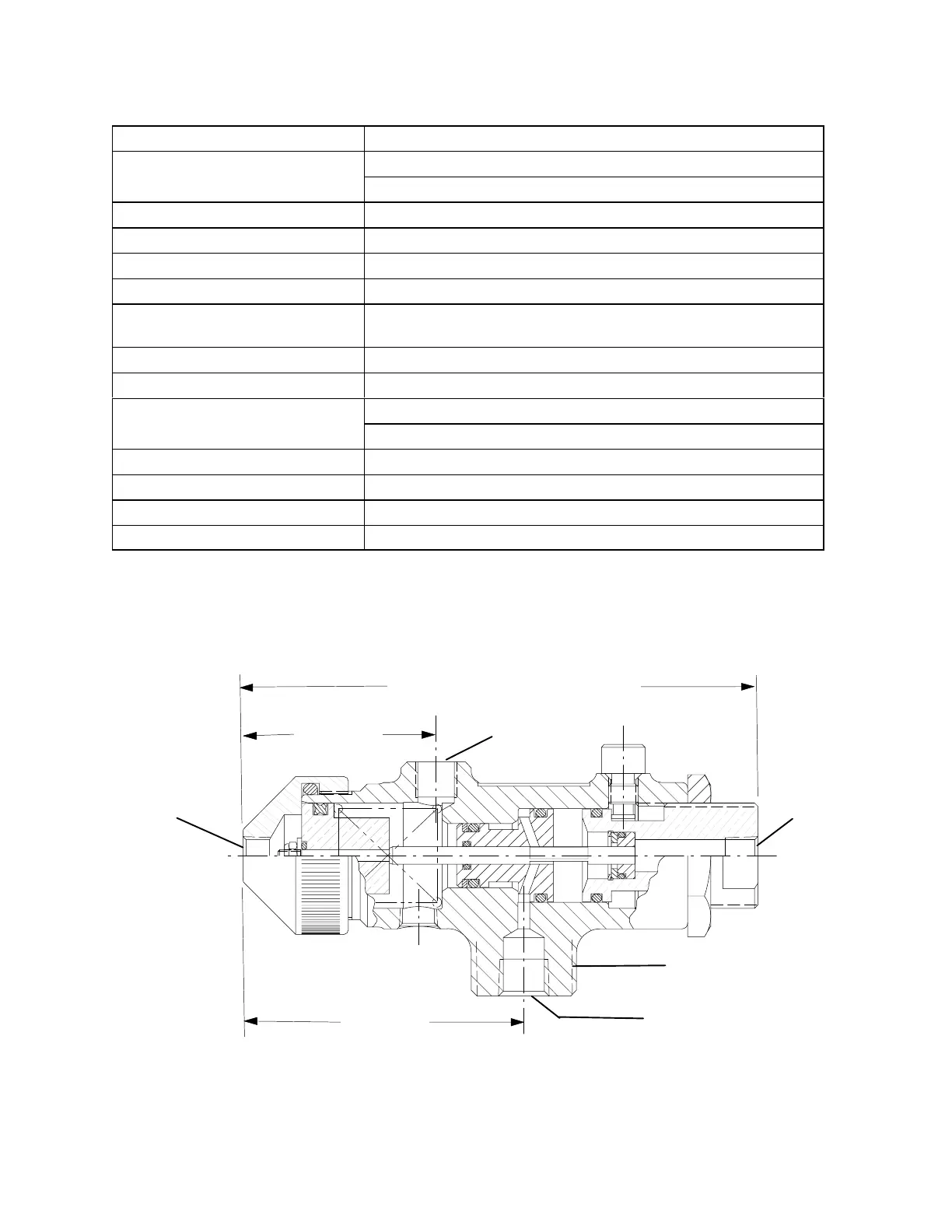

Technical Data
Models C02021, C02022, C02025, C02026
Category Data
Maximum fluid working pressure All other metering valves: 3200 psi (22.0 MPa, 220 bar)
C02026: 2500 psi (17.2 MPa, 172.4 bar)
Minimum fluid working pressure 50 psi (0.34 MPa, 3.4 bar)
Minimum air supply pressure 80 psi (0.55 MPa, 5.5 bar)
Viscosity range 3000 to 1 million centipoise
Shot size range 0.2 to 4.0 cc
Shot cycle rate 15 shots per minute, at 4.0 cc shot size with moderate viscosity
fluid
Fluid inlet 1/4 npt(f)
Air supply inlet 1/8 npt(f)
Fluid outlet All other metering valves:1/8 npt(f)
C02025:1/4 npt(f)
Mounting hole 7/16–20 unf–2B
Piston Air-operated, spring return
Wetted parts Viton o-rings
Weight 1.43 lb (.65 kg)
Viton
Dimensions
5.50 Max. 5.19 Min.
(139.7 mm Max. 131.8 mm Min.)
3.00
(76.2 mm)
2.06
(52.3 mm)
7/8–18 UNS–2A
Thread for Mounting
7/16–20 x 5/8 Deep
Mounting Hole
Air Supply Inlet
1/8 NPT Minimum
80 P.S.I.
Material Outlet
1/8 NPT
Material Inlet
1/8 NPT
C02021
