Graco 482 Series User Manual

18 310543
Parts
Part No. C02028
Model 482–DA; with double acting air cylinder and 1/4 npt(f) outlet
Ref.
No. Part No. Description Qty.
1 C02079 BODY, VALVE, METER 1
2 C02044 RETAINER OUTLET 1
3 C02077 CAP, CYLINDER 1
4 C02074 PISTON, AIR 1
5 C02076 CYLINDER 1
6* C02036 NEEDLE SET, LAPPED 1
7 C02030 SCREW, STOP 1
8 C02042 NUT, LOCK 1
9 C02035 WASHER, BACK–UP 1
10 114027 WASHER, FLAT #6 1
11* C02032 NUT, LOCK NYLON #5–40 1
Ref.
No. Part No. Description Qty.
12* C20404 RING, SNAP, 5216–50 1
13* 168518 O–RING, VITON, 5192–6–V1
14* C20988 O–RING, VITON, 5194–8–V1
15* 106555 O–RING, VITON, 5192–12–V1
16* C20314 O–RING, VITON, 5194–112–V1
17* C20317 O–RING, VITON, 5194–117–V2
18* C20987 O–RING, BUNA N. 5192–125–N1
19* 157195 O–RING, BUNA N. 5192–223–N1
20* C02033 QUAD RING 1
21* C02073 QUAD RING 1
22* C20846 RING, BACK–UP 1
25 C19252 PLUG, PIPE, 1/8 NPT 3
* These parts are included in Repair Kit C02080,
which may be purchased separately.
Use Repair Kit C02080 when repairing C02078.
Refer to page 19 for information.

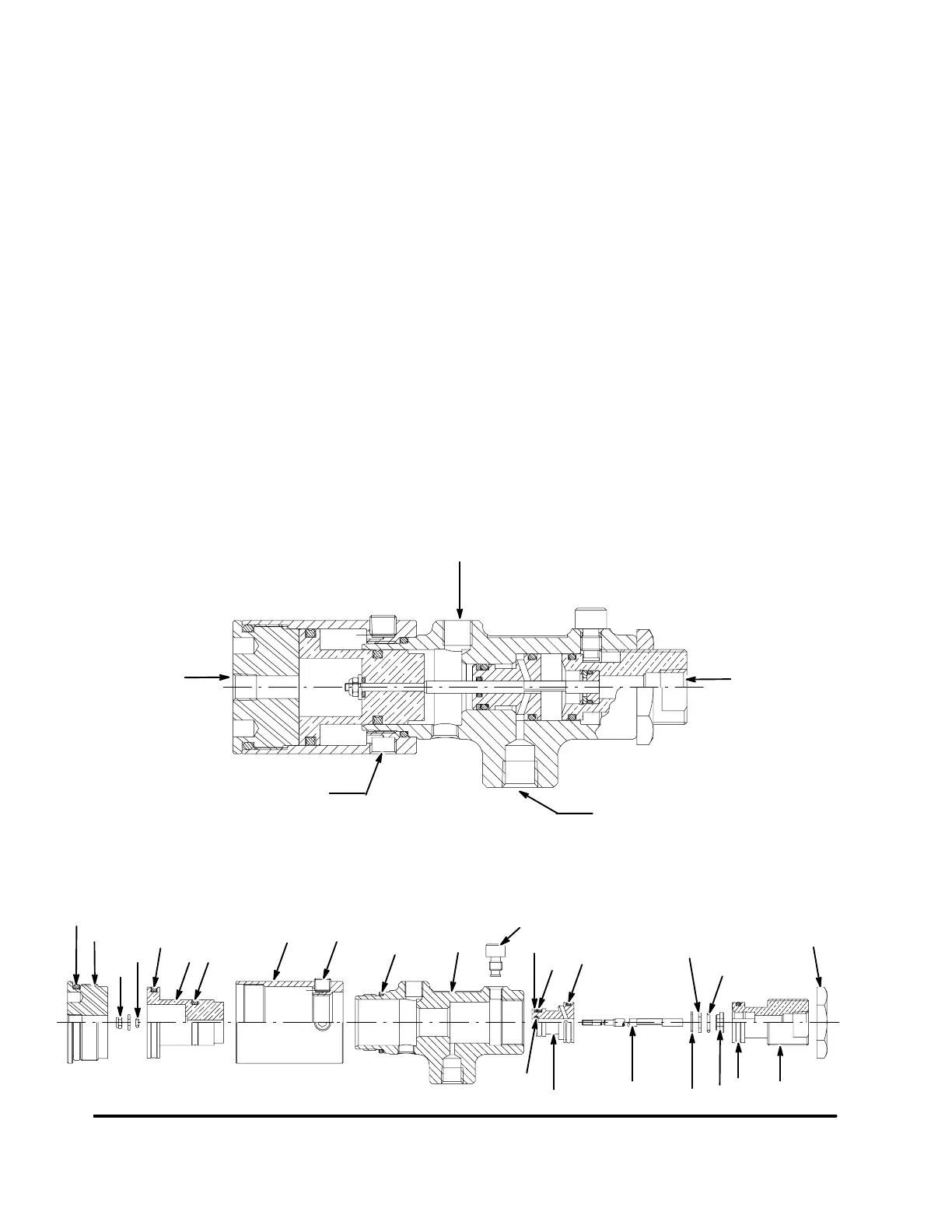

TI0612
7/16–20 x 5/8” Mounting Hole
1/8” N.P.T.
Material Outlet
1/8” Air
Supply Inlet
Minimum 80 psi.
1/4” N.P.T.
Material Inlet
1/8” Air Supply Inlet. 4
holes, equally spaced, valve
close. Minimum 80 psi.
Fig. 4 TI0612
19
3
11
13
21
4
20
5
25
18
1
7
22
22
14
6
17
6
12
6
15
9
17
2
8
C02021–Exploded View
