310543 17
Parts
Part No. C02027
This AMV is designed to be used with moisture
sensitive materials.
Ref.
No. Part No. Description Qty.
1 C02021 AUTOMATIC
METERING VALVE 1
2 C04104 CARTRIDGE; 2.5 oz 1
3 C26069 END CAP 1
4 C20477 HEX NIPPLE; 1/8” NPT 1
5 C20479 HEX NIPPLE; 1/4” NPT 1
6 C19888 90 REDUCING ELBOW
1/8 x 1/4 NPT; 1
7 C20023 S.H.C.S. 7/16–20 x 3/4 long 1
8 C26303 SEAL FLUID 1
Use Repair Kit C02023 when repairing C02027.
Refer to page 19 for information.

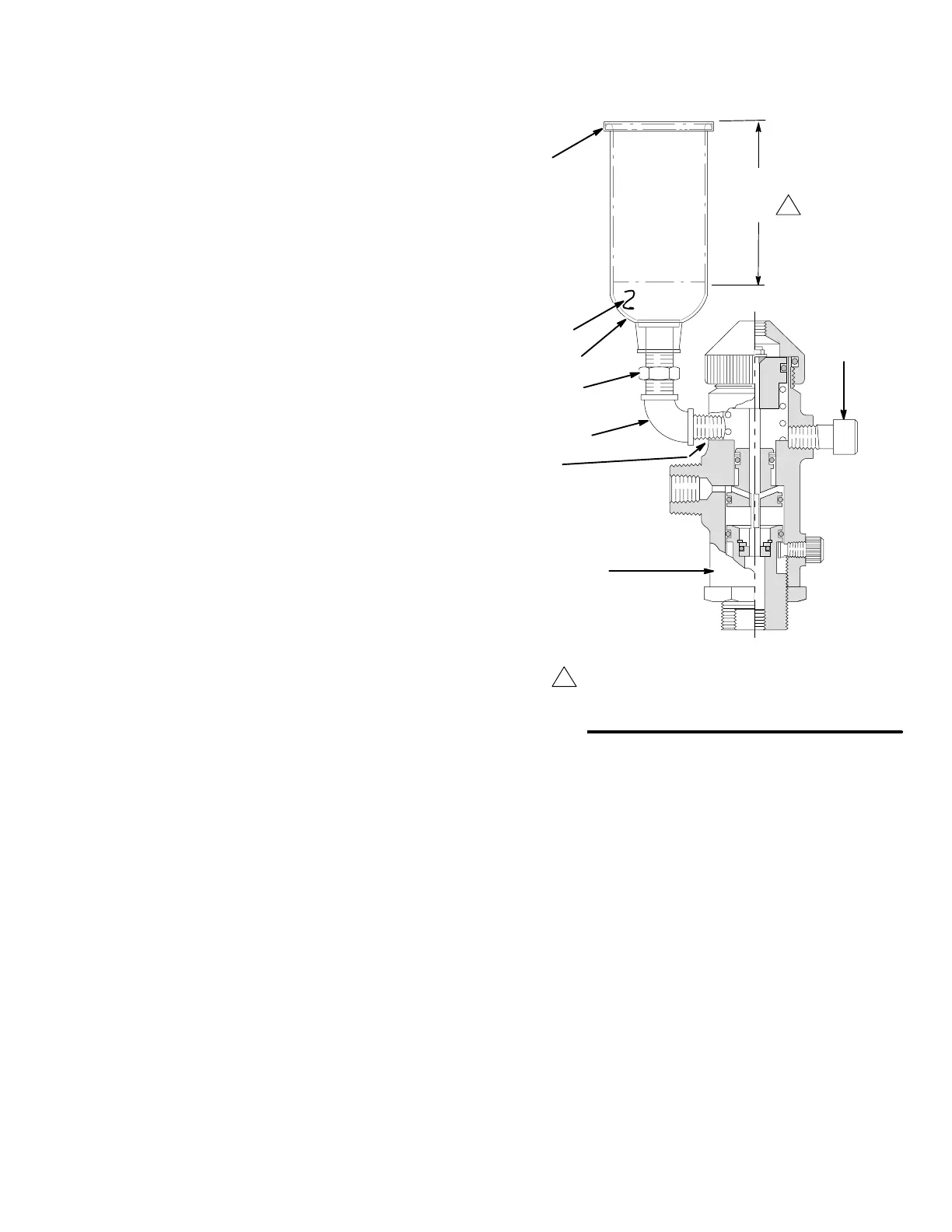

Fig. 3
7967A
2
Fill cartridge with seal fluid (item 8) to force fluid
through cartridge cap bleed holes during valve shift.
Fill slowly to allow air to bleed out from piston cavity.
4
2.75” approx.
fill level
2
3
8
2
AMV for use with
moisture sensitive
materials.
5
6
1
7
