Service
8 332922D

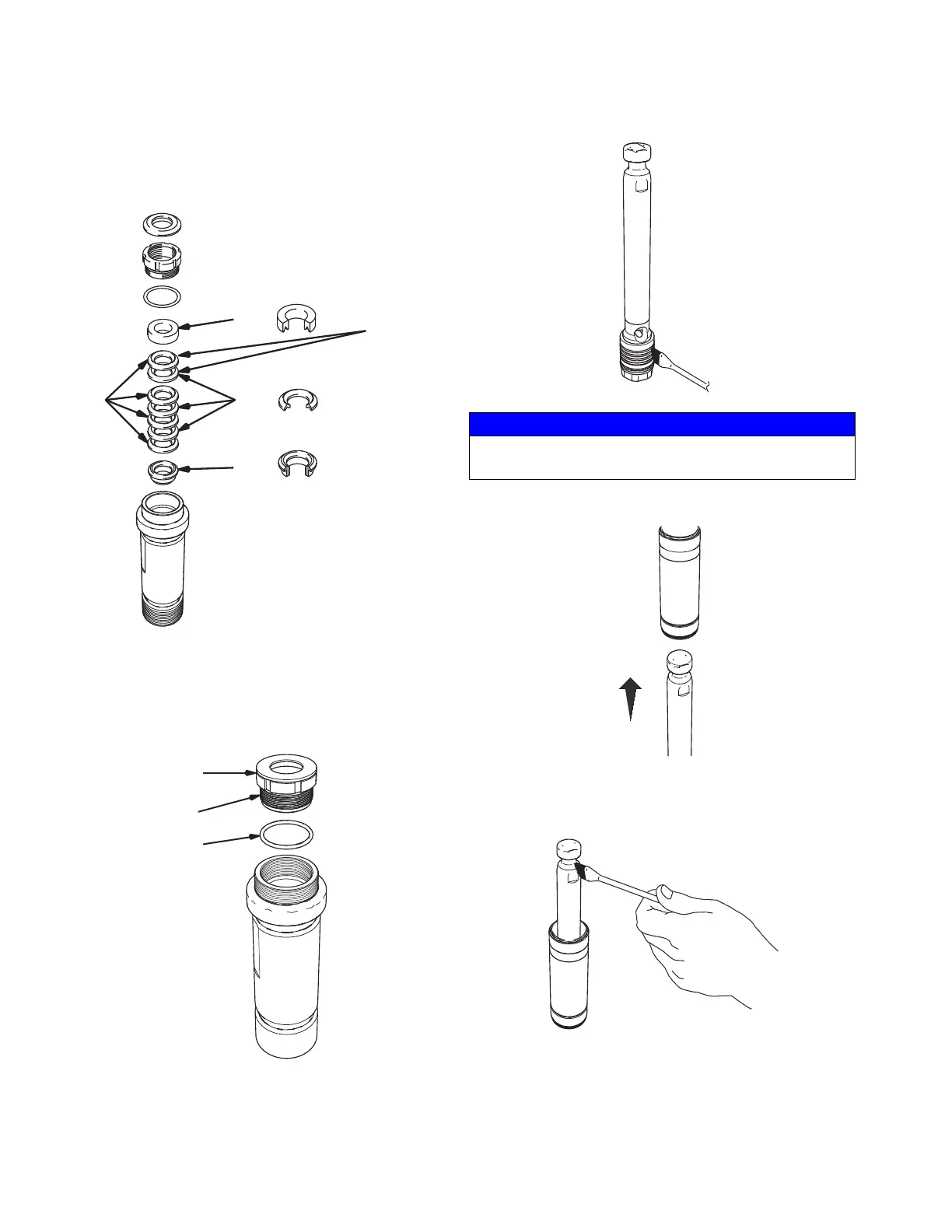

4. Soak all leather packings in SAE 30W oil for one
hour minimum prior to assembly. Place male gland
(204) in cylinder. Alternately stack UHMWPE (203)
and leather packings (223) (note orientation). Place
female gland (224) in top of cylinder seat packings.
5. Install seal (201) into packing nut (202). Install
o-ring (228) onto packing nut. Loosely install pack-
ing nut into cylinder.
6. Grease piston packings.
7. Slide piston assembly into bottom of sleeve.
8. Grease top inch or two of piston rod that will go
through the cylinder throat packings.
NOTICE
Do not slide piston assembly into top of sleeve as this
may damage piston packing.
ti7578d
ti7577b
