2. Using the top mounting bracket (109), attach the
ram junction box (108) to the ram using two screws
(114) and washers (113) as shown in Figure 11.
3. Attach the bottom mounting brackets (110, 111) with
four screws (115), nuts (116) and washers (113) as
shown in Figure 11.
4. Disconnect the wires from the disconnect block (A).
5. Remove and discard the driver junction box cover
(C) and the disconnect switch (B) from the driver.
See Figure 12.
6. Remove and discard the extrusion (D), then remove
and discard the plug (E).
7. Remove the cord grip and save it for reuse.
8. Install the electric driver (101) with the four screws
(132) and washers (133) included in the kit.
9. Install the cord grip that was removed in step 7 into
the driver junction box where the plug was removed.
See Figure 14 on page 14.
10. The power cable from the ram junction box (108) is
routed through the cable track. Run it through the
cord grip and connect it using the supplied
connectors. Connect the ground wire to one of the
two green ground terminals inside the driver
junction box.

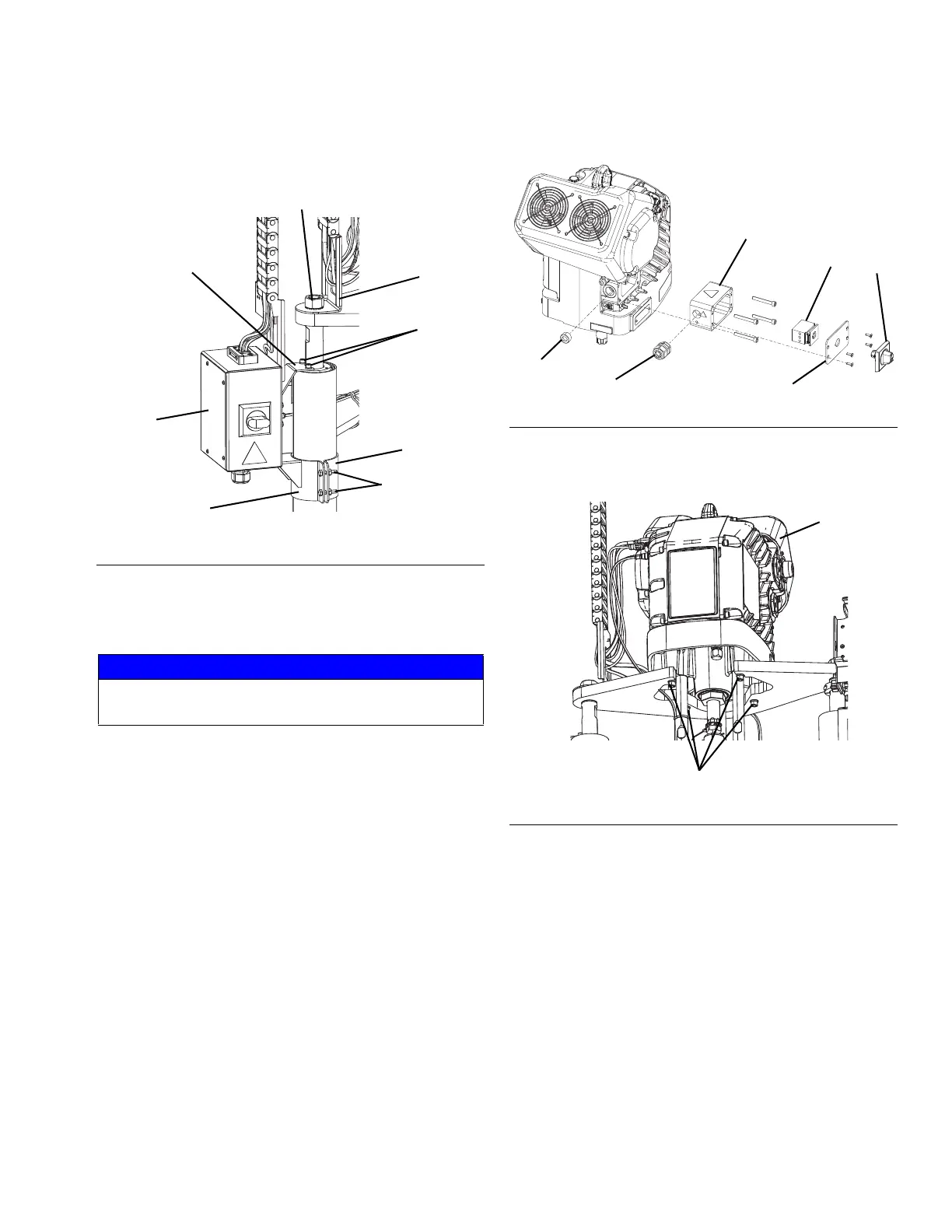

FIG. 11: Attach Ram Junction Box to the D60
NOTICE
Do not over-torque the ram junction box mounting
brackets. Over-torquing can damage the cylinder.
119
113,114
113,115,116
111
110
109
Hex Nut
108
FIG. 12: Remove Driver Junction Box
FIG. 13: Install D60 Electric Driver
