Graco G-Max 7900 - Page 12

Rollers
12 308870G
Installation
NOTE: All Steps refer to FIG. 4.
1. Install two cam follower bearings (20c).
2. Install cam follower plate (20b).
3. Install two retainer rings (20d).
4. Drive in pump pin (101) until it engages with pump
pin retaining clip (20a).
5. Install four rollers (98) and dowel pin (97).
6. Install cover assembly (24) with six lock washers (9)
and cap screws (10).

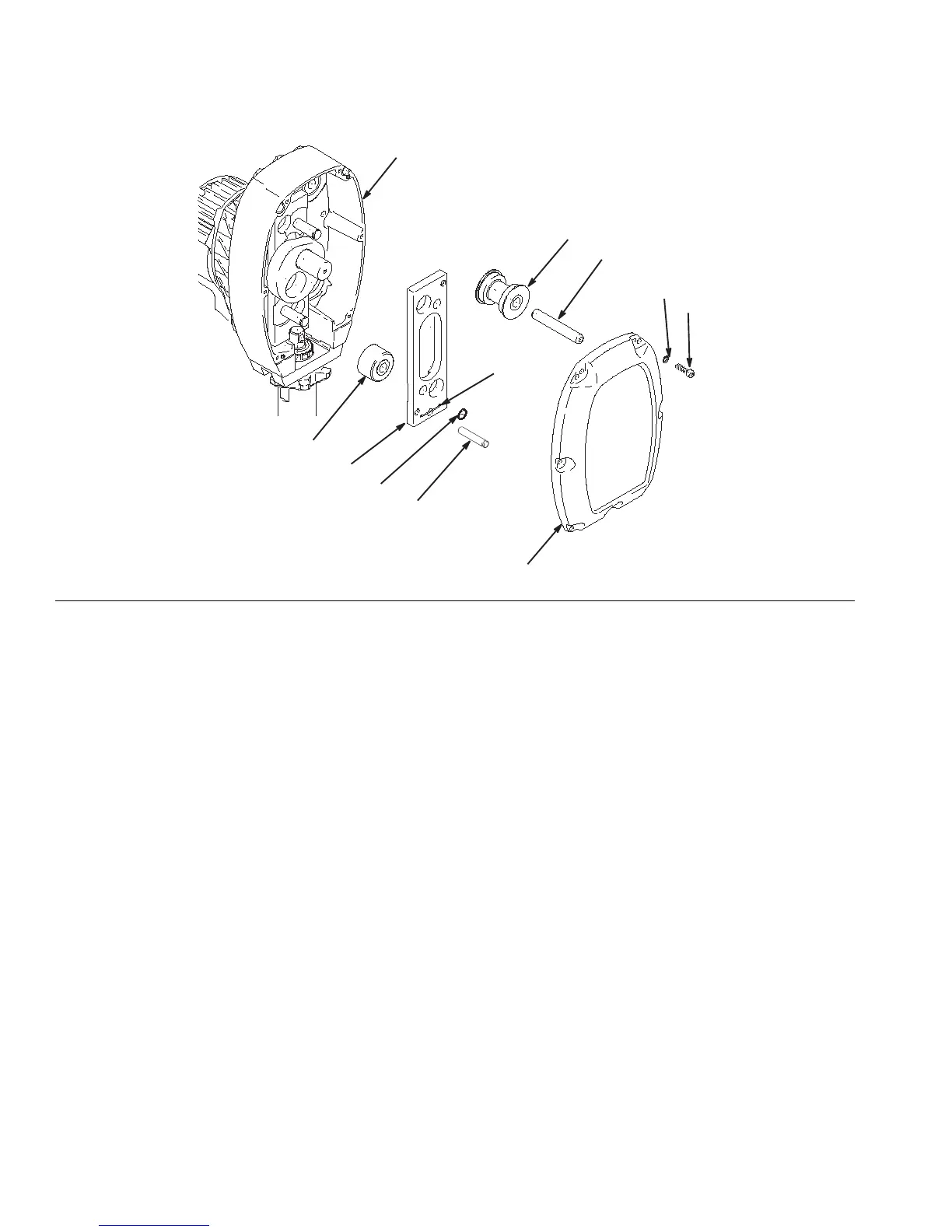

FIG. 4
9047A
101
24
10
9
97
98
20c
20
20b
20d
20a
