On / Off Switch
308870G 17
On / Off Switch
NOTE: All Steps refer to FIG. 19.
Removal
1. Relieve pressure, page 6.
2. Remove five screws (307) and cover (322).
3. Disconnect two wires (A) from ON/OFF switch
(309).
4. Press in on two retaining tabs on each side of
ON/OFF switch (309) and remove switch.
Installation
1. Install new ON/OFF switch (309) so tabs of switch
snap into place on inside of pressure control hous-
ing.
2. Connect two wires (A) to ON/OFF switch.
3. Install pressure control cover (322) with five screws
(307).

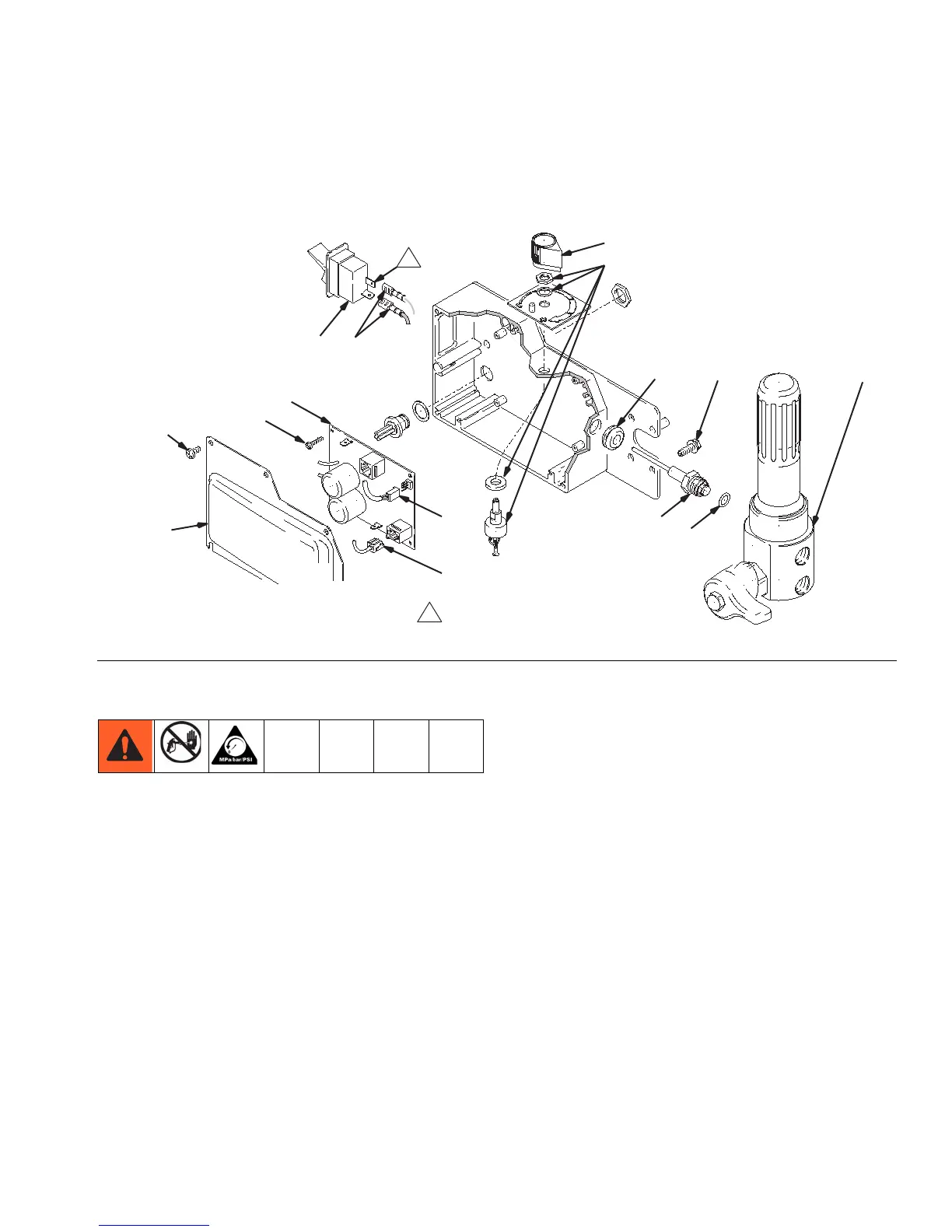

FIG. 19
322
307
A309
302
303
E
D
313
310
318z
318aa
318a
1
Locate switch terminals as shown
1
315 319
