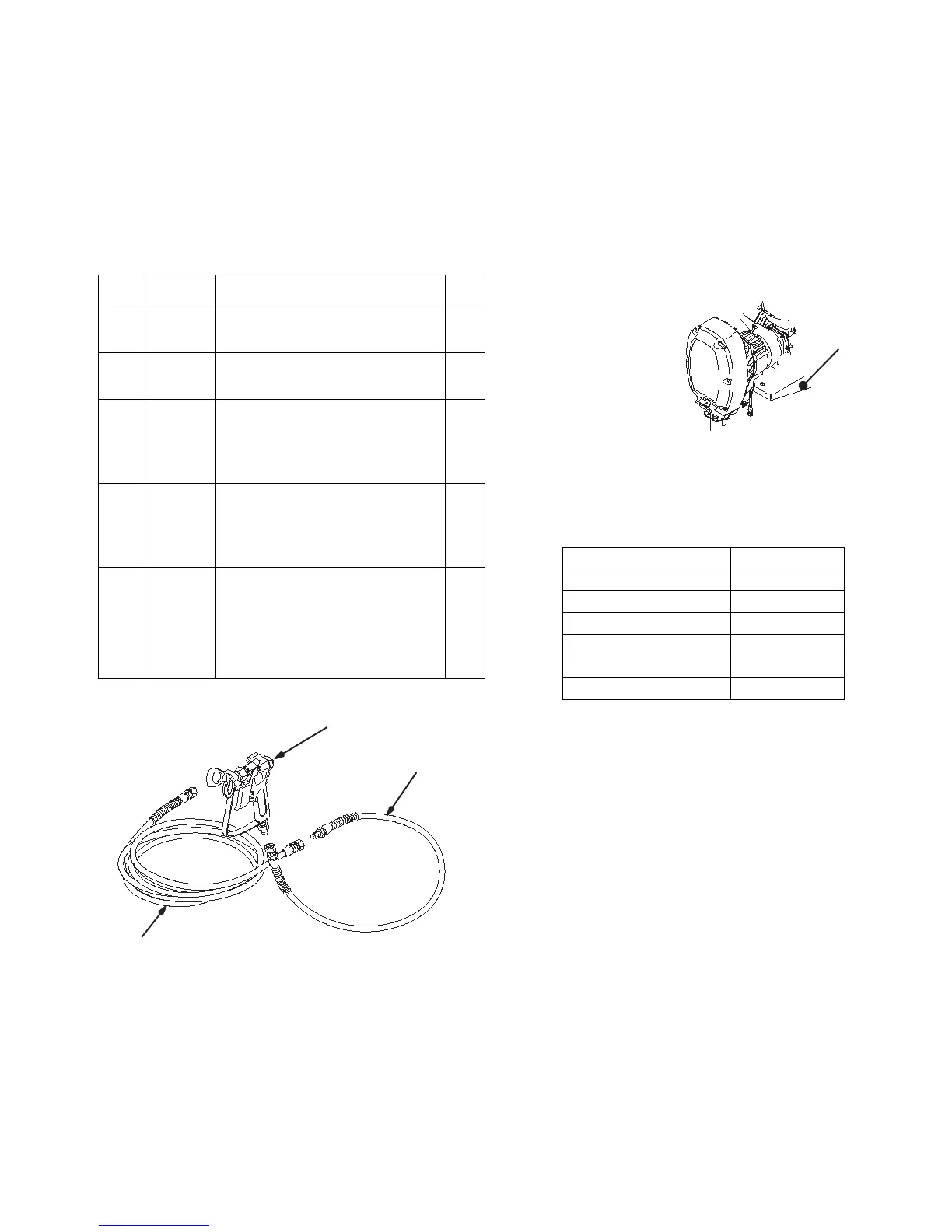

Parts List - Complete Sprayers
308870G 33
Parts List - Complete Sprayers
Models 232631, 232633
Includes 201 to 204
Accessories
Danger Labels
An English language
DANGER label is on
your sprayer. If you
have painters who do
not read English,
order one of the fol-
lowing labels to apply
to your sprayer. The
drawing shows the best placement of these labels for
good visibility.
Order the labels from your Graco distributor.
Displacement Pump Repair Kit
Packing repair kit. - GMax 7900: 240916
Ref. Part No. Description Qty
201 232631 Hi-Boy Sprayer, see Parts list
on page 26
1
232633 Lo-Boy Sprayer, See Parts list
on page 32
1
202 240797 HOSE, grounded, nylon, 3/8
in. ID; cpld 3/8 npsm(fbe); 50
foot (15 m); spring guards both
ends
1
203 238358 HOSE, grounded, nylon; 3/16.
ID; cpld 1/4 npsm(m) x 1/4
npsm(f) swivel; 3 foot (0.9 m);
spring guards both ends
1
204 220955 CONTRACTOR SPRY GUN,
includes RAC 5
™
DripLess Tip
Guard and 517-size
SwitchTip
™
, see 309091 for
parts
1
204
203
202
0160
Language Part No.
French 194931
Spanish 194932
German 194933
Greek 194934
Korean 194935
English 194317
Apply other
language here
