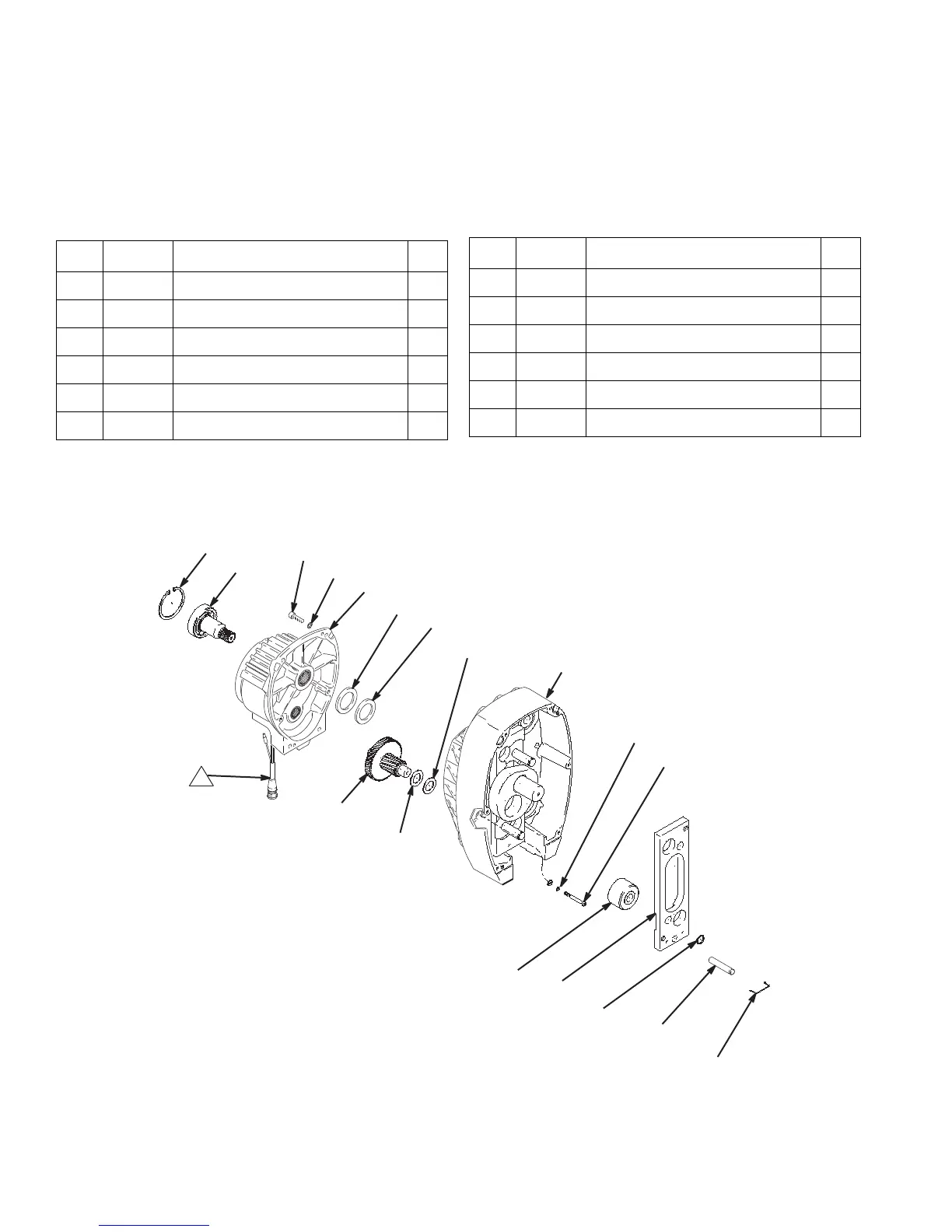

Parts List & Drawing - Pinion Assembly
24 308870G
Parts List & Drawing - Pinion Assembly
Ref No. 19 and 20
Ref No. 19: Pinion Housing Assembly 241116
Ref Part No. Description Qty
19a 241121 PINION HOUSING, coil
1
19b 105489 PIN
2
19d 241114 PINION SHAFT
19e 112770 RETAINING RING, large
20 DRIVE HOUSING
1
21a 194060 RETAINING CLIP, pump pin
1
20b 193656 CAM FOLLOWER PLATE
1
20c 114691 CAM FOLLOWER BEARING
2
20d 114828 RETAINER CLIP
2
20g 114697 WASHER
1
20h 114698 WASHER
1
101 195528 PIN
1
Ref Part No. Description Qty
10 (Ref)
9 (Ref)
20
20h
20g
18 (Ref)
19a
82 (Ref)
9 (Ref)
99 (Ref)
1
101
83 (Ref)
19d
19e
20a
20d
20c
20b
