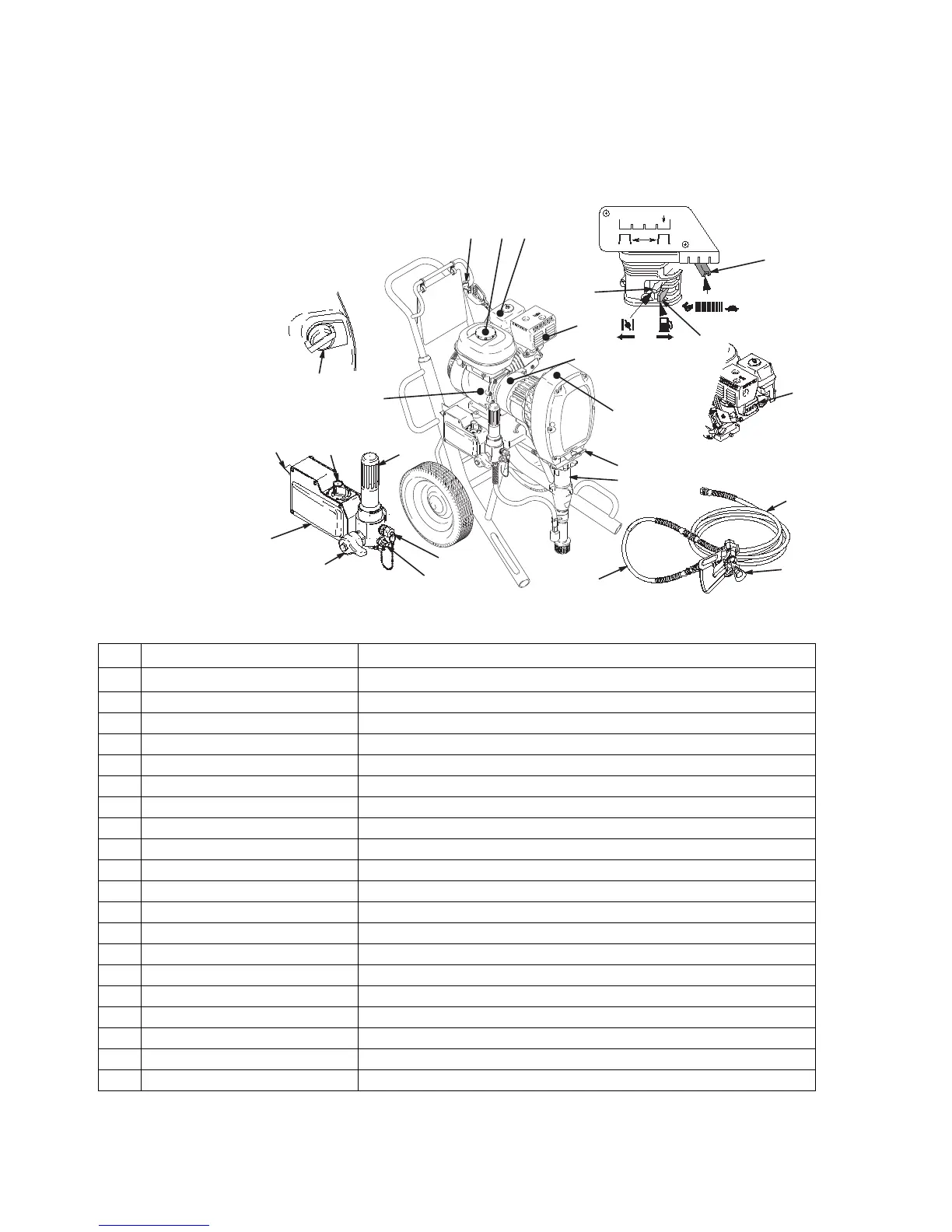

Component Identification
308870G 5
Component Identification
* For more detailed explanations of these controls, refer to the Honda Engines Owner's Manual; supplied.
A Pressure Control Switch ON/OFF, enables/disables clutch function and pressure control
B Pressure Adjusting Knob Controls fluid outlet pressure
C Air Cleaner*
Filters air entering the carburetor
D Fuel Tank*
Uses 86 octane unleaded gasoline
E Muffler*
Reduces noise of internal combustion
F Spark Plug Cable*
Routes electrical current to spark plug
G Fuel Shutoff Lever*
On/off lever to regulate fuel flow from gasoline tank to carburetor
H Choke*
Enriches air/gasoline mixture for cold starting
J Throttle Lever*
Adjusts engine speed for large or small orifice spray tips
K Engine Switch*
Enables/disables engine operation
L Secondary Fluid Outlet
Second hose and spray gun is connected here
M Pressure Control
Controls clutch cycling to maintain fluid pressure
N Primary Fluid Outlet
Hose and spray gun is connected here
P Engine*
4-cycle gasoline engine
R Clutch Housing
Transfers power from engine to drive assembly
S Drive Housing
Transfers power from clutch to displacement pump
T Displacement Pump
Provides fluid to be sprayed through spray gun
U Fluid Filter
Filters fluid between source and spray gun
V Grounding Clamp and Wire
Grounds sprayer system
W Pail Hanger
Provides a hanger for paint pail
X Drain Valve
Relieves fluid pressure when open
S
U
W
T
X
V
P
A
B
C
E
F
G
H
J
K
202 Main hose
203 Whip end hose
204 Contractor gun with RAC 5
DripLess tip guard and 517 size SwitchTip
203
204
202
M
N
L
Model 232631
R
D
9034B
