Graco G3 - Typical Installation

Installation
10 332291P

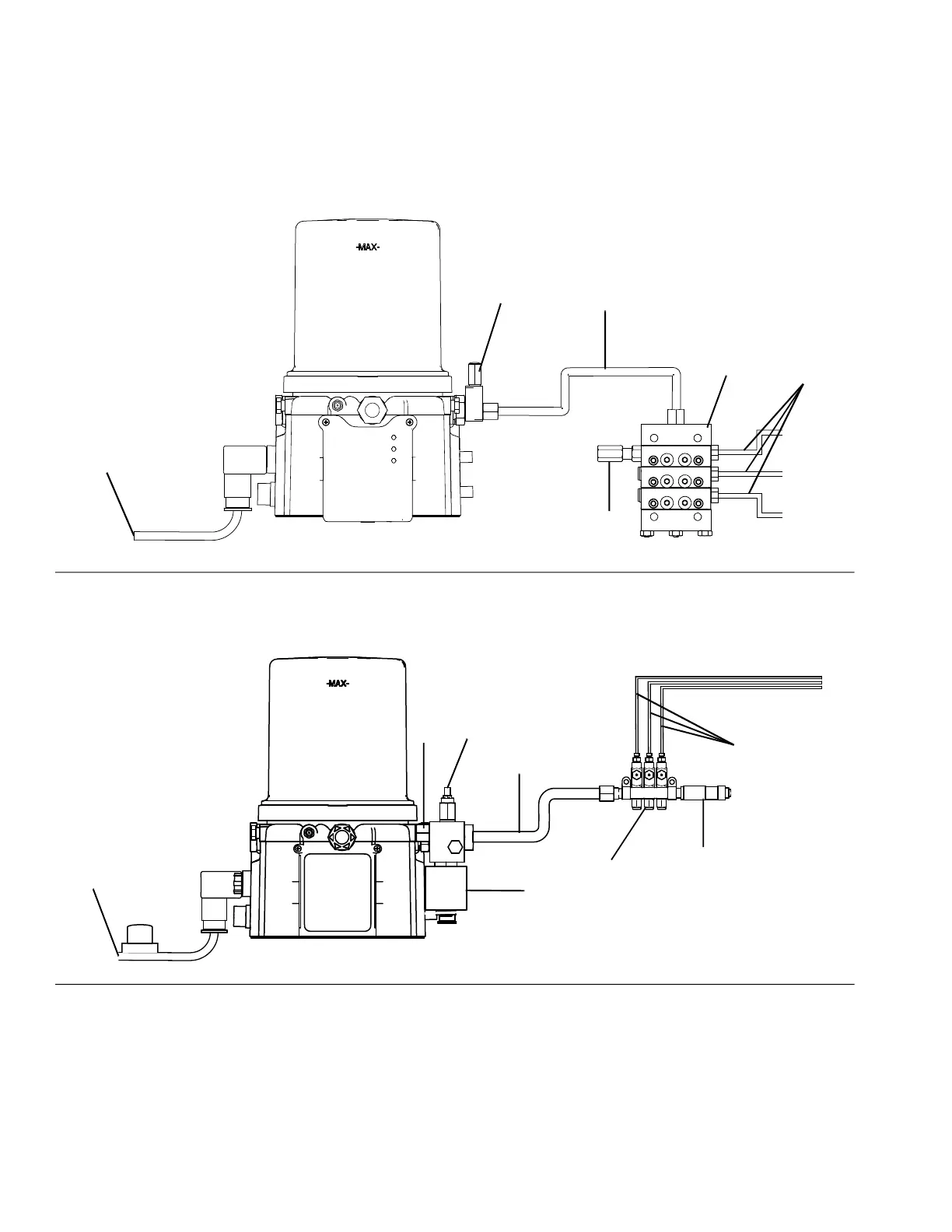

Typical Installation
Series Progressive Divider Valve
Injector Installations
Key
A Connected to fused power source
B Pressure relief valve (Not included/ required for each out-
let - user supplied. See Parts, page 35)
C Supply Hose (user supplied)
D Series progressive divider valves (Divider Installations)
- Injectors (Injector Installations)
E To lube points
F - Proximity Switch (Divider Installations)
- Pressure switch (Injector Installations)
G Vent valve (Not included / available from Graco. See
Parts, page 36.)
H Return to reservoir
FIG. 3
FIG. 4
A
B
D
E
F
C
A
B
D
E
F
H
G
C
