Graco G3 - Typical Installation - with Remote Fill Manifold

Installation
332291P 11

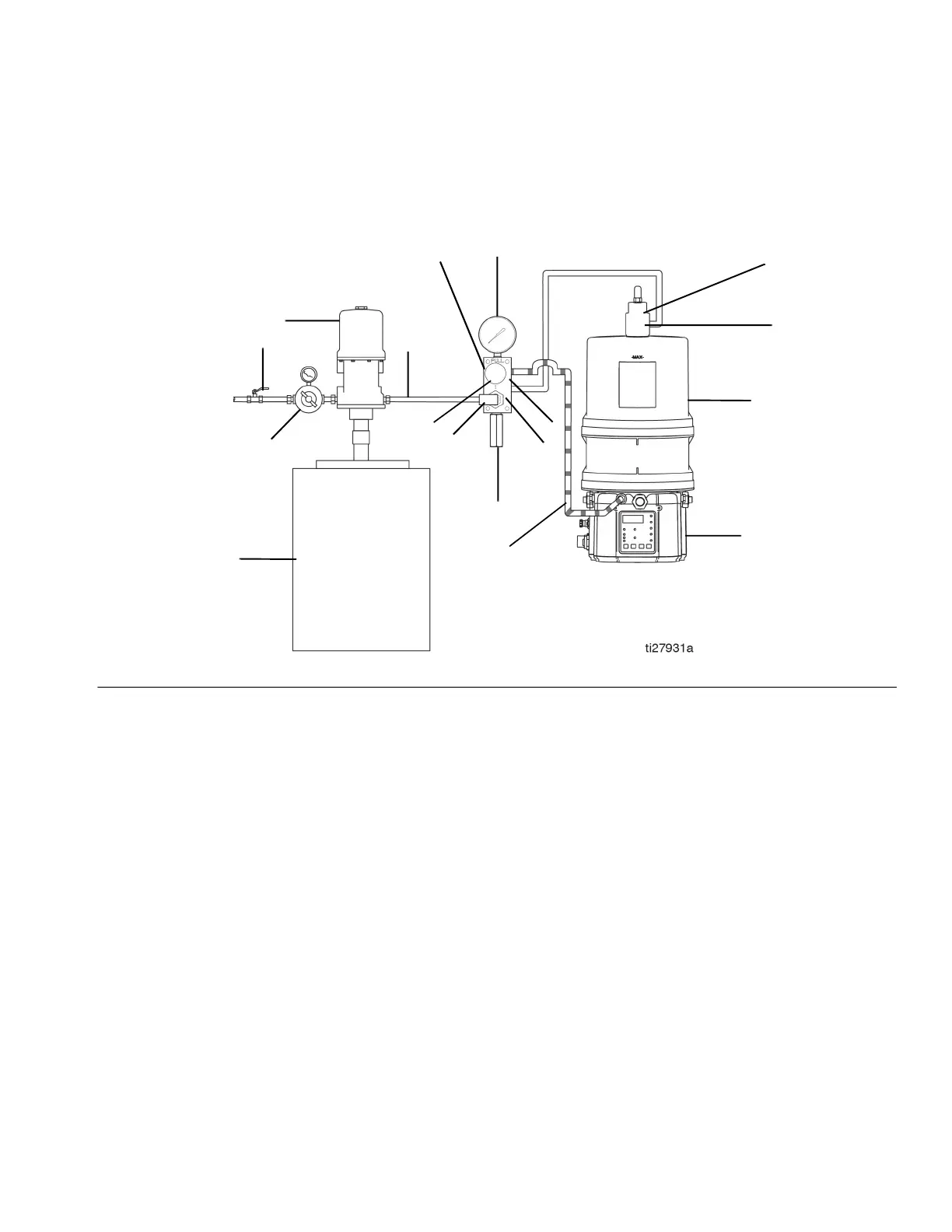

Typical Installation - With Remote Fill Manifold
The installation shown is only a guide for selecting and installing system components. Contact your Graco distributor
for assistance in planning a system to suit your needs.
Key:
A G3 Pump
B Auto-Fill Shut Off Valve
C Auto-Fill Inlet
D G3 Reservoir
E Remote Fill Reservoir
F Remote Fill Pump
G Supply Hose (user supplied)
H Air Supply to Refill Pump
J Supply Hose (user supplied)
K Pressure Relief Valve
L Drain Hose
M Fill Coupler/Inlet (quick disconnect)
N Fill Manifold❖
P Fill Manifold Outlet
Q Fill Manifold Vent Port
R Pressure Gauge
S Pressure Regulator and Gauge
T Pressure Relief Knob
❖ To relieve the stall pressure in the fill line a fill manifold (N)
must be installed in the system.
FIG. 5
E
D
C
F
P
N
K
H
J
M
L
A
R
Q
B
S
T
