Understanding the Model Number
Use the Code Sample provided below to identify each component’s location in the Model Number. The options for
each component that make up the code are provided on the lists below.
NOTE: Other pump configurations are available that are not documented in this manual. Contact Graco Customer
Service or your local Graco distributor for assistance.
Code a: Pump Fluid Type
• G = Grease
• A = Oil
Code bb: Power Source
• 12 = 12 Volts DC
• 24 = 24 Volts DC
• AC = 100 - 240 Volts AC
Code cc: Operation Control
• NC = No Controller
Code dd: Reservoir Capacity (Liters)
• 2L = 2 Liters
• 4L = 4 Liters
• 8L = 8 Liters
• 12 = 12 Liters
• 16 = 16 Liters
Code e: Reservoir Feature
• F = Follower Plate Installed
• 0 = No Follower Plate
• A = Auto-Fill Shut Off
• L = Top Fill
• H = Hammer Pump
Code f: Low Level Option
• A = External Low Level
• 0 = No Low Level monitoring
Code gg: Options
• 00 = No Options
• 06 = Low Level in CPC
Code h, i, j, k, m, n, p, q
NOTE: Codes h - q relate to a specific location on the
G3 pump. See F
IG. 1 for these locations.
• C = CPC
• D = DIN
• L = Low Level
• 0 = Not populated
G 3 - - N C 0 0 0 0 0 0
Code Sample: a b b c c - d d e f g g - h i j k m n p q

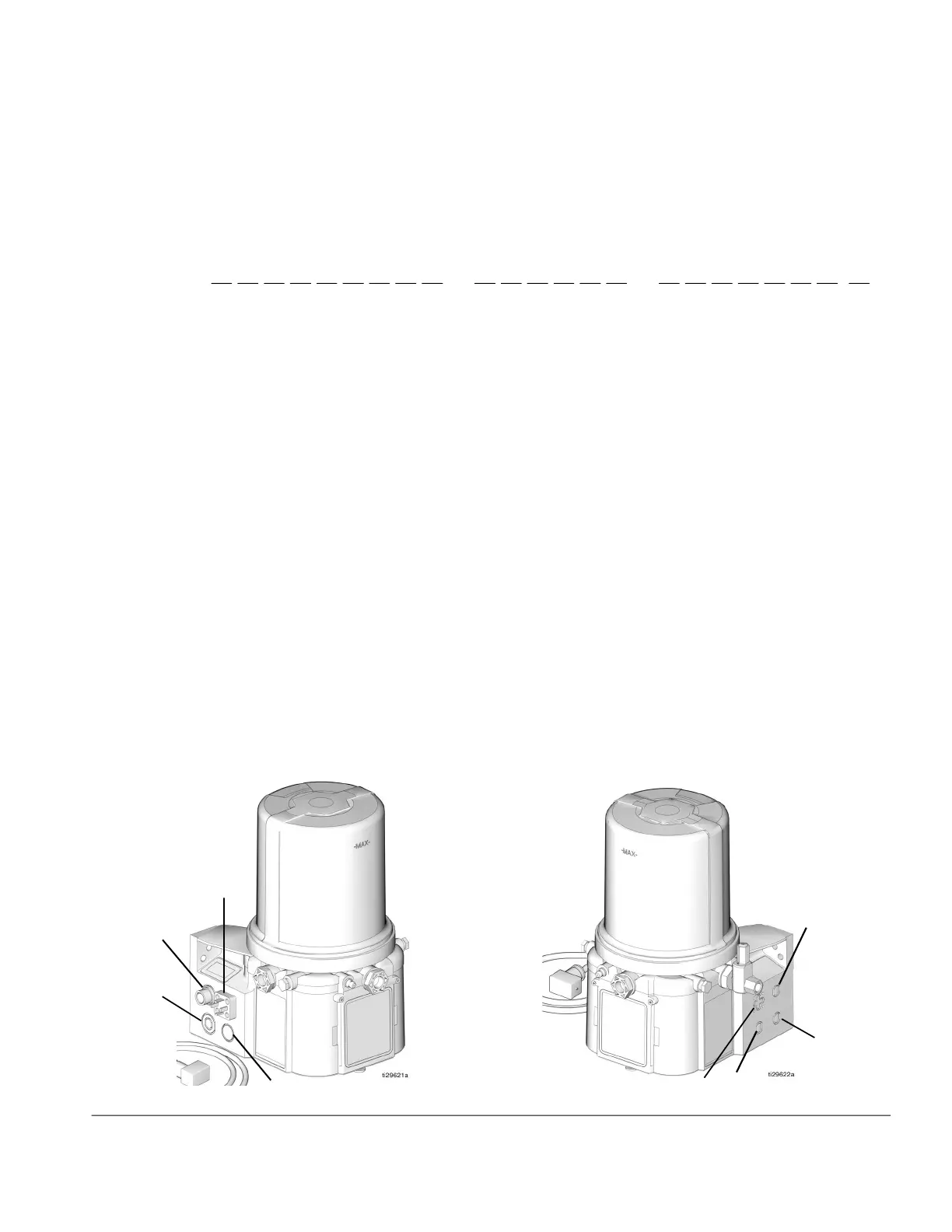

FIG. 1
m
n
p
q
i
k
j
h
