8. Grease the inside surfaces of the shift saddle (14)
and install it as shown in Fig. 14. Hold the link
assembly firmly in place and install the screw (15).
Torque to 7 to 9 in-lb (0.8 to 1.0 N-m). Install the
o-ring (19) on the cover (2).
9. Reinstall the air valve as explained on page 16.

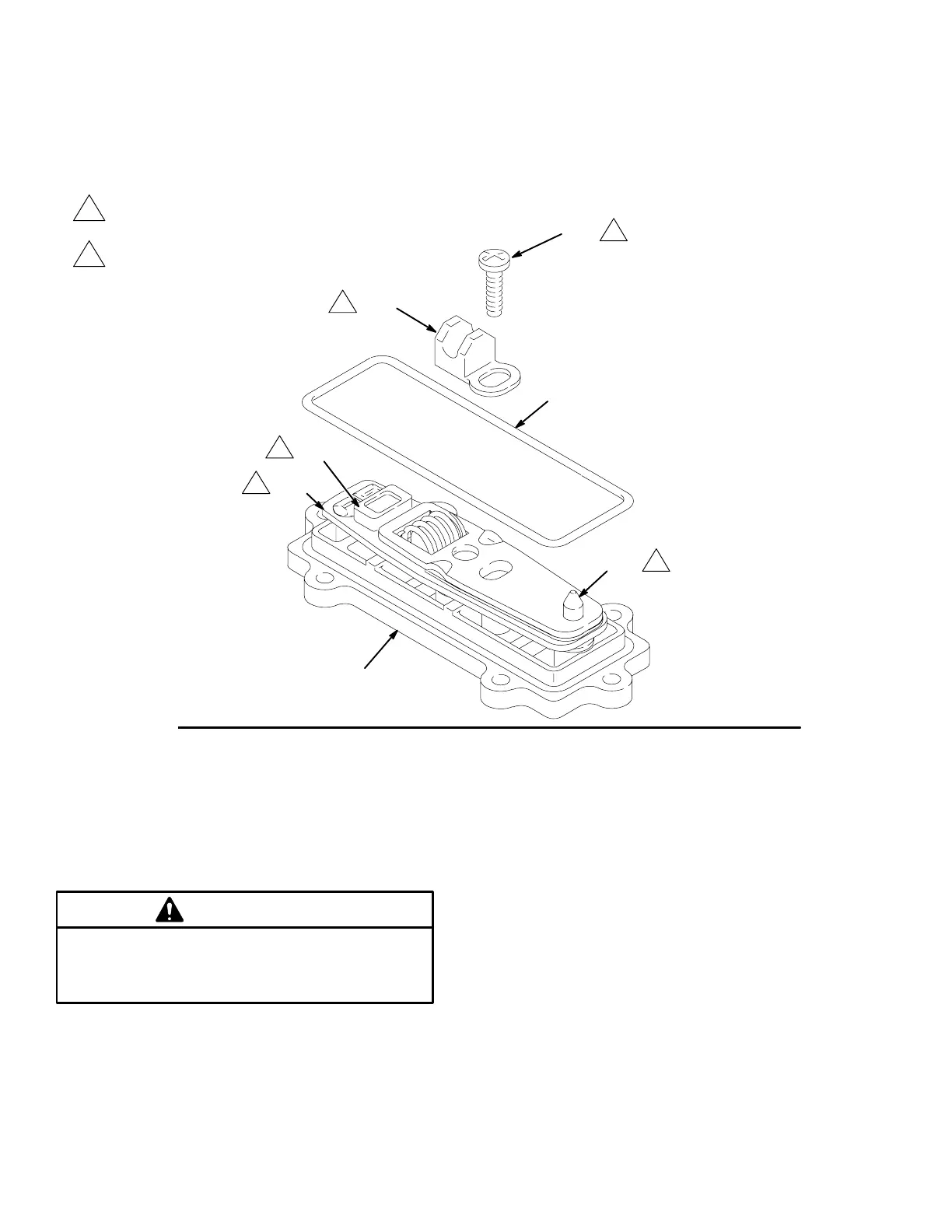

Fig. 14
1
2
Apply grease (26{).
Torque to 7 to 9 in-lb (0.8 to 1.0 N-m).
{2
{22
{5
19{
{14
15{
21{
1
1
1
1
2
7506A
CAUTION
Do not over-torque the manifold bolts (104). Doing
so may cause the nuts (106) to spin in the hous-
ings, damaging the cover (101).
