Graco Husky 307 - Technical Data - PTFE Diaphragm Pumps

308553 33
Technical Data
Pumps with PTFE Diaphragms
Maximum fluid working pressure 100 psi (0.7 MPa, 7 bar). . .
Air pressure operating range 20 to 100 psi. . . . . . . . . . . . . . . .
(0.14 to 0.7 MPa, 1.4 to 7 bar)
Maximum air consumption 5.5 SCFM (see chart). . . . . . . . . .
Maximum free flow delivery 6.5 gpm (24.6 l/min). . . . . . . . . . .
Maximum pump speed 330 cpm. . . . . . . . . . . . . . . . . . . . . . . . .
Maximum suction lift 7 ft (2.1 m) dry; 12 ft (3.7 m) wet. . . . . .
Maximum size pumpable solids 1/16 in. (1.6 mm). . . . . . . . . .
Sound power level,
at full flow: (100 psi [0.7 MPa, 7 bar) 85 dBa. . . . . . . . . . . .
Sound power level,
at 70 psi (0.48 MPa, 4.8 bar) and 1 gpm (3.8 lpm) 78 dBa.
Operating temperature range 40 to 150_ F. . . . . . . . . . . . . . . .
(4.4 to 65.5_ C)
Air inlet size 1/4 npt(f). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid inlet and outlet size. 3/8 npt(f). . . . . . . . . . . . . . . . . . . . . .
Wetted parts Vary by model. See pages 28 and 30.. . . . . . . .
Acetal models include acetal with conductive sst fibers.
Non-wetted external parts acetal, polyester (labels),. . . . . . . .
glass-filled polypropylene with conductive SST fibers,
303, 304 and 316 stainless steel
Weight Acetal Pumps: 5.25 lb (2.4 kg). . . . . . . . . . . . . . . . . . . .
Polypropylene Pumps: 4.75 lb (2.2 kg)
* Sound power level measured per ISO standard 9614–2.
Loctite
r is a registered trademark of the Loctite Corporation.
Santoprener is a registered trademark of the Monsanto
Company.
0
20
40
60
80
100
120
012345678
TEST CONDITIONS
Pump tested in water with inlet submerged.
(7.6) (15.2) (22.7) (30.3)
(2.8)
(1.4)
(4.2)

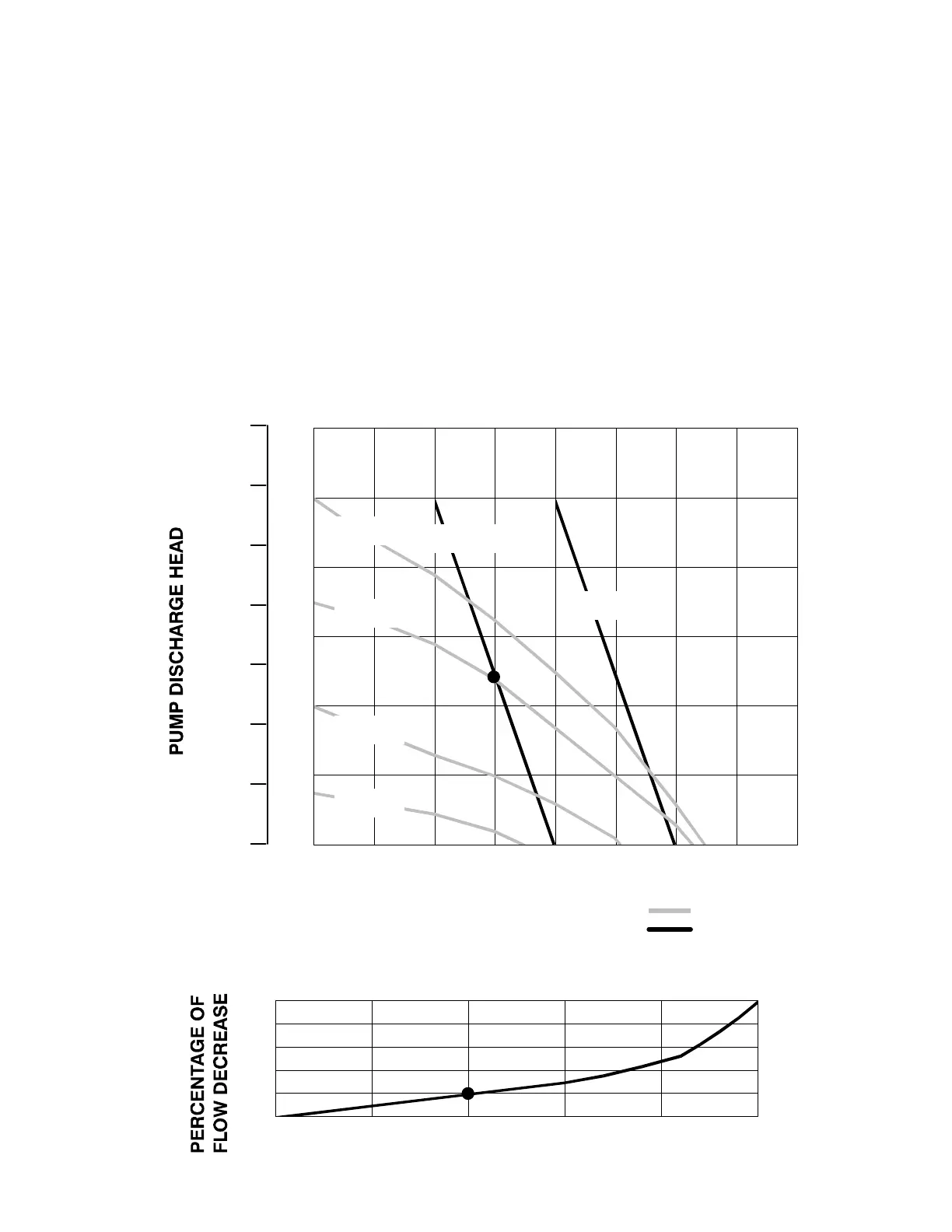

KEY FLUID PRESSURE AND FLOW
SCFM AIR CONSUMPTION
100 psi air
(7 bar)
Example of Finding Pump Air Consumption and Air Pressure at a Specific Fluid Deliv-
ery and Discharge Head: To supply 3 gpm (11.4 liters) fluid flow (horizontal scale) at 50 psi
(3.5 bar) discharge head pressure (vertical scale) requires 3 scfm (.084 m
#/min) air con-
sumption at 70 psi (4.9 bar) inlet air pressure.
FLUID FLOW GPM (lpm)
70 psi air
(4.9 bar)
40 psi air
(2.8 bar)
5 scfm
(0.14 m
#/min)
psi
(bar)
feet
(meters)
280
(85.3)
240
(73.2)
200
(61.0)
160
(48.8)
120
(36.6)
80
(24.4)
40
(12.2)
0
0
20
40
60
80
100
0 5 10 15 20 25
PUMPING RATE DECREASE AT DIFFERENT SUCTION LIFTS
SUCTION LIFT IN FEET (METERS)
(1.52) (3.05) (4.57) (6.1) (7.62)
EXAMPLE: At a suction lift of 10 ft (3.05 m), the pump flow rate will be decreased by 20 percent.
(5.6)
(7.0)
(8.4)
20 psi air
(1.4 bar)
3 scfm
(.084 m
#/min)
(3.8) (11.4) (19.0) (26.5)
