Graco Husky 307 - Pump Physical Dimensions

308553 35

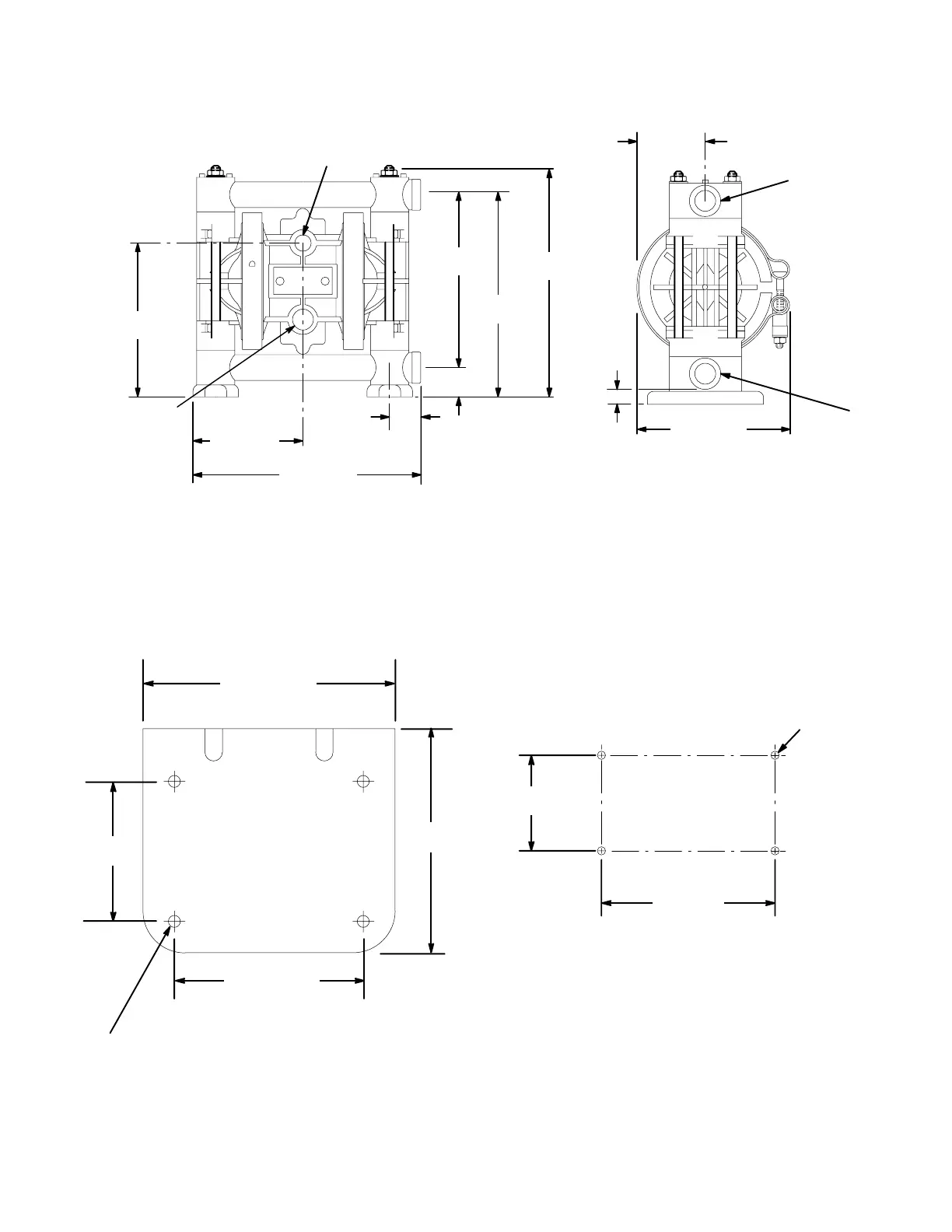

Dimensions
PUMP MOUNTING HOLE PATTERN
SIDE VIEW
5 in.
(127 mm)
0654
WALL BRACKET 224-835
Four 0.438 in. (11 mm) dia. holes
(to mount bracket to wall)
9.0 in.
(228.6 mm)
6.74 in.
(171.2 mm)
8 in.
(203 mm)
(WALL VIEW)
07316B
0.28 in.
(7 mm)
Diameter (4)
3.50 in.
(89 mm)
6.30 in.
(160 mm)
7.24 in.
(184 mm)
FRONT VIEW
1.13 in.
(28.5 mm)
1.06 in.
(27 mm)
1/4 npt(f)
Air Inlet
3/8 npt(f)
Air Exhaust
(muffler included)
8.13 in.
(206.5 mm)
8.12 in.
(206.5 mm)
6.05 in.
(153.5 mm)
3.14 in.
(80 mm)
6.18 in.
(157 mm)
.66 in.
(17 mm)
3/8 npt(f)
Fluid Inlet
5.3 in.
(134.5 mm)
2.53 in.
(64.5 mm)
3/8 npt(f)
Fluid Outlet
