28 308553
Parts
Air Motor Parts List (Matrix Column 2)
Digit
Ref.
No.
Part No. Description Qty
3 1 187705 HOUSING, center;
polypropylene;
see page 29
1
2{ 187706 COVER, air valve;
polypropylene
1
3{ 187722 SPRING, compression;
sst
1
4{ 187853 STOP, link; acetal 1
5{ 192675 CUP, valve; acetal 1
6{ 187728 SPRING, compression;
sst
1
7{ 187730 COLLAR, detent; sst 1
8{ 111629 BALL, detent; carbide 1
9{ 187726 BEARING, link; acetal;
see page 29
1
10 111631 SCREW, thread-forming;
1/4–20; 0.375 in. (9.5
mm) long; see page 29
2
11 112933 MUFFLER; see page 29 1
12 187719 SEAL, plate, valve;
buna-N; see page 29
1
13 187720 PLATE, valve; sst;
see page 29
1
14{ 187718 SADDLE, shift; acetal 1
15{ 111630 SCREW, thread-forming;
10–14 size; 0.75 in.
(19 mm) long; see below
and page 29
7
Digit
Ref.
No.
Part No. Description Qty
16{ 187724 LINK, actuator; sst 1
17{ 188175 SPACER, link; acetal 1
18{ 111750 WASHER, plain; sst 1
19{ 111624 O-RING; buna-N 1
20{ 111625 O-RING; buna-N 1
21{ 187727 SHAFT, reset; sst 1
22{ 192526 LINK, detent; sst 1
23} 191781 SHAFT, diaphragm; sst;
see page 29
1
26{ 111920 GREASE, general pur-
pose; 0.375 oz. (10.5 g);
not shown
1
27 100179 NUT, hex; 10–24;
see page 29
1
28 102790 SCREW; 10–24;
0.75 in. (19 mm) long;
see page 29
1
29 100718 LOCKWASHER, int.
tooth; no. 10; see page
29
1
30} 113704 PACKING, u-cup; fluoroe-
lastomer
2
31} 191779 BEARING; acetal 2
{ These parts are included in Air Valve Kit 239952, which
may be purchased separately. The kit includes only one
screw (15), shown below, and a tube of grease (26).
} These parts are included in Diaphragm Shaft Kit 239014,
which may be purchased separately.
01431A

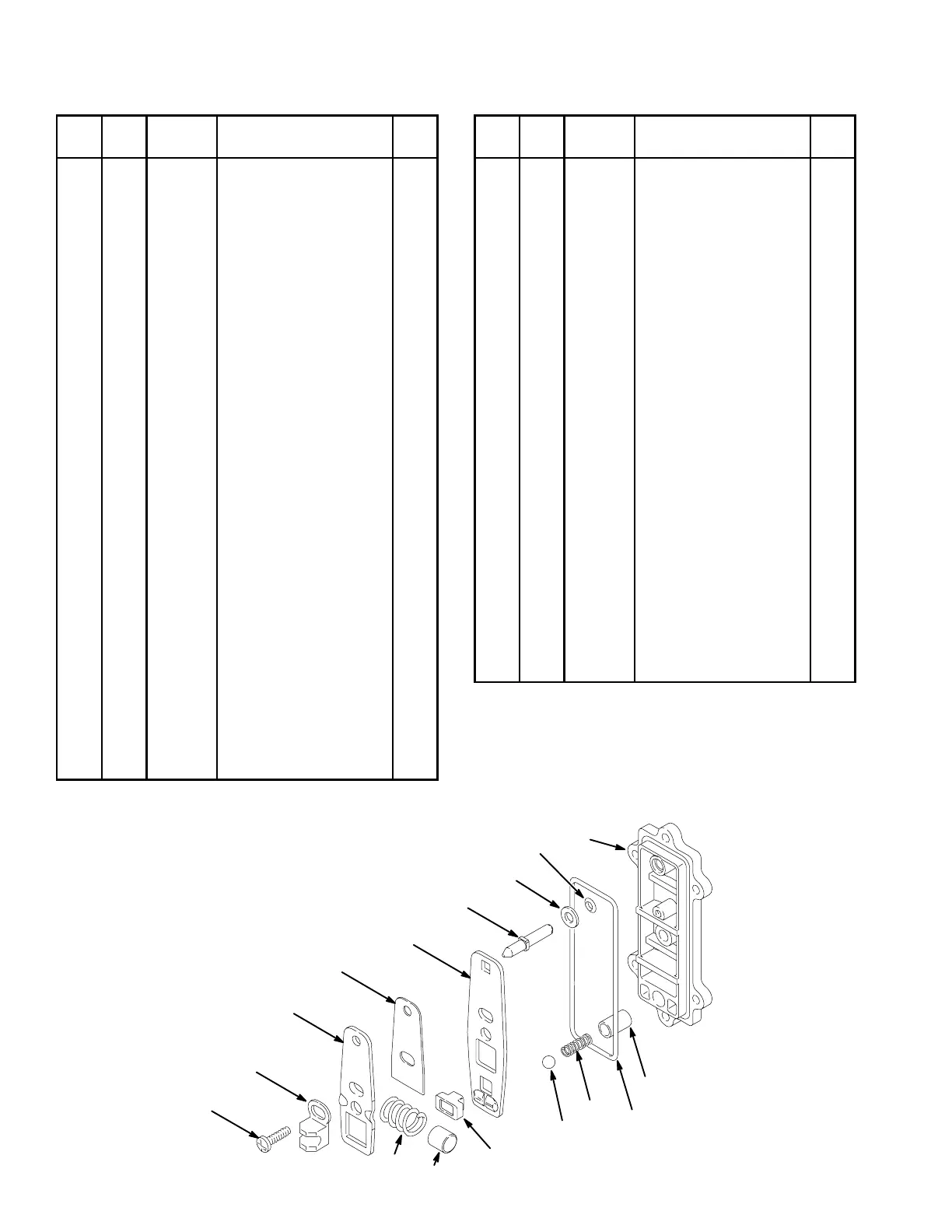

{2
7{
{4
{18
{16
{20
{21
{22
{17
{14
{15
{3
5{
8{
6{
19{
