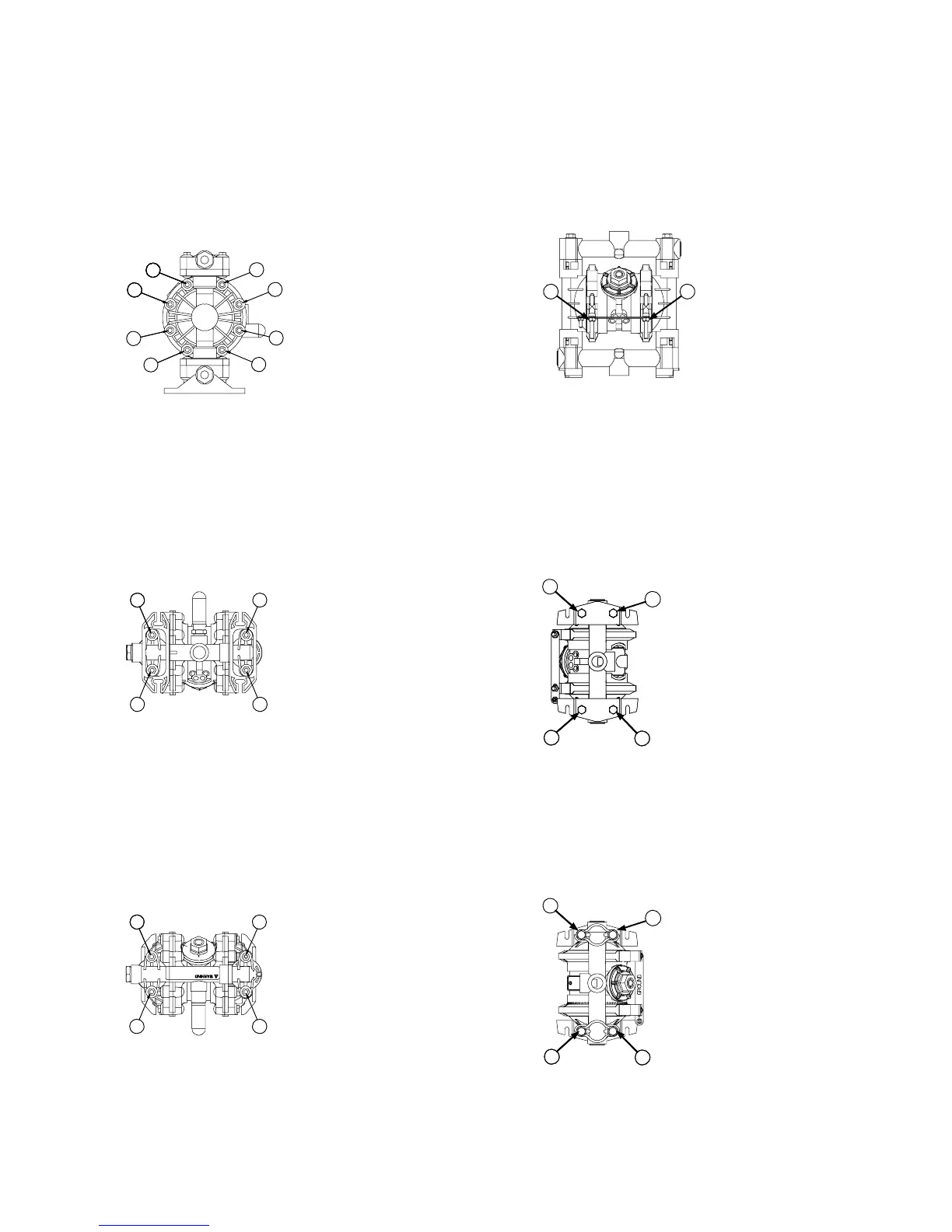

Torque Sequence
Always follow torque sequence when instructed to torque fasteners.
Husky 515
1. Left/Right Fluid Covers
Torque bolts to 80–90 in–lb (9–10 Nm)
1111
5
7
2
3
88
6
4
SIDE VIEW
2. Inlet Manifold
Torque bolts to 80–90 in–lb (9–10 Nm)
11
9
10
12
BOTTOM VIEW
3. Outlet Manifold
Torque bolts to 80–90 in–lb (9–10 Nm)
13
15
16
14
TOP VIEW
Husky 716
1. Left/Right Fluid Covers
Torque bolts to 80–90 in–lb (9–10 Nm)
FRONT VIEW
1
2
2. Inlet Manifold
Torque bolts to 80–90 in–lb (9–10 Nm)
BOTTOM VIEW
3
4
6
5
4
6
3. Outlet Manifold
Torque Bolts to 80–90 in–lb (9–10 Nm)
TOP VIEW
7
9
10
8
