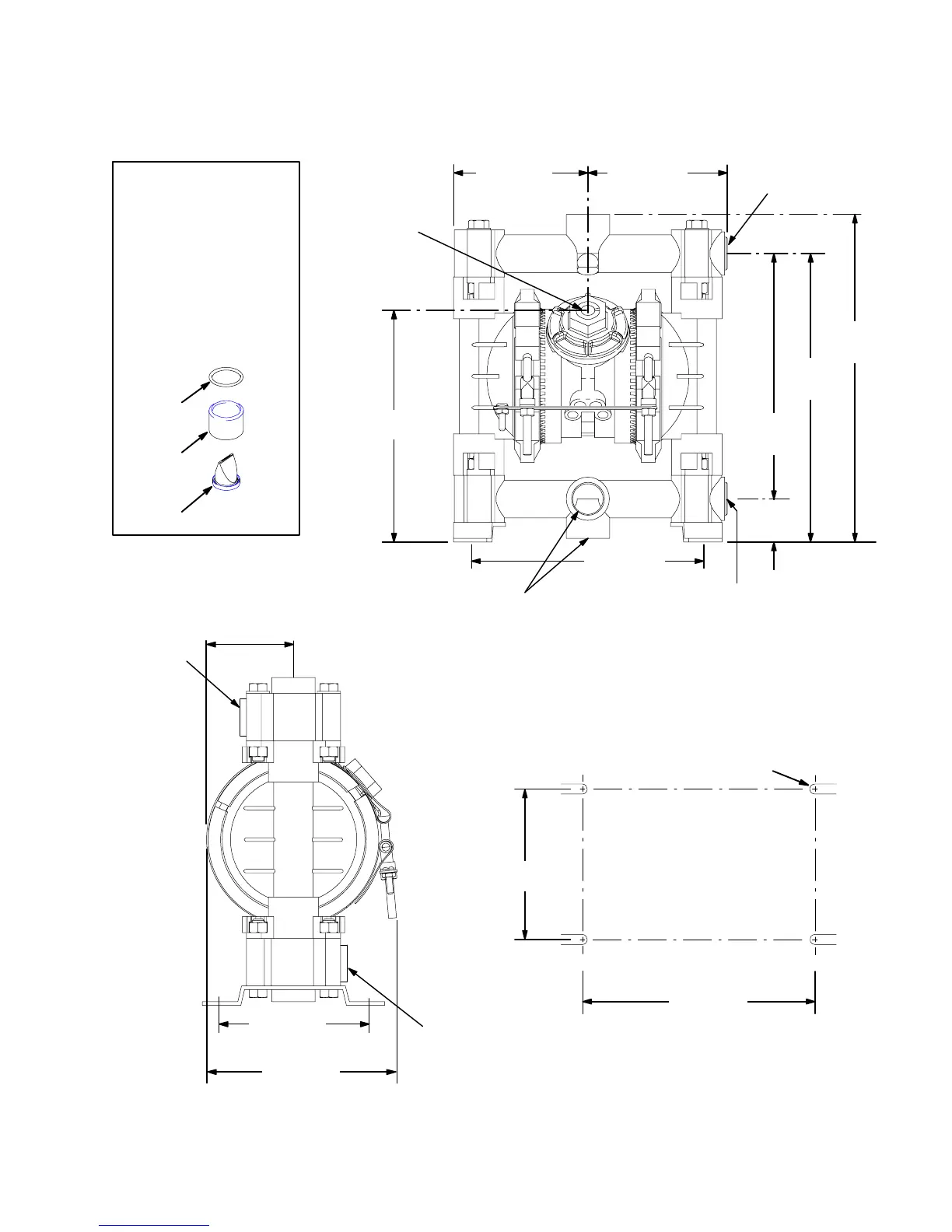

Husky 716 Dimensions
1.38 in.
(35.1 mm)
FRONT VIEW
SIDE VIEW
1/4 npt(f)
Air Inlet
6.04 in.
(153.4 mm)
7.37 in.
(187.2 mm)
PUMP MOUNTING HOLE PATTERN
Four 0.28 in.
(7.1 mm)
Diameter Slots
4.44 in.
(112.8 mm)
4.25 in.
(108.0 mm)
10.43 in.
(264.9
mm)
9.18 in.
(233.2
mm)
7.80 in.
(198.1
mm)
6.62 in.
(168.1 mm)
2.76 in.
(62.5 mm)
4.29 in.
(109.0 mm)
4.29 in.
(109.0 mm)
6.62 in.
(168.1 mm)
3/4 npt(f)
or bspt(f)
Fluid Inlets *
3/4 npt(f), bspt(f), or bspp(f)
Fluid Outlet *
9078A
* Pumps with duckbill
check valves are shipped
with the inlet manifold on
top and the outlet manifold
on the bottom. To make
the inlet manifold on the
bottom and the outlet
manifold on the top, rotate
each of the four duckbill
assemblies vertically 180
as shown below.
202
201
139
3/4 npt(f)
or bspt(f)
Fluid Inlets *
3/4 npt(f)
or bspt(f)
Fluid Outlets *
Note: Bottom port open on 243305,
243306, 243307, and 246485 only.
3/4 npt(f), bspt(f), or bspp(f)
Fluid Outlet *
