Graco Husky 515 - Performance Charts; Fluid Outlet Pressure

32 308981
Husky 515 and 716 Performance Charts
0
20
40
60
80
100
0246810121416
(7.6) (15.2) (22.7) (30.3) (37.9) (45.4) (53.0) (60.6)

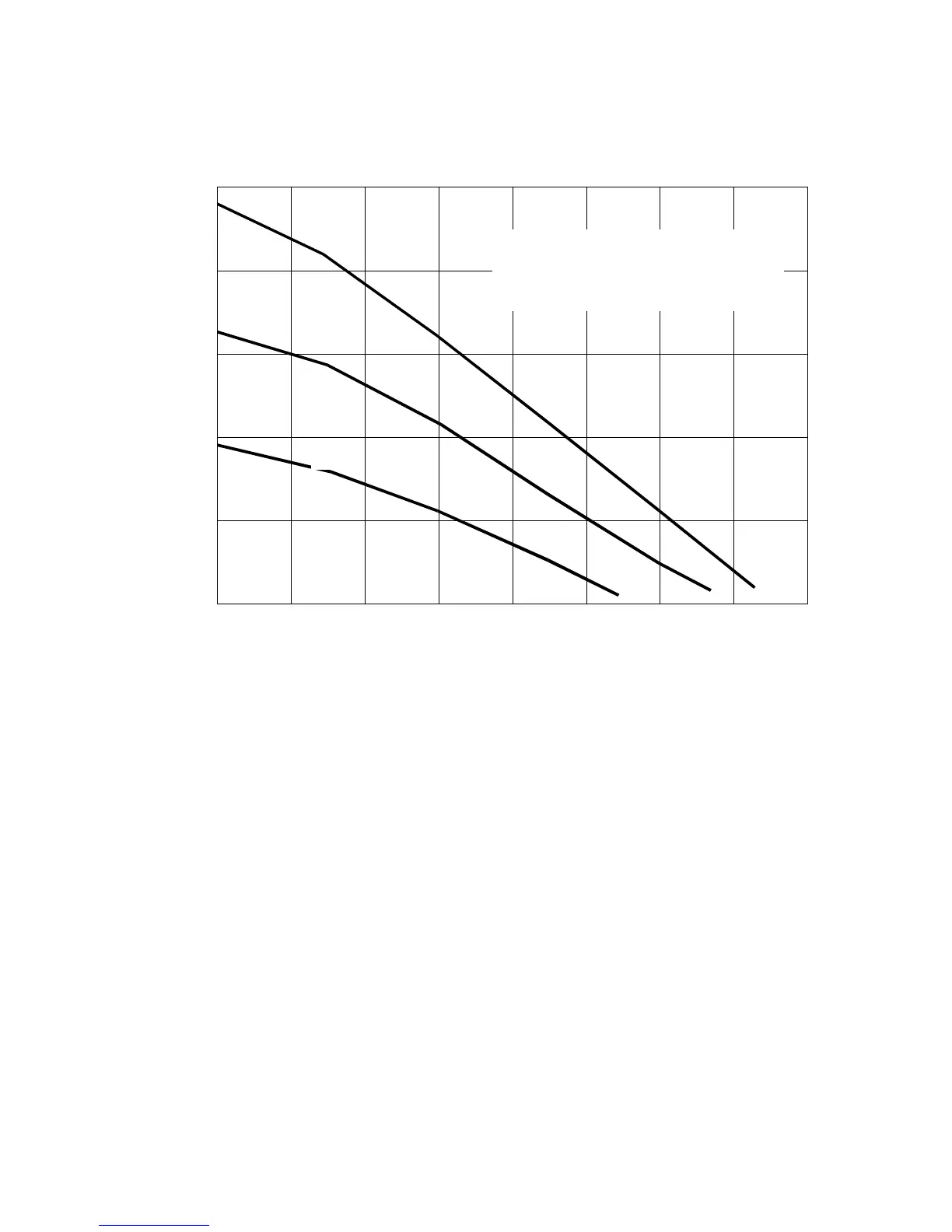

Fluid Outlet Pressure
Test Conditions: Pump tested in water with inlet submerged.
To find Fluid Outlet Pressure (psi/MPa/bar) at a
specific fluid flow (gpm/lpm) and operating air
pressure (psi/MPa/bar):
1. Locate fluid flow rate along bottom of chart.
2. Follow vertical line up to intersection with selected
fluid outlet pressure curve.
3. Follow left to scale to read fluid outlet pressure.
FLUID FLOW––gpm (lpm)
FLUID OUTLET PRESSURE––psi (MPa, bar)
(0.7, 7)
(0.55, 5.5)
(0.41, 4.1)
(0.28, 2.8)
(0.14, 1.4)
Fluid Pressure Curves
A at 100 psi (0.7 MPa, 7 bar) air pressure
B at 70 psi (0.48 MPa, 4.8 bar) air pressure
C at 40 psi (0.28 MPa, 2.8 bar) air pressure
A
B
C
