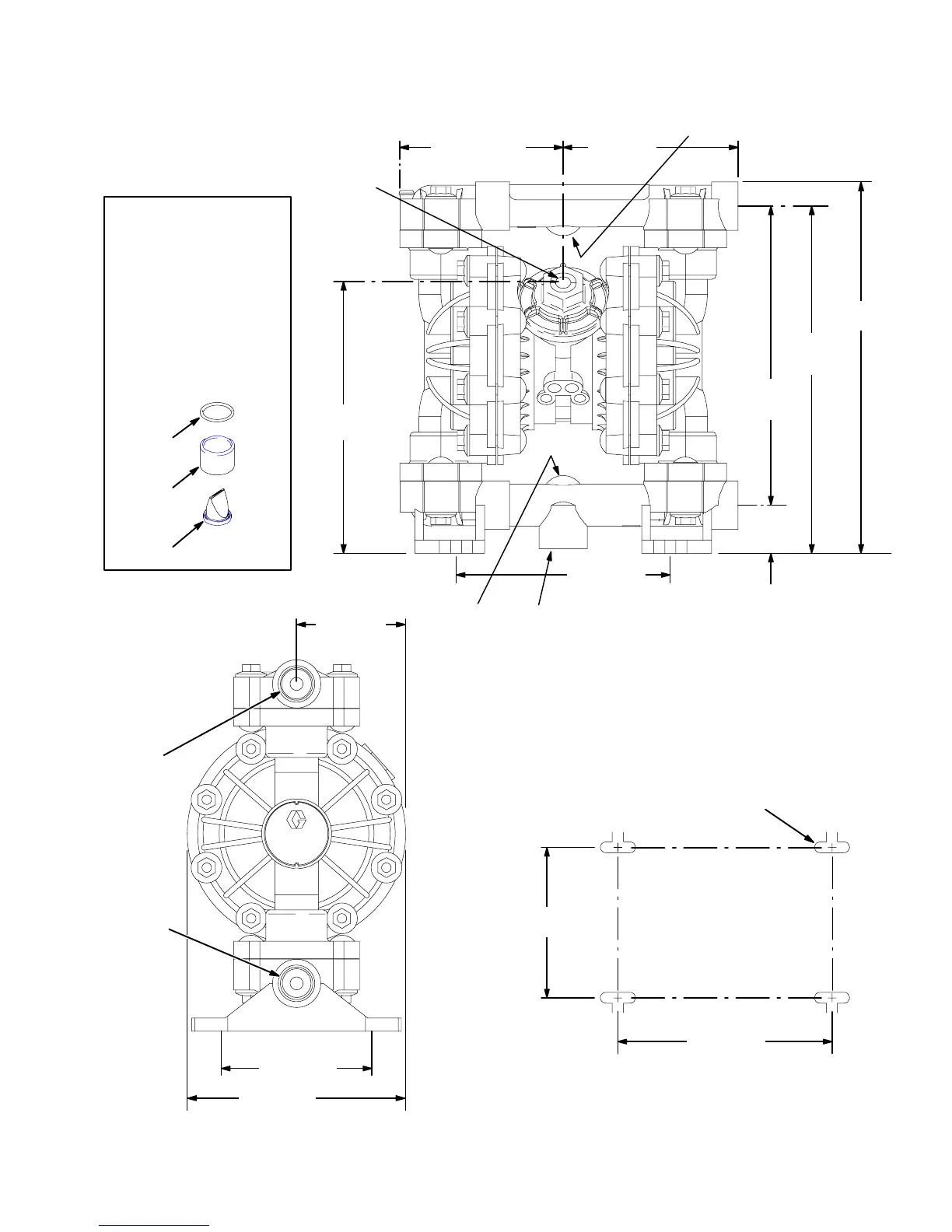

Husky 515 Dimensions
1.38 in.
(35.1 mm)
FRONT VIEW
SIDE VIEW
1/4 npt(f)
Air Inlet
6.25 in.
(158.8 mm)
7.75 in.
(196.9 mm)
PUMP MOUNTING HOLE PATTERN
4.30 in.
(109.2 mm)
3/4 npt(f) or
bspt(f)
Fluid Outlet *
Four 0.30 in.
(7.6 mm)
Diameter Slots
5.01 in.
(127 mm)
4.70 in.
(119 mm)
10.63 in.
(270.0 mm)
9.94 in.
(252.5
mm)
8.56 in.
(217.4
mm)
6.12 in.
(155.4 mm)
3.13 in.
(79.5 mm)
4.30 in.
(109.2 mm)
6.12 in.
(155.4 mm)
1/2 npt(f) or
bspt(f)
Fluid Inlet *
1/2 npt(f) or bspt(f) Fluid Outlet *
3/4 npt (f)
or bspt(f)
Fluid Inlet *
9077A
3/4 npt(f) or
bspt(f)
Fluid Inlet *
* Pumps with duckbill
check valves are shipped
with the inlet manifold on
top and the outlet manifold
on the bottom. To make
the inlet manifold on the
bottom and the outlet
manifold on the top, rotate
each of the four duckbill
assemblies vertically 180
as shown below.
202
201
139
Note: Bottom port open on
241564, 241565, and 246484 only.
