Installation
KEY
A Pump
C Electrically conductive air supply line
D Air line quick disconnect
H Fluid drain valve (required)
K Electrically conductive fluid supply hose
L Fluid suction line
Y Ground wire (required; see page 8
for installation instructions)
9074A
Fig. 2
H
J

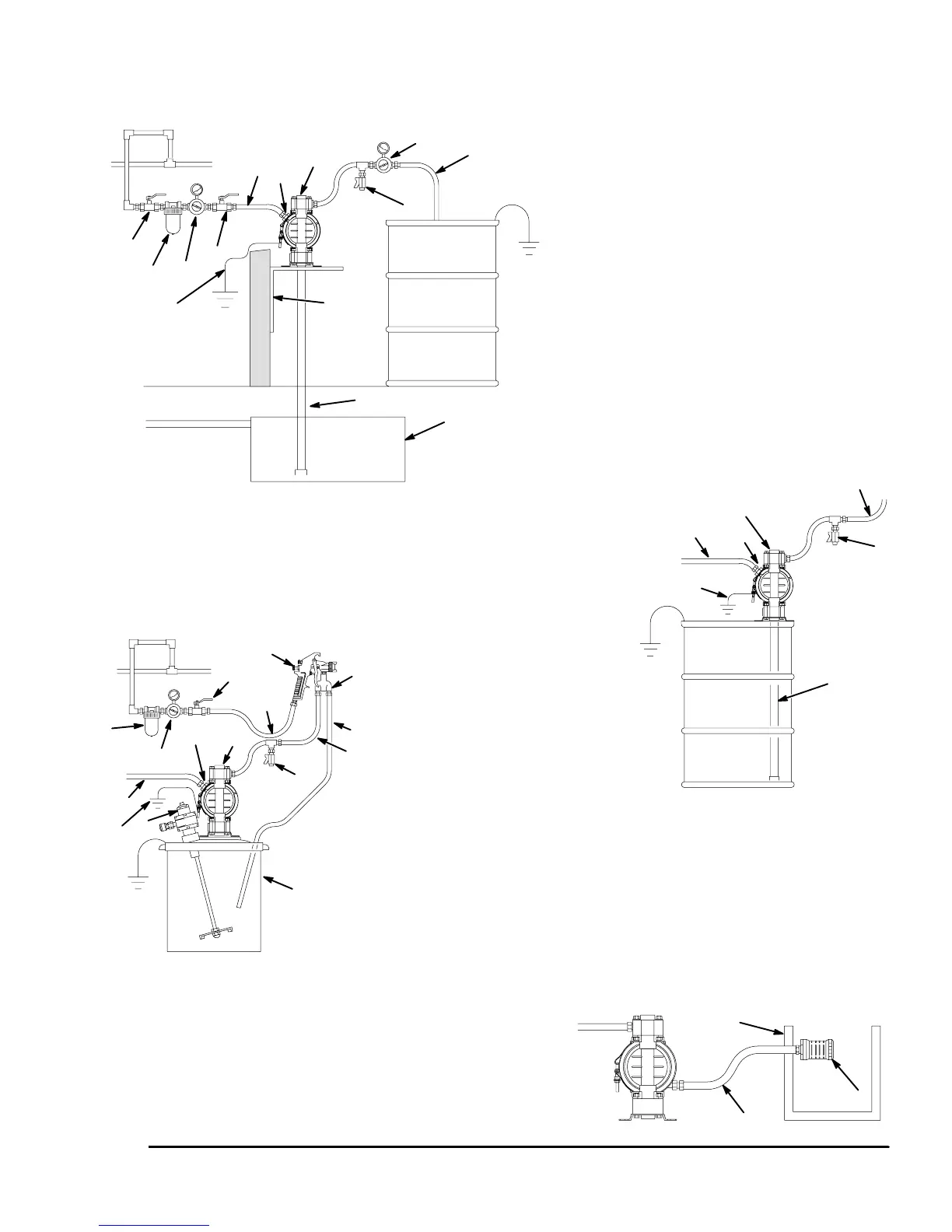

ABOVE-GROUND TRANSFER INSTALLATION
A
C
D
K
L
M
N
Y
E
9075A
H
55-GALLON BUNG PUMP INSTALLATION
A
C
D
K
L
Y
9076A
AIR SPRAY INSTALLATION
A
E
K
P
R
S
T
U
V
Y
H
C
D
KEY
A Pump
B Bleed-type master air valve
(required for pump)
C Electrically conductive
air supply line
D Air line quick disconnect
E Master air valve (for accessories)
F Air line filter
G Pump air regulator
H Fluid drain valve (required)
J Fluid regulator (optional)
K Electrically conductive
fluid supply hose
L Fluid suction line
M Underground storage tank
N Wall mounting bracket
Y Ground wire (required; see page 8
for installation instructions)
KEY
A Pump
C Electrically conductive air line to pump
E Gun air line shutoff valve
F Air line filter
G Gun air regulator
H Fluid drain valve (required)
K Electrically conductive fluid supply hose
P Circulating valve
R Electrically conductive air line to gun
S Air spray gun
T Electrically conductive fluid return line
U 5-gallon pail
V Agitator
Y Ground wire (required; see page 8
for installation instructions)
F
G
B
F
All wetted and non-wetted pump parts must be
compatible with the fluid being pumped.
KEY
W Muffler
X Electrically Conductive Air Exhaust Hose
Z Container for Remote Air Exhaust
W
X
Z
04054
VENTING EXHAUST AIR
G
