Setup
1. Read
and follow the warnings on pages 4 and 5 be
-
fore
installing or operating this sprayer
.

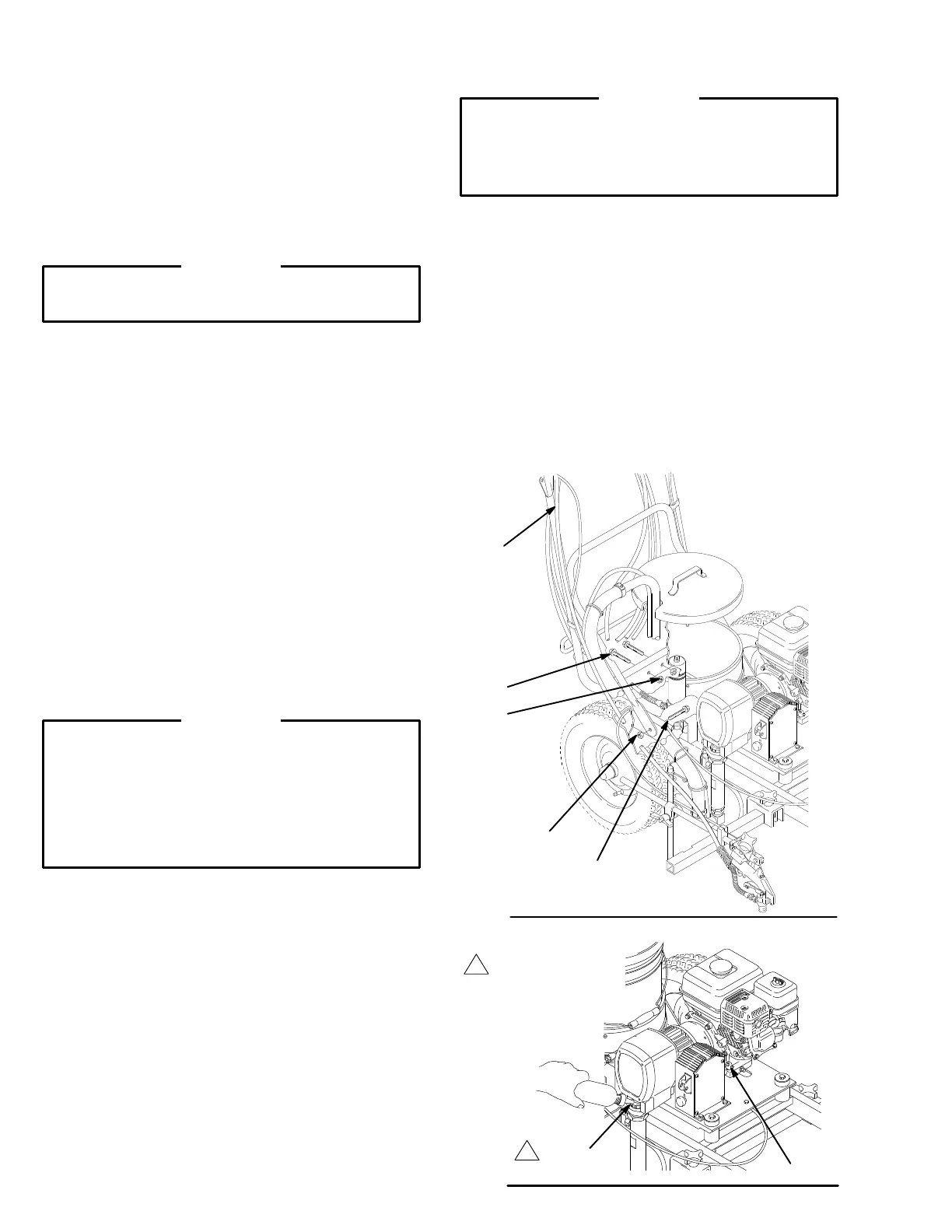

2. Unpack the Line Lazer . Carefully raise the handle
(19)
to a vertical position. Four screws (39) and lock
-
nuts (40) are packed in a bag. Install the two rear
screws (39A) and finger tighten the nuts (40A). In-
stall
one screw (39B) and nut (40B) on each side of
the handle. Firmly tighten all four nuts. See Fig. 1
.
CAUTION
When
raising the cart handle (19), be sure no cables
are
caught on the frame or become kinked.
3. T
o install a second gun and hose, see page 12.
4. Fill
the packing nut/wet–cup (216) 1/3 full with Graco
Throat Seal Liquid (TSL), supplied, and keep it filled,
to
help extend the pump life. See Fig. 2
.
5. Check
the engine oil level.
Refer to the Honda engine
manual,
supplied. This is a summary of the informa
-
tion:
Remove one
of the oil fill plugs (A); the oil should
be
almost overflowing. See Fig. 2
. Add
oil as neces
-
sary. Also read the Maintenance section on page
23.
Recommended
engine
oil: Use a high–quality
, deter
-
gent oil, SAE 10W–40, classified “FOR SER VICE
SE
or SF”.
6. Ground
the sprayer
.
Proper grounding is essential to
maintaining an electrically safe system. Also read
and
follow
FIRE OR EXPLOSION
HAZARD
on page
5.
WARNING
Ground
the sprayer whenever it is used indoors,
either as a moving line striper or as a stationary
sprayer
. Floors in most factories are coated, which
causes them to be poor electrical conductors. This
increases the risk of hazardous static electric
discharge, which can result in serious bodily injury
,
fire or explosion and property damage.
Whenever you flush: connect the ground clamp
(159)
to a true earth ground.
Using as an outdoor striper: Be sure the static
chain
attached to the bottom of the cart drags on the
ground
to help dissipate static electricity
. Ground the
sprayer to a true earth ground if specified by your
local
electrical code.
Indoor
spraying:
Ground the sprayer whenever the
sprayer is used indoors. The ground wire supplied
with the sprayer is not long enough to allow much
operator movement. Therefore, the operator must
provide
a longer ground wire or provide some other
method
of ef
fective electrical
grounding as specified
by
your local electrical code.
7. Provide
adequate ventilation when spraying
indoors.
WARNING
If
the Line Lazer is used indoors, you must vent the
exhaust to the outdoors or provide
adequate
ventilation as specified by your local code. This is
to reduce the risk of carbon monoxide poisoning.
8.
Fill the gas tank. See
Fueling
on page 1
1.
9. Flush the pump to remove the lightweight oil which
was
left in the pump
to protect it from rust. Follow the
Flushing
on page 13.
10. Prepare the paint according to the manufacturer ’s
recommendations.
Remove any skin
that may have
formed.
Stir the paint to mix pigments.
Strain
the paint through a fine nylon mesh bag
(avail
-
able at most paint dealers) to remove particles that
could
clog the filter or spray tip. This is an important
step
toward trouble–free spraying.
39A
39B
40B
40A
19
Fig. 1
02491
216
0008
Fig. 2
Keep
filled with TSL
A
To Next Page
