Engine
1. Working
under the mounting plate (25) of the cart,
re
-
move
the screw (51), lockwasher (132) and washer
(50) which hold the clutch housing (61) to the cart.
See
Fig. 39.
2. Still working under the mounting plate, remove the
two locknuts (40), and then pull the screws (63) out
of the base of the engine. Disconnect the red wire
from the engine lead (A). Disconnect the black and
white
wires (58) from the field. Pull the wires
carefully
through
the grommets (24) before removing the en
-
gine.
See Fig. 39 and 40.
3. Lift
the
engine carefully and place it on a work bench.
4. Remove
the
Field
and W
iring Harness, Clamp
and
Clutch
Housing
, as instructed
on pages 36 and 37.
5. Skip
ahead to
Reassembly
,
page 38, Step 1.
NOTE:
All service to the engine must be performed by
an authorized HONDA dealer
.
50
132
51
67
59
61
40
63
104
25
0045

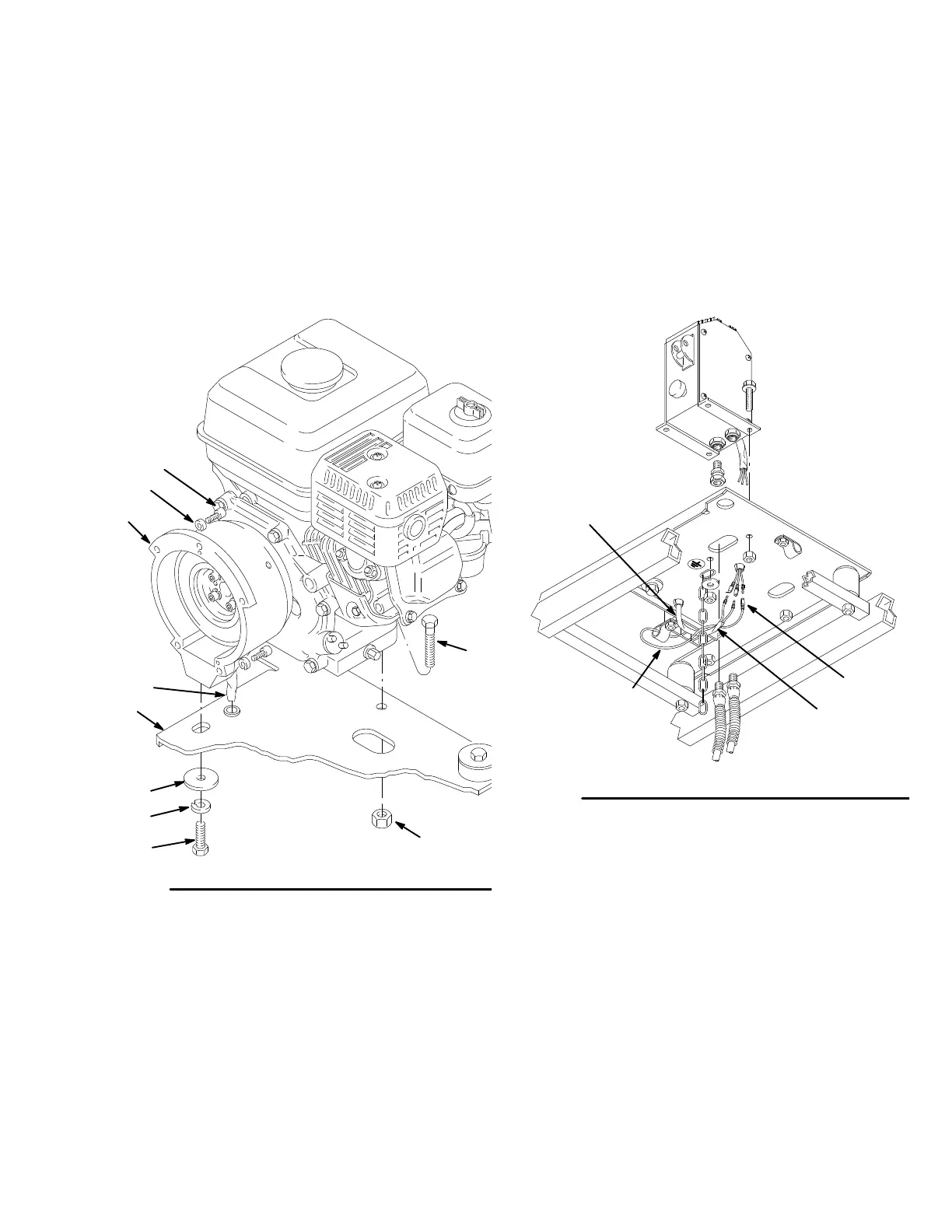

Fig. 39
Fig. 40
VIEW
FROM UNDER ENGINE MOUNTING PLA
TE
RED
T
O FIELD
TO ENGINE
58
