308685 13

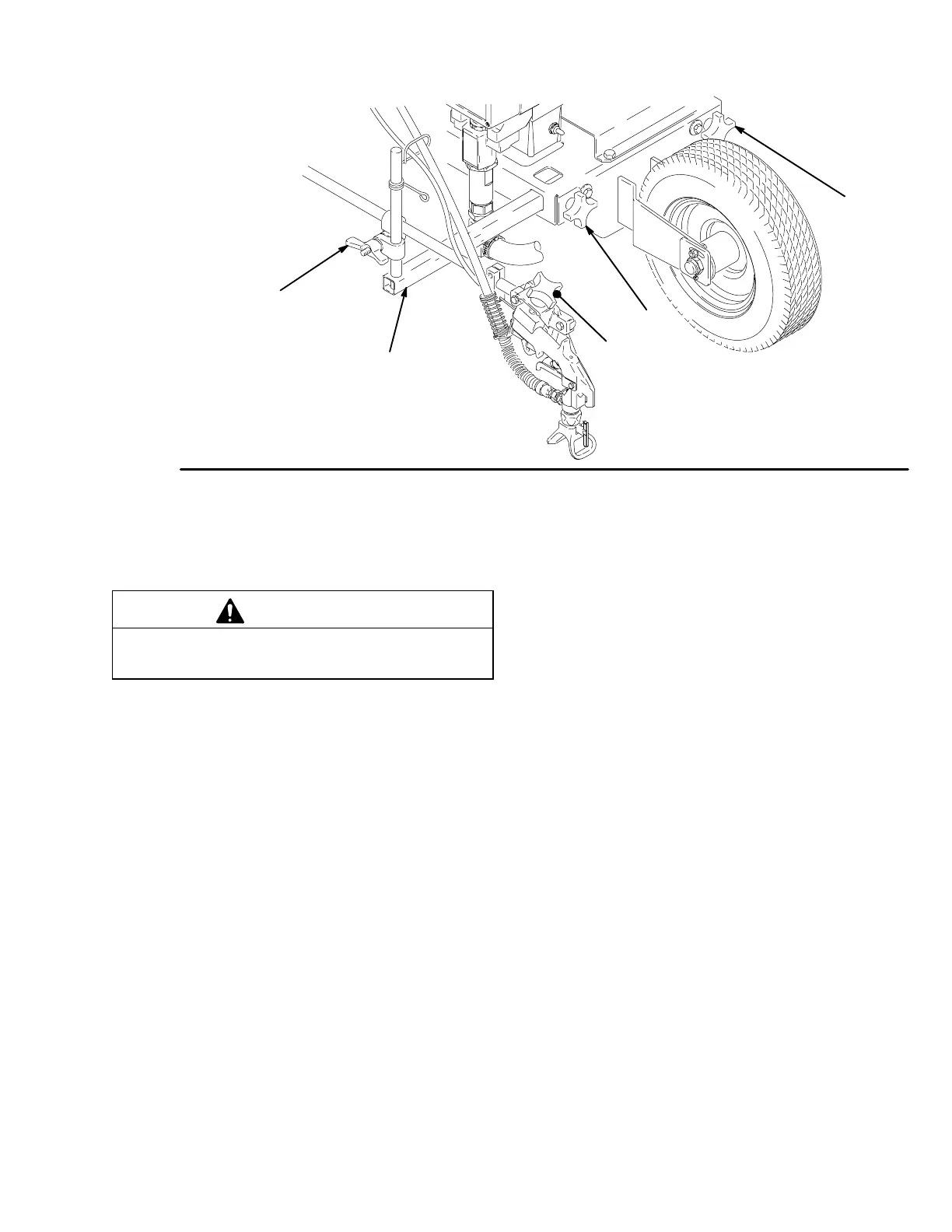

Positioning the Gun Arm Assembly
40c
PUMP SIDE
Fig. 4
ENGINE SIDE
40r
40b
61
61
06943B
The gun arm can be positioned for a variety of spraying
needs. The drawings on page 14 show the gun mounted
on the pump side of the Linestriper. However, the gun
may be mounted on the engine side.
Whenever You Move the Gun
CAUTION
Do not kink the cable, which could prevent it from
properly triggering and untriggering the gun.
Disengage the trigger cable and engage the gun trigger
safety latch first. Do not kink the trigger cables. Pull out
more of the 25 (7.5 m) ft. hose, if necessary.
After moving the gun, reposition the spray tip guard so it
is parallel to the ground and its “wings” face the front and
back of the unit. Disengage the gun trigger safety latch
and engage the trigger cable.
Vertical Position of the Gun
Loosen the arm clamp (40c) and move the gun up or
down. Tighten the clamp. Engage the trigger cable.
Horizontal Position of the Gun
Loosen the knobs and slide the gun support bracket
(40b) in or out, so the gun will be outside the tire path.
Tighten the knobs.
Mount Gun on the Engine Side of the Cart
1. Disengage the trigger cable and engage the gun trig-
ger safety latch.
2. Loosen the gun holder knob (40r) and remove the
gun. Lay the gun out of the way.
3. Loosen the knobs (61) and slide the gun support
bracket (40b) out.
4. Slide the gun support bracket (40b) in from the en-
gine side and tighten knobs (61, making sure not to
kink the cable or hose.
5. Loosen the arm support clamp (40c) and slide the
gun forward. Retighten the clamp.
6. Install the gun. Route the hose and cable to prevent
kinking. Position the spray tip guard. Disengage the
gun trigger safety latch. Engage the trigger cable.
Remount Gun on the Pump Side of the Cart
1. Disengage the trigger cable and engage the trigger
safety latch.
2. Loosen the gun holder knob (40r) and remove the
gun. Lay the gun out of the way.
3. Loosen the knobs (61) and slide the gun support
bracket (40b) out.
4. Slide the gun support bracket (40b) in from the pump
side and tighten knobs (61), making sure not to kink
the cable or hose.
5. Loosen the arm support clamp (40c) and slide the
gun forward. Retighten the clamp.
6. Install the gun. Route the hose and cable to prevent
kinking. Position the spray tip guard. Disengage the
gun trigger safety latch. Engage the trigger cable.
