308685 43
238672 Pressure Control
Parts List
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
301 280340 HOUSING, box, junction 1
302 238660** TRIAC 1
303 100035 SCREW, panhead, 10–24 x 2 inch 2
304 157021** LOCKWASHER, No. 10 3
305 108783** SCREW. filhd, 1
306 100284** NUT, hex 1
307 107070** SCREW, flat hd 2
308 103181** LOCKWASHER 2
309 100072** NUT, hex 2
310 111936** RECTIFIER, bridge 1
311 238676 CONDUCTOR, electrical 1
312** 191242 PLATE, module 1
313 105679 SWITCH, toggle 1
314 105658 RING, locking 1
315 105659 BOOT, toggle 1
316 238791 CONDUCTOR, electrical 1
**Included in Repair Kit No. 238661.
Y Replacement Danger and Warning labels, tags, and
cards are available free.

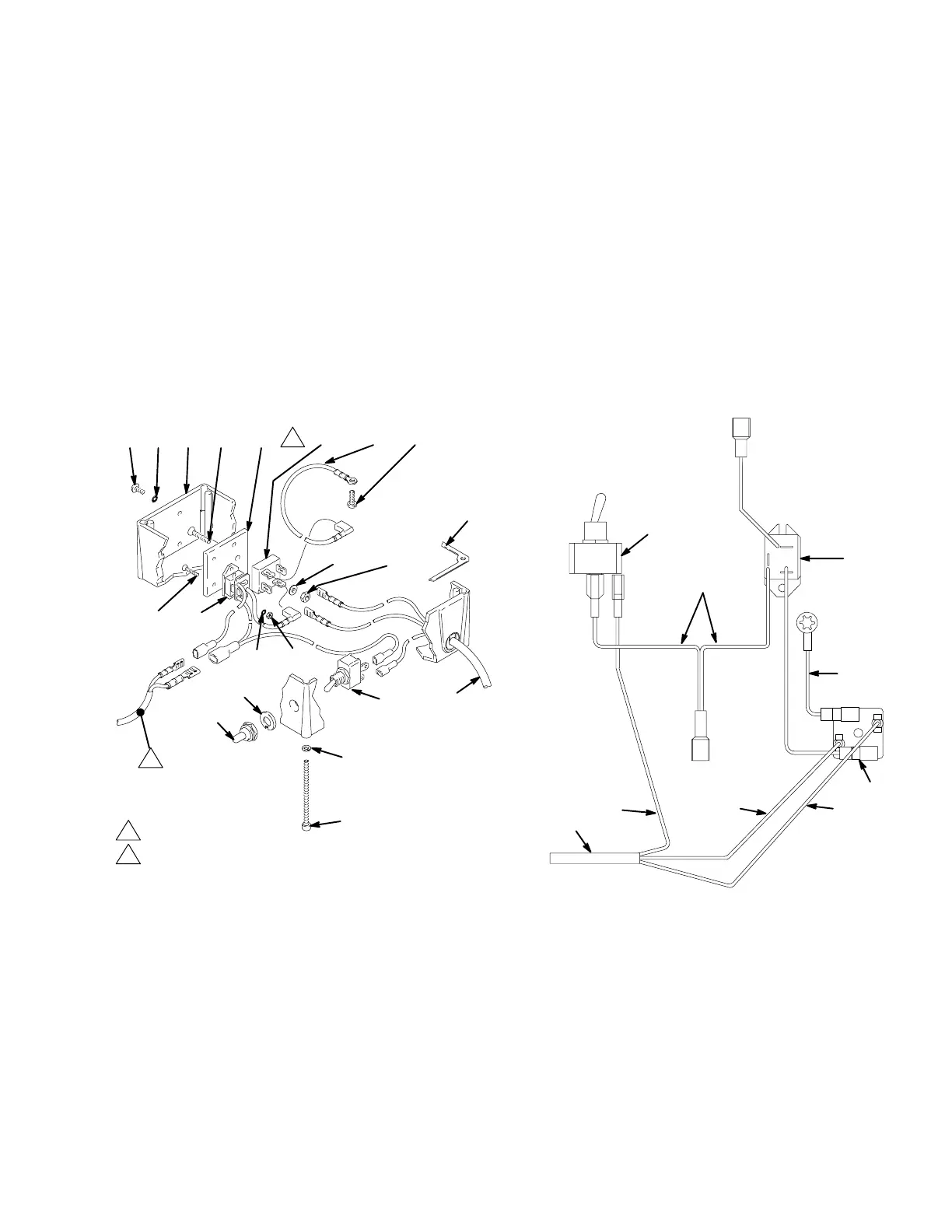

Parts Drawing
72
06002
37
65
313
312** 310** 316
315
1 To pressure control switch
1
314
311
303 304
307**
305**
304** 306**
308** 309**
302**
301
68
2 Apply thermopaste between 301 and 312;
310 and 312; 302 and 312
2
Wiring Schematic
WHITE BLACK
GREEN
GROUND
RED
06010
RED
313
311
310
302
-
+
To Microswitch
To Microswitch
Technical Data
Honda GX120 Engine
Power Rating @ 3600 rpm
ANSI 4.0 Horsepower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DIN 6270B/DIN 6271
NA 2.1 Kw – 2.8 Ps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NB 2.6 Kw – 3.6 Ps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum working pressure 3000 psi (210 bar, 21 MPa). . . .
Noise level
Sound power 102 dB(A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sound pressure 87 dB(A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Measured at 3.1 feet (1 m) under maximum operating
conditions per ISO–3744
Cycles/gallon (liter) 540 (142). . . . . . . . . . . . . . . . . . . . . . . . . . .
Maximum delivery 0.62 gpm (2.36 liter/min). . . . . . . . . . . . . . .
Fuel tank capacity 0.66 gallons (2.5 liter). . . . . . . . . . . . . . . . .
Maximum tip size 0.025 @ 2000 psi . . . . . . . . . . . . . . . . . . . . .
(137 bar, 13.7 MPa) with latex
Inlet paint strainer 12 mesh. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
stainless steel screen, reusable
Outlet paint filter 60 mesh (250 micron). . . . . . . . . . . . . . . . . . .
stainless steel screen, reusable
Pump inlet size 1/2 in. npt (f). . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid outlet size 1/4 in. npsm from fluid filter. . . . . . . . . . . . . . .
Wetted parts
Displacement Pump stainless steel, carbon steel,. . . . . . .
polyurethane, uhmw polyethylene,
PTFE
r, Delrinr, leather
Filter stainless steel, plated carbon steel, nylon, PTFEr. .
Pressure Control stainless steel, brass. . . . . . . . . . . . . . . . .
Suction Hose Nitrile (synthetic rubber)with nylon lining. . . .
