Graco LineLazer 3000 User Manual

30868542

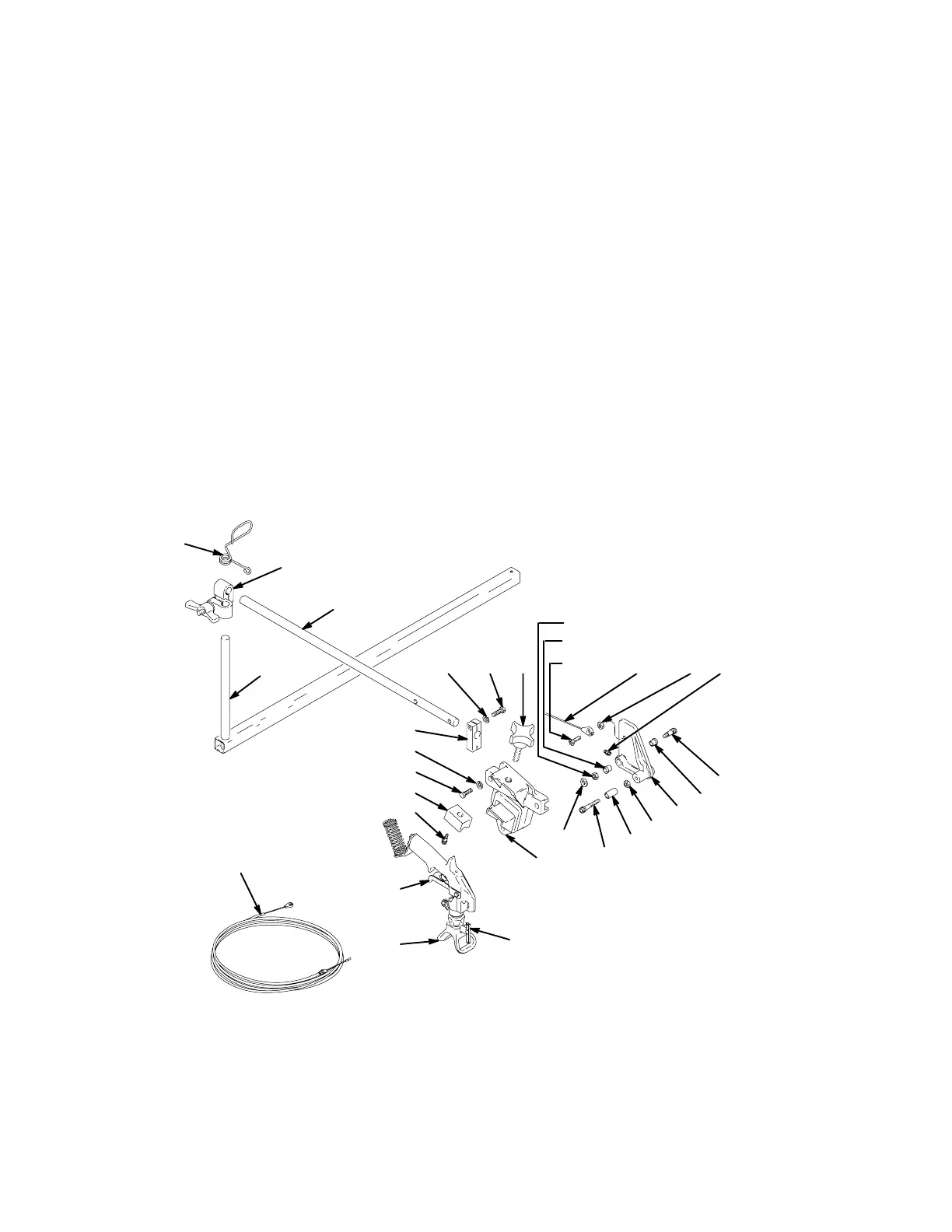

Pivoting Gun Arm Parts List and Drawing
Assembly 239273
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
40a 111721 CABLE, remote trigger 1
40b 224096 BRACKET, gun support 1
40c 114029 CLAMP, arm support 1
40d 188135 GUIDE, cable 1
40e 100846 FITTING, lubrication 1
40f 111016 BEARING, flanged 2
40g 111230 SCREW, mach, flhd,
1/4–20 x 1 in. 1
40h 100015 NUT, hex, 1/4–20 1
40j 100016 LOCKWASHER, 1/4 in. 2
40k 181734 ARM, support 1
40m 100101 CAPSCREW, hex hd,
3/8–16 x 1 in. 1 or 2
40n 186699 BLOCK, mounting cable 1
40p 100021 CAPSCREW, hex hd,
1/4–20 x 1 in. 2
40r 181818 KNOB 1
40s 189915 LEVER, actuator 1
40t 188452 HOLDER, gun 1
40u 108483 SCREW, shoulder, sch,
1/4 x 3/8 in. 1
40v 181795 JAW, clamp 1
40w 235457 FLEX GUN
See manual 308235
for parts 1
40x 101345 NUT, hex, jam, 1/4–20 2
40y 108535 BEARING, sleeve 1
40z 107445 CAPSCREW, sch,
1/4–20 x 1–
1
/
2
in. 1
40aa 111045 SCREW, shoulder, sch,
5/16 x 1 in. 1
40ab LL5317 LineLazer Tip, size 317 1
40ac 110755 WASHER 1
40ad 100133 LOCKWASHER, 3/8 in. 1
40ae 243161 RAC 5 DripLess
TIP GUARD 1
40af 286415 SwitchTip, Size 415 1
40d
40c
40b
40p
40j
40k
40ad 40m
40n
40xREF 40a
40w
40v
40u
40t
40r
40aa
40y
40x
40z
40f
40e
40ae, 40af
40ae
40ac
06931
40a
40s
40g
40f
40h
