308685 5
06941B

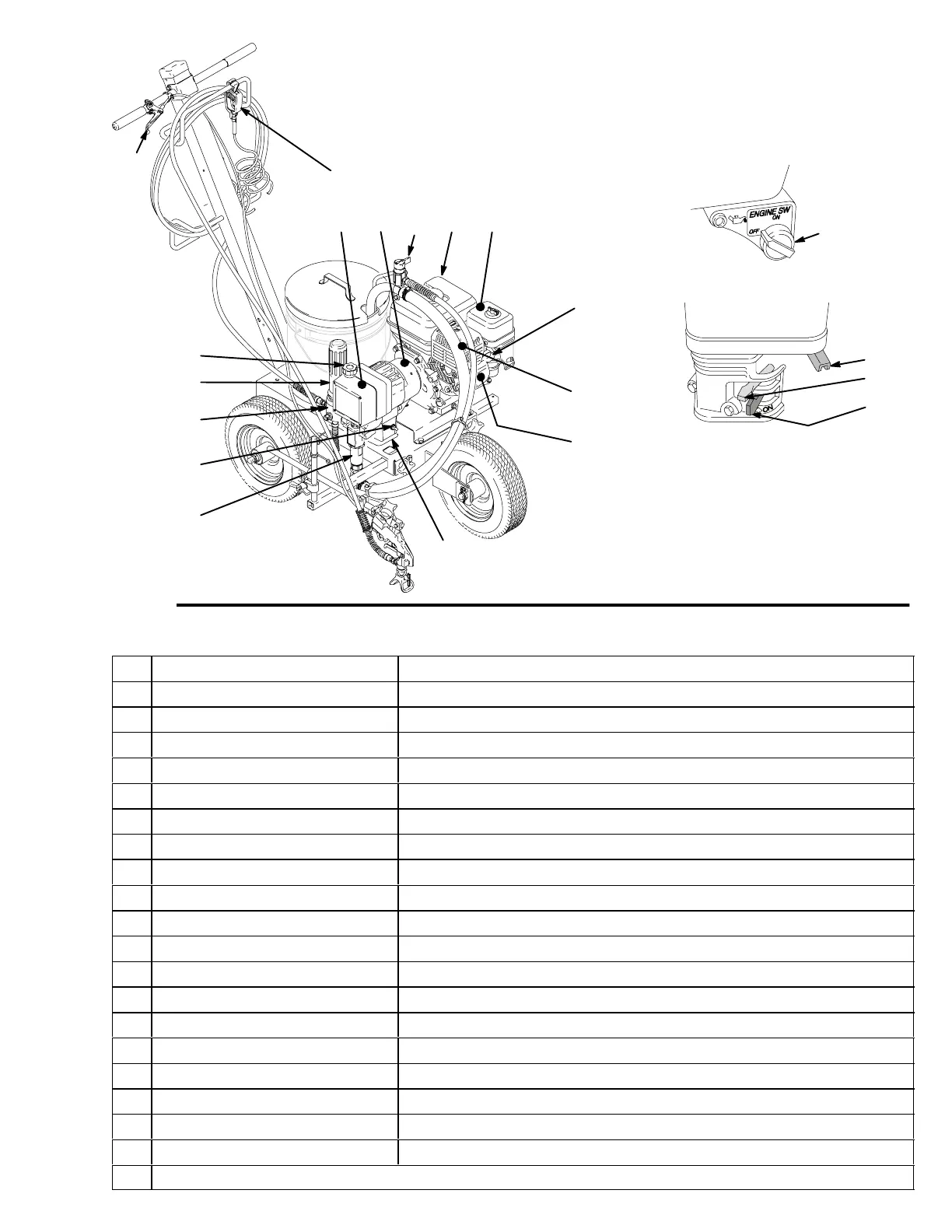

Component Identification and Function
C
Fig. 1
A
G
M
B
H
R
T
S
U
E
J
K
L
V
0016
0015
PD
F
N
W
A Pressure Control Switch ON/OFF, enables/disables clutch function
B Pressure Adjusting Knob Controls fluid outlet pressure
C Air Cleaner* Filters air entering the carburetor
D Fuel Tank* Holds 0.66 gallons (2.5 liters) of [(R+M)/2]; 86 octane gasoline
E Muffler* Reduces noise of internal combustion
F Spark Plug Cable* Routes electrical current to spark plug
G Fuel Valve* On/off valve to regulate fuel flow from gasoline tank to carburetor
H Choke* Enriches air/gasoline mixture for cold starting
J Throttle* Adjusts engine speed for large or small orifice spray tips
K Engine Switch* Enables/disables engine operation
L Fluid Outlet Hose and spray gun are connected here
M Pressure Control Controls clutch cycling to maintain fluid pressure.
N Engine* 4.0 HP gasoline engine
P Clutch Transfers power from engine to drive assembly
R Drive Assembly Transfers power from clutch to displacement pump
S Displacement Pump Provides fluid to be sprayed through spray gun
T Fluid Filter Filters fluid between source and spray gun
U Grounding Clamp and Wire Grounds sprayer system
V Pressure Drain Valve Relieves fluid pressure when open
W Spray Gun Actuator Handle Turns spray gun on and off.
* For more detailed explanations of these controls, refer to the Honda engine manual; supplied
