30868514

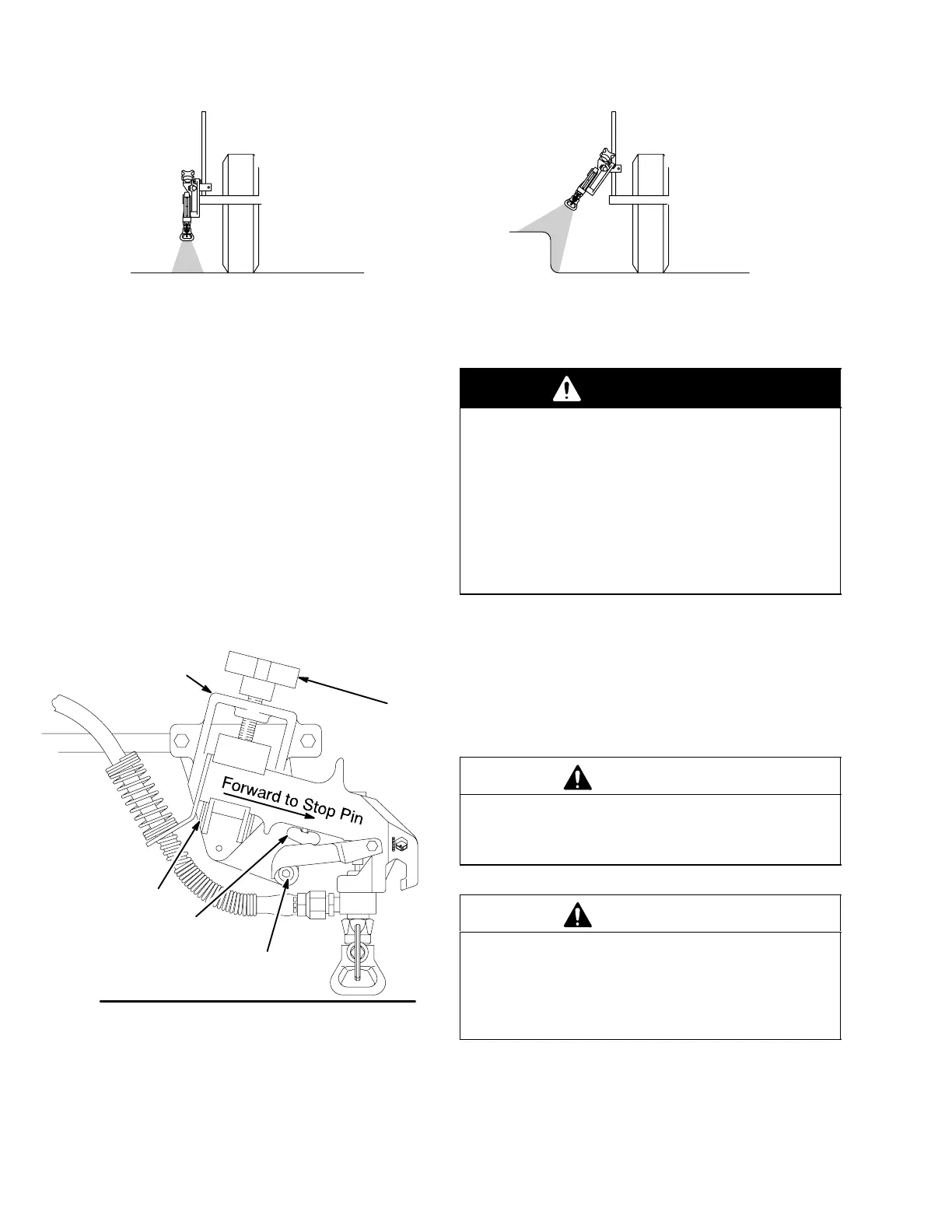

Gun Arm Positions
CURB SPRAYINGLINE SPRAYING
06920
How To Mount the Gun
1. Relieve pressure. See page 17.
2. Disengage the trigger cable. See page 14. Engage
the gun’s trigger safety latch (B).
3. Loosen the gun holder knob (40r).
4. Position the gun so the gun trigger is resting on the
remote trigger lever (A) and the stop pin.
5. Be sure that the gun is mounted straight and then
tighten the knob (40r) firmly.
6. Disengage the gun safety latch. Engage the trigger
cable. See page 15.
40r
40t
A
B
Fig. 5
06921
Stop Pin
How to Release the Gun Selector Cable
WARNING
The gun is remotely triggered with a gun selector
on the handle bar.
To reduce the risk of an injection injury due to
remotely triggering the gun by accident, always
disengage the trigger cable from the block before
handling the gun. See Fig. 6, DETAIL A, . The gun
will trigger briefly when releasing the cable!
Before you remove the gun from the holder, en-
gage the gun trigger safety latch.
1. To disengage the cable, grasp the cable (40a) just
behind the block (40n). Pull the cable back about 1/2
inch (13 mm) and then up and out of the block. The
gun will trigger briefly! See Fig. 6.
2. To engage the cable, slide the cable (1) into the block
(48), making sure the end of the cable jacket seats
firmly in the seat of the block. The gun will trigger
briefly! See Fig. 6.
CAUTION
Keep the seat in the gun cable block (40n) and the
end of the cable jacket clean at all times to be sure
the cable functions properly.
CAUTION
A loose cable prevents the gun from being fully
triggered causing premature wear of the gun needle.
A tight cable prevents the gun from being fully untrig-
gered resulting in dripping and premature tip wear.
Follow Trigger cable tension adjustment, page 15.
