How To Mount the Gun
Trigger Cable Tension Adjustment See Fig. 6
1. Relieve pressure. See page 17.
2. Be sure the gun is properly mounted in the holder as
instructed on page 14.
3. Pull the actuator lever (40s) forward and hold it. Lift
up on the gun trigger (A) until there is slight resis-
tance. Visually check to see if there is about 1/32 to
1/16 in. gap between the trigger lever (B) and where
the gun trigger touches the bar.
4. To adjust the tension, loosen the screw (C) in the
block (40n). Slide the block forward to increase the
gap and backward to decrease the gap. Tighten the
screw.
5. Recheck the gap and adjust as needed.
CAUTION
Do not allow the cable (40a) to rub against the
outside edges of the slot (H) in the block (40n), to
prevent premature wear of the cable. Rotate the
block slightly to eliminate rubbing.

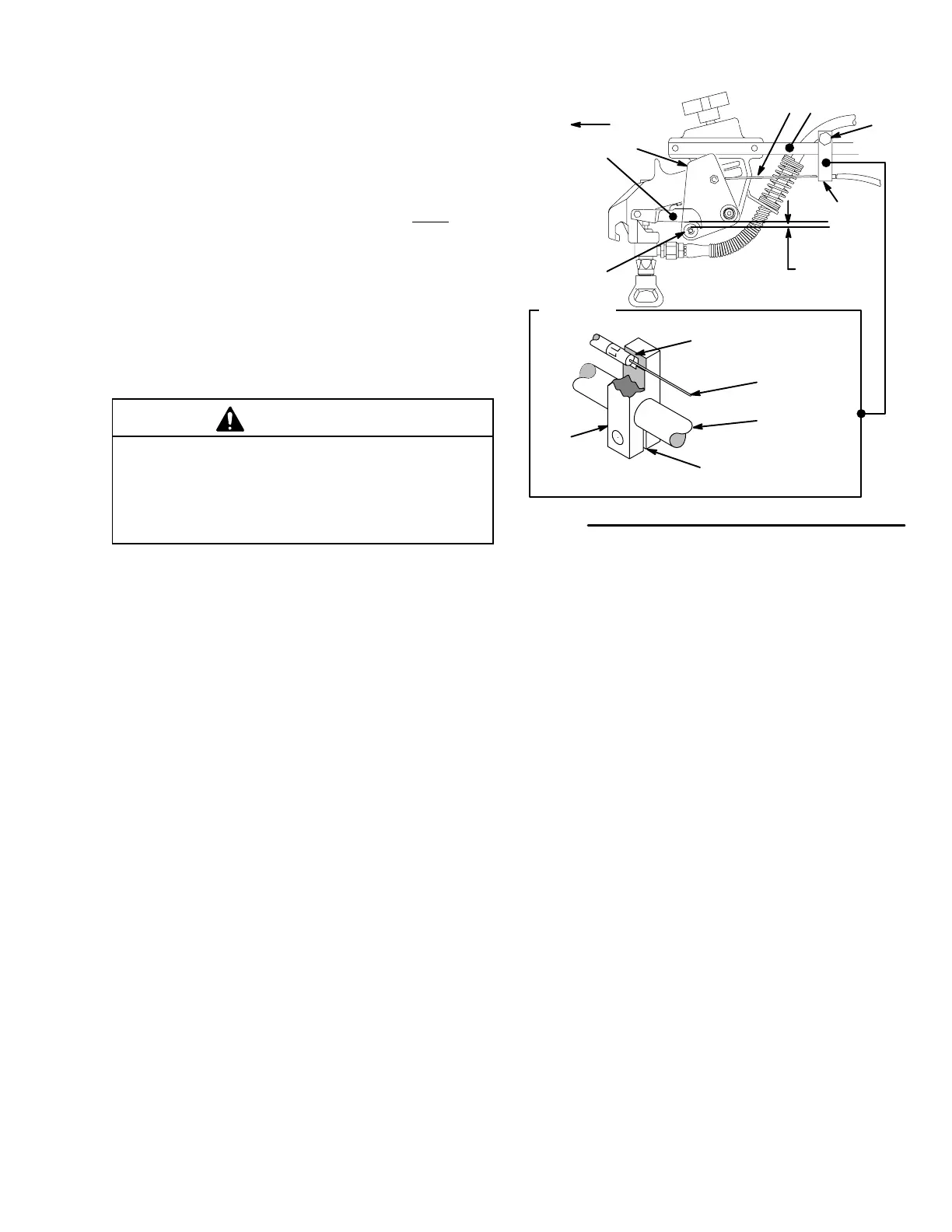

See Fig. 6, DETAIL A.
06966
40a
40n
1/32 – 1/16 in.
(1–2 mm)
40s
A
B
FORWARD
Be sure end jacket of cable
seats here. Keep jacket and
seat clean
40a
40n
40k
40k
C
DETAIL A
0024
Fig. 6
Shown Inverted
H
