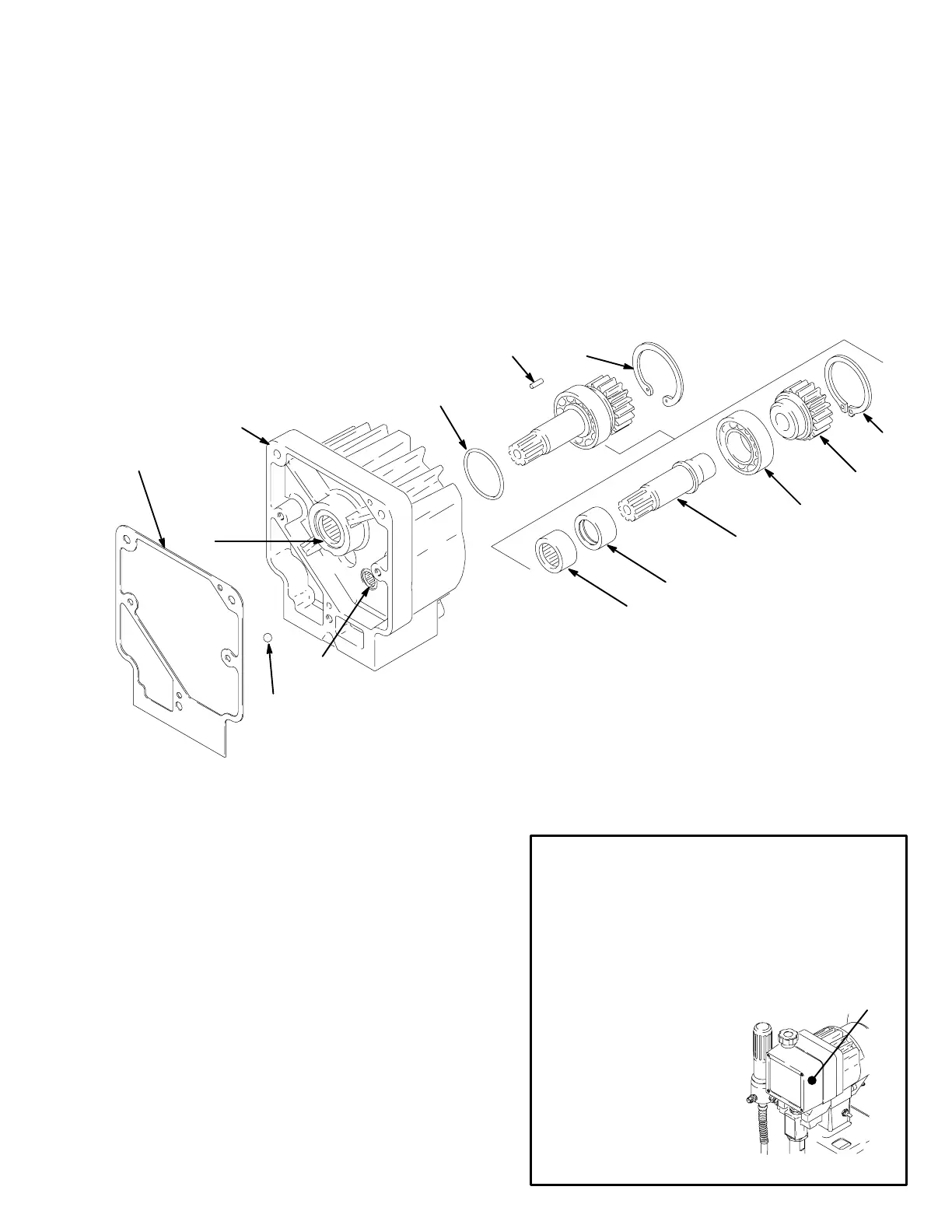

Pinion Assembly Parts List and Drawing
Assembly 238684
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
2a 191208 .PINION HOUSING 1
2b 105489 .PIN 2
2c 102873 .BEARING 1
2d 100069 .BALL 1
2e 107394 .BEARING 1
2f** 185916 .PINION SHAFT 1
2g** 109002 .BALL BEARING, large 1
2h** 183515 .HUB, armature 1
2j** 108880 .RETAINING RING, small 1
2k 113094 .RETAINING RING, large 1
2l** 191258 .GASKET, housing 1
2m** 110607 .CLUTCH, roller 1
2n** 109001 .BEARING, needle 1
2p** 165295 .O-RING 1
**Included in Repair Kit No. 223189.
06009
2k
2j**
2h**
2g**
2f**
2b
2a
2c
2m**
2n**
2l**
2d
2e
2p
Accessories
Displacement Pump Repair Kit 235703
Replacement parts for the repair of the displacement
pump.
Pointer Kit 239512
Line indicator accessory for consistently straight lines.
French 187784
Spanish 185962
German 186042
Greek 186046
Korean 186047
English 187791
DANGER LABELS
The English language DANGER label shown on
page 4 is on your sprayer. If you have painters who
do not read English, order one of the following labels
to apply to your sprayer. The drawing below shows
the best placement of these labels for good visibility.
Order the labels directly from Graco, free of
charge. Toll Free: 1–800–328–0211
