Graco LineLazer 3000 User Manual

30868522

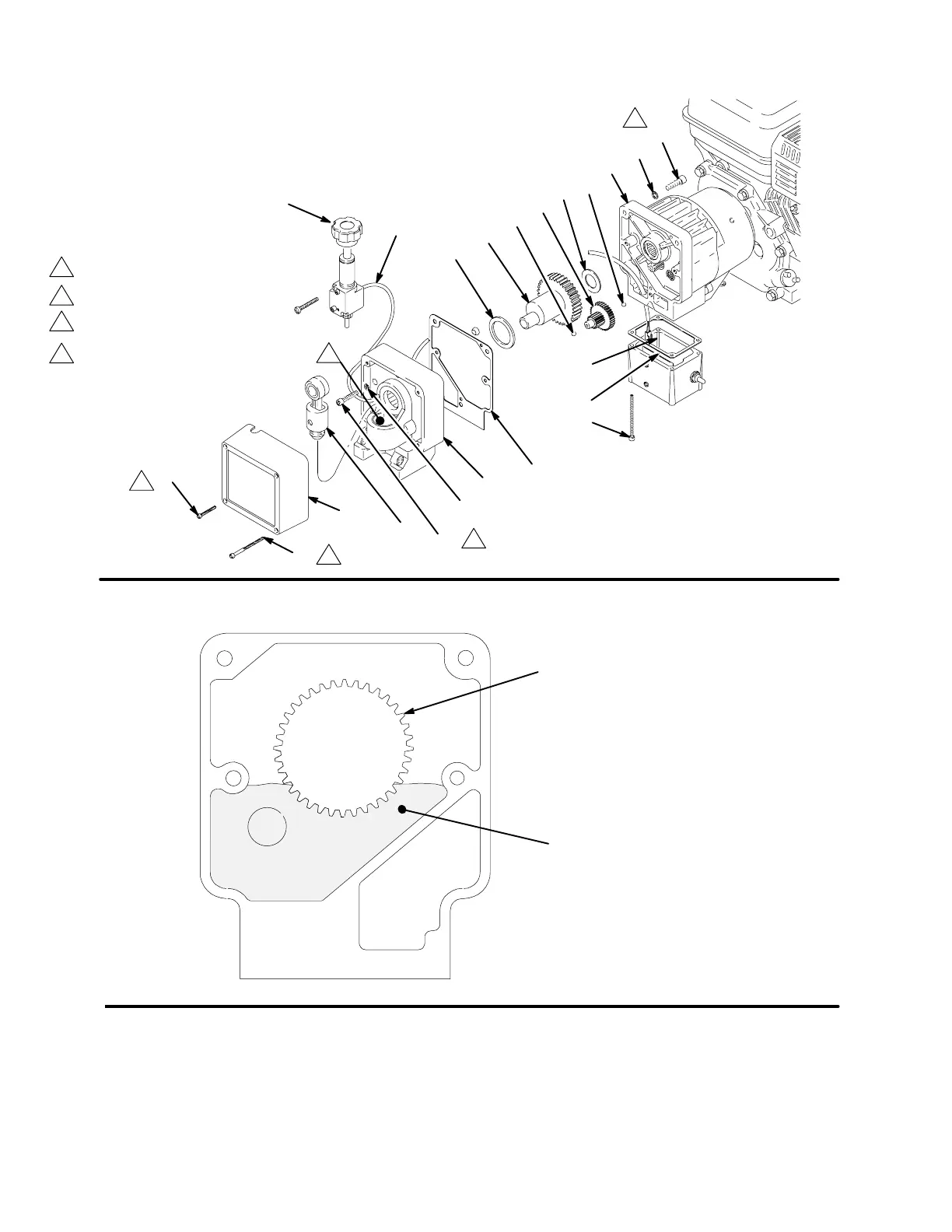

Drive Housing, Connecting Rod, Crankshaft
Fig. 8
1
Torque to 100 in–lb (11 N.m)
3
2 Quantity of three
Quantity of one
Lubricate with SAE
non-detergent oil
4
16
15
10
9
25
6
16
8a
8
8b
65
6a
2d
A
26
23
Ref A
19
69
1
1
2
3
4
2
70
64
06923
06003
Fig. 9
Brush G-n lubricant
and recoat with bearing
grease
Pack with bearing grease (0.22 pint)
