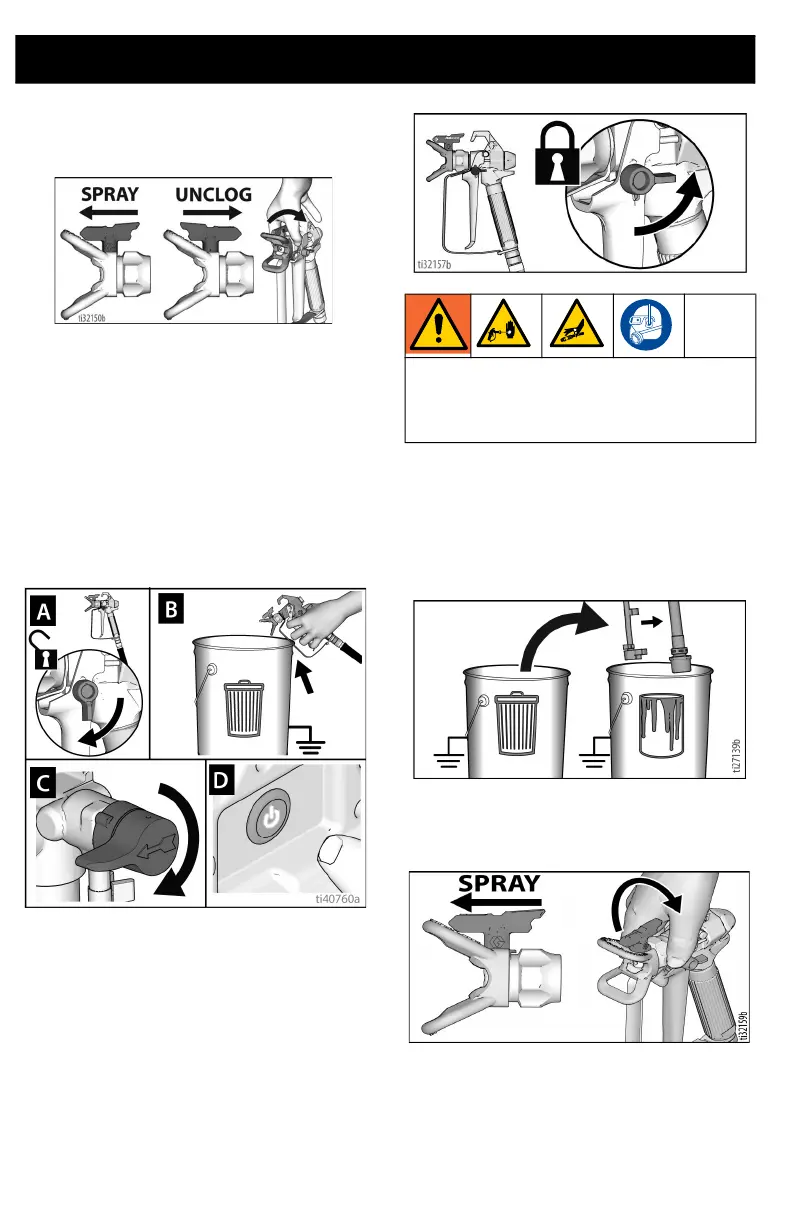

Start Up
18 3A9019A EN
Fill Gun and Hose
1. Rotate Spray Tip to UNCLOG position
and ensure the Spray Tip Guard is tight.
2. Hold gun against waste pail. Point gun
into waste pail.
a. Disengage trigger lock (A).
b. Pull and hold gun trigger (B).
c. Turn Prime/Spray Valve horizontal
to SPRAY position (C).
d. Turn ON/OFF switch to ON
position (D). Power switch is
illuminated when ON.
3. Trigger gun into waste pail until only
paint comes out of the gun.
4. Release trigger. Engage trigger lock.
NOTE: Inspect for leaks. If leaking occurs,
perform Pressure Relief Procedure, page
15, then tighten all fittings and repeat Fill
Pump (Prime Pump), page 17.
5. Transfer Drain Tube to paint pail and clip
to Suction Tube.
6. Rotate Spray Tip back to SPRAY
position and ensure the Spray Tip Guard
is tight.
High-pressure spray is able to inject
toxins into the body and cause serious
bodily injury. Do not stop leaks with hand
or rag.
