Graco Magnum TrueAirless ProX19 User Manual

Know Your Sprayer
3A9019A EN 9
Know Your Sprayer

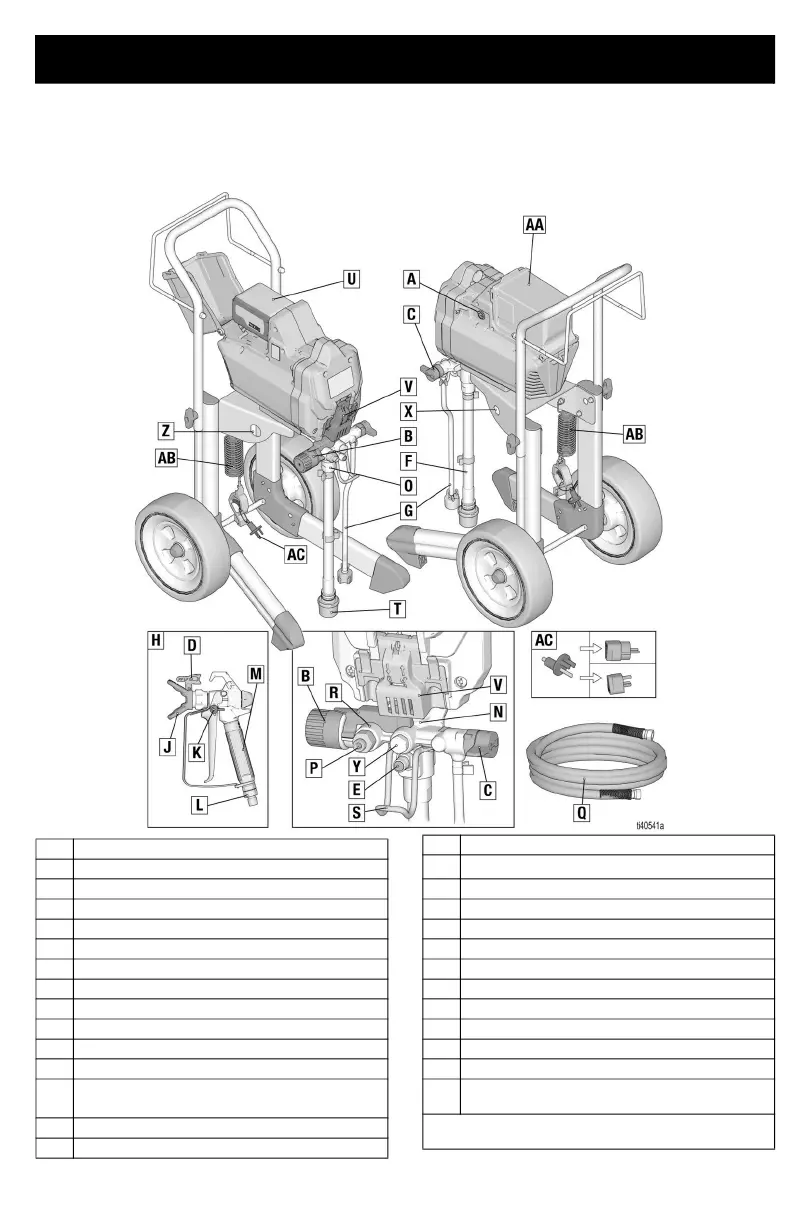

ProX19 Cart Sprayer
A Power - ON/OFF Switch
B Pressure Control Knob
C Prime/Spray Valve
D Spray Tip
E PushPrime Button
F Suction Tube
G Drain Tube (with diffuser)
H Airless Spray Gun
J Spray Tip Guard
K Gun Trigger Lock
L Gun Fitting
M Gun Filter (inside handle)
N ProXChange™ Pump (behind Easy Access
Door)
O Inlet Valve
P Airless Hose Connection
Q Airless Hose
R
InstaClean
™
Filter (inside fluid outlet)
S Pail Hanger
T Inlet Screen
U Battery
V Easy Access Door
X Pump Removal Tool
Y Outlet Valve
Z Inlet Valve Removal Tool
AA Battery Cover
AB Ground Wire w/ Clamp
AC Outlet Ground Adapter
Model/Serial Tag (Not shown, located on bot-
tom of unit.)
See Quick Reference, page 33 for more
information.

Graco Magnum TrueAirless ProX19 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.019 inch
Maximum Pressure	3000 PSI
Flow Rate	0.38 GPM
Power Source	Electric
Motor Type	Brushless
Recommended Applications	Residential and Commercial
