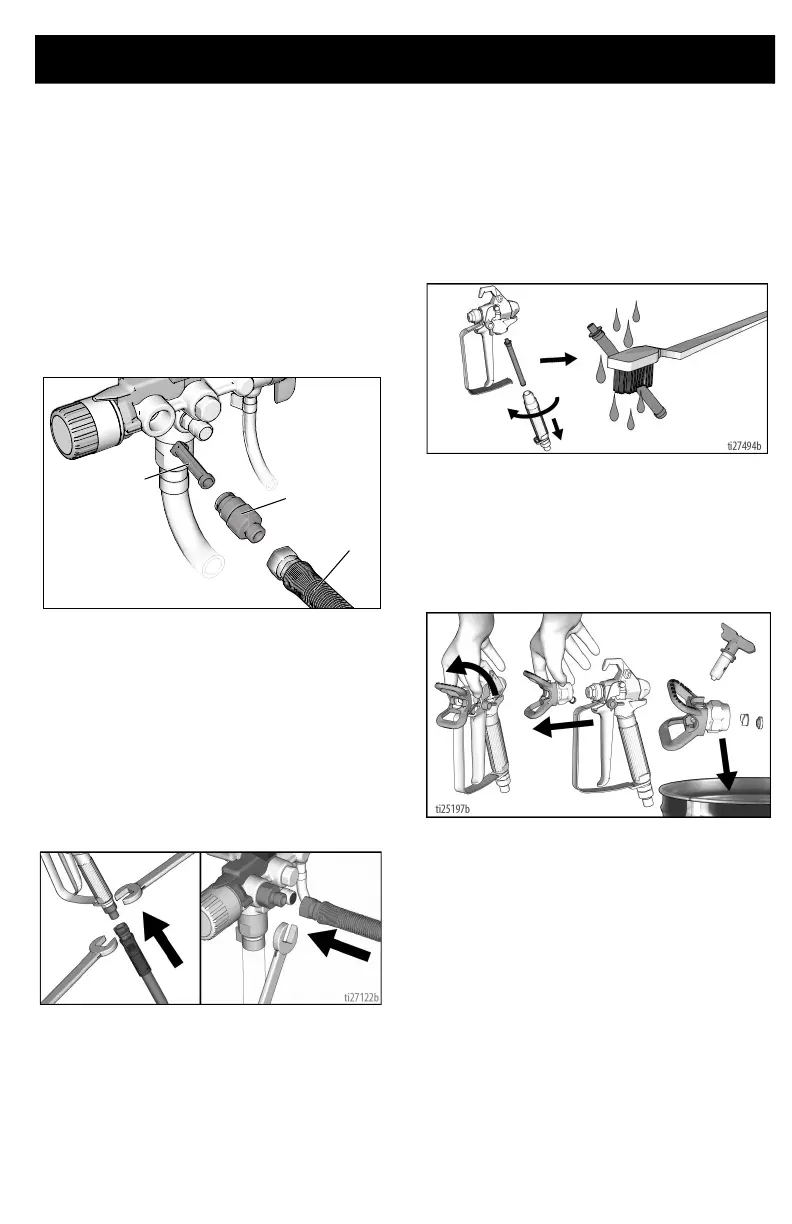

Graco Magnum TrueAirless ProX19 User Manual

Cleanup
3A9019A EN 29
Clean InstaClean Filter
The InstaClean Filter prevents debris from
entering paint hose. After each use, remove
and clean it to ensure peak performance.
1. Perform Pressure Relief Procedure,
page 15.
2. Disconnect airless spray hose (A) from
sprayer.
3. Unscrew fluid outlet (B).
4. Remove InstaClean filter (C).
5. Check InstaClean Filter (C) for debris. If
needed, clean filter with water or
flushing fluid and a soft brush.
a. Install closed (square) end of
InstaClean Filter (C) in sprayer.
b. Screw fluid outlet (B) into sprayer.
6. Tighten outlet valve and reconnect hose
(A) to sprayer. Use two wrenches to
tighten securely.
Clean the Gun and Gun
Filter
1. Perform Pressure Relief Procedure,
page 15.
2. Remove the gun handle by unscrewing
the handle from the gun head.
3. Clean gun filter with water or flushing
fluid and a brush every time you flush the
system. Replace gun filter if damaged.
4. Remove Spray Tip Guard assembly and
clean with water or flushing fluid and a
brush.
5. See Spray Tip Installation, page 23 to
properly reinstall Spray Tip Guard
assembly.
6. Wipe paint off outside of gun using a soft
cloth moistened with water or flushing
fluid.
C
B
A
t
ti
27179a

Graco Magnum TrueAirless ProX19 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.019 inch
Maximum Pressure	3000 PSI
Flow Rate	0.38 GPM
Power Source	Electric
Motor Type	Brushless
Recommended Applications	Residential and Commercial
