Cleanup
3A9019A EN 27

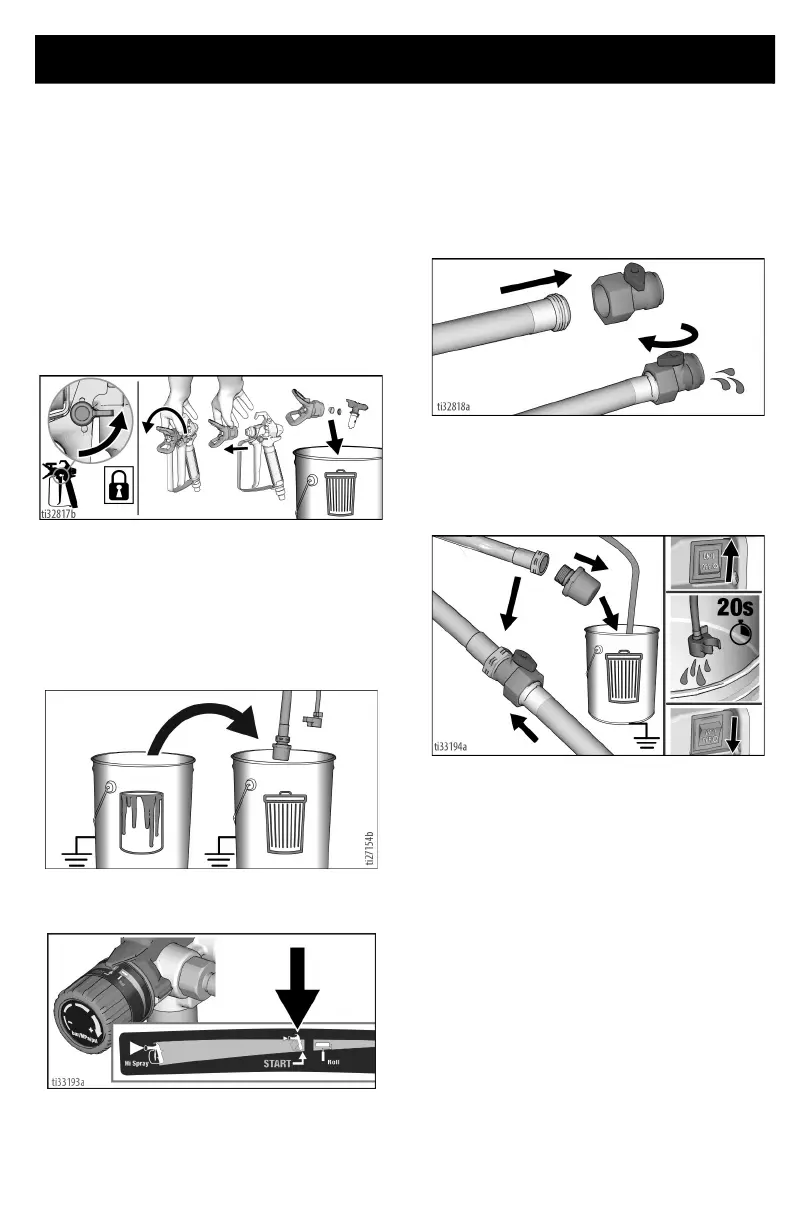

Cleanup with Power Flush
Valve
(Water-based materials only)
Power flushing is a faster method of cleanup.
It can only be used after spraying
water-based coatings.
1. Perform Pressure Relief Procedure,
page 15.
2. Engage trigger lock. Remove Spray Tip
Guard assembly from gun and place in
waste pail.
3. Place empty waste and paint pails side
by side.
4. Lift Suction Tube and Drain Tube from
paint pail. Let paint drain into the pail.
5. Place suction and Drain Tube in waste
pail.
6. Turn pressure control knob to the
START position.
7. Screw Power Flush Valve (included with
sprayer) to garden hose. Close Power
Flush Valve.
8. Turn on water. Open Power Flush Valve.
Rinse paint off Suction Tube, Drain Tube
and inlet screen. Close Power Flush
Valve.
9. Unscrew inlet screen from Suction
Tube. Place inlet screen in waste pail.
Connect garden hose to Power Flush
Valve on Suction Tube. Leave Drain
Tube in waste pail.
10. Install battery, see Battery Installation
and Removal, page 14.
11. Turn ON/OFF switch to ON position.
Button is illuminated when ON.
12. Open Power Flush Valve.
13. Circulate water through sprayer, into
waste pail, for 20 seconds.
14. Turn ON/OFF switch to OFF position.
Button is not illuminated when OFF.
NOTE: Step 15 is for returning paint in hose
to paint pail. One 50 ft (15.2 m) hose holds
approximately 1 quart (1 liter) of paint.
To Next Page
