Spraying
22 3A9019A EN

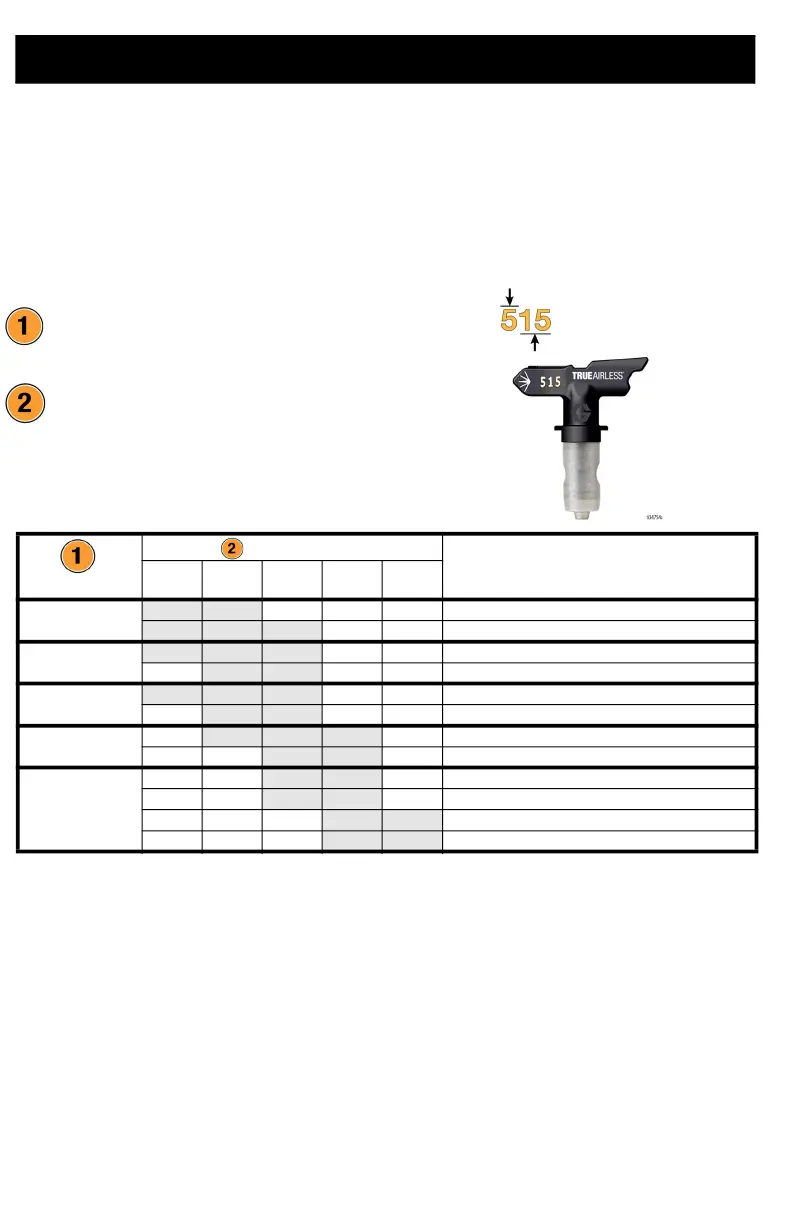

Spray Tip and Pressure Selection
Spray Tips come in a variety of sizes for
spraying a wide range of materials. Your
sprayer includes a 515 Spray Tip for use with
most paints on large surfaces such as walls
and ceilings. If you are spraying stain or need
a different spray fan width, refer to the Spray
Tip chart below to select the best Spray Tip
for your project. Additional Spray Tip sizes
are available where paint sprayers are sold.
1. What material are you spraying?
• The thicker the material, the larger
Spray Tip size you will need.
2. What spray fan width is needed for your
project?
• Narrow spray fan for smaller
projects
• Wider spray fan for larger projects
Tip Number Calculation:
• The first digit is half of the fan width
(#5 x 2 = 10 inch fan width).
• The last two digits are the size of the
tip opening in thousandths of an
inch.
• As you spray, the Spray Tip wears and as a result, the hole size gets larger. Starting with
a Spray Tip hole size smaller than the maximum will allow you to spray longer within the
compatibility of the sprayer.
• Spray Tips wear with use and need periodic replacement.
Material
Fan Width
4 in Fan
Width
6 in Fan
Width
8 in Fan
Width
10 in Fan
Width
12 in Fan
Width
Stain and Sealer
209 309
211 311 411
Semi Transparent
Stain
211 311 411
313 413
Solid Stain
211 311 411
313 413
Interior
Paint/Primer
315 415 515
417 517
Exterior
Paint/Primer
415 515
417 517
519 619
521 621
