Graco Magnum TrueAirless ProX19 User Manual

Maintenance
3A9019A EN 37
ProXChange Removal Tool
An integrated tool is included in the frame to
remove the ProXChange packing assembly.
See ProXChange Pump manual for complete
repair instructions.

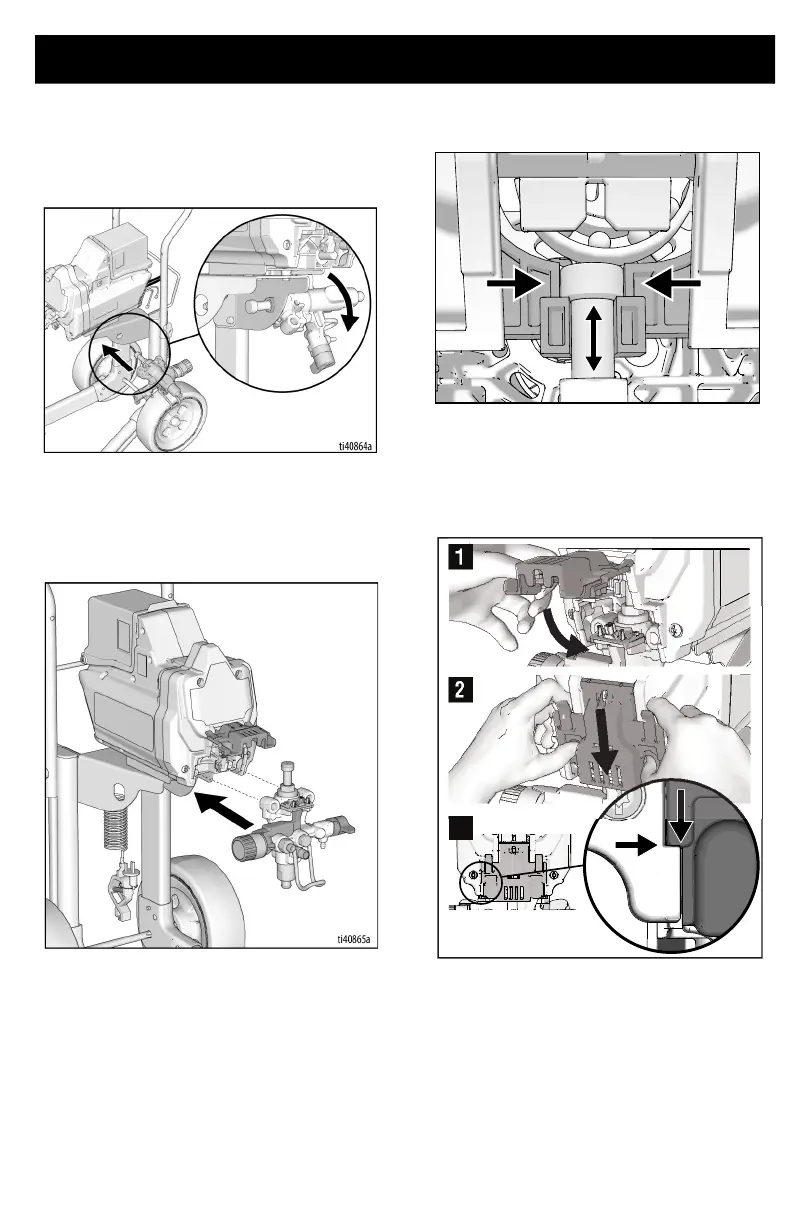

Pump Installation
1. Slide pump assembly onto the
mounting pins.
a. Move pump rod up or down until
cap is level with the opening in the
yoke.
b. Push on pump rod to slide pump
assembly back on to mounting
pins.
2. Swing Easy Access Door closed while
pushing the entire door down.
3. Install hose, suction tube, and drain
tube.
4. Install battery, see Battery Installation
and Removal, page 14.
NOTE: Door must be fully closed and latched
before sprayer will operate.
ti27037a
1
ti27478a
2
3

Graco Magnum TrueAirless ProX19 Specifications

General

Type	Airless Paint Sprayer
Maximum Tip Size	0.019 inch
Maximum Pressure	3000 PSI
Flow Rate	0.38 GPM
Power Source	Electric
Motor Type	Brushless
Recommended Applications	Residential and Commercial
