Parts
312394C 47

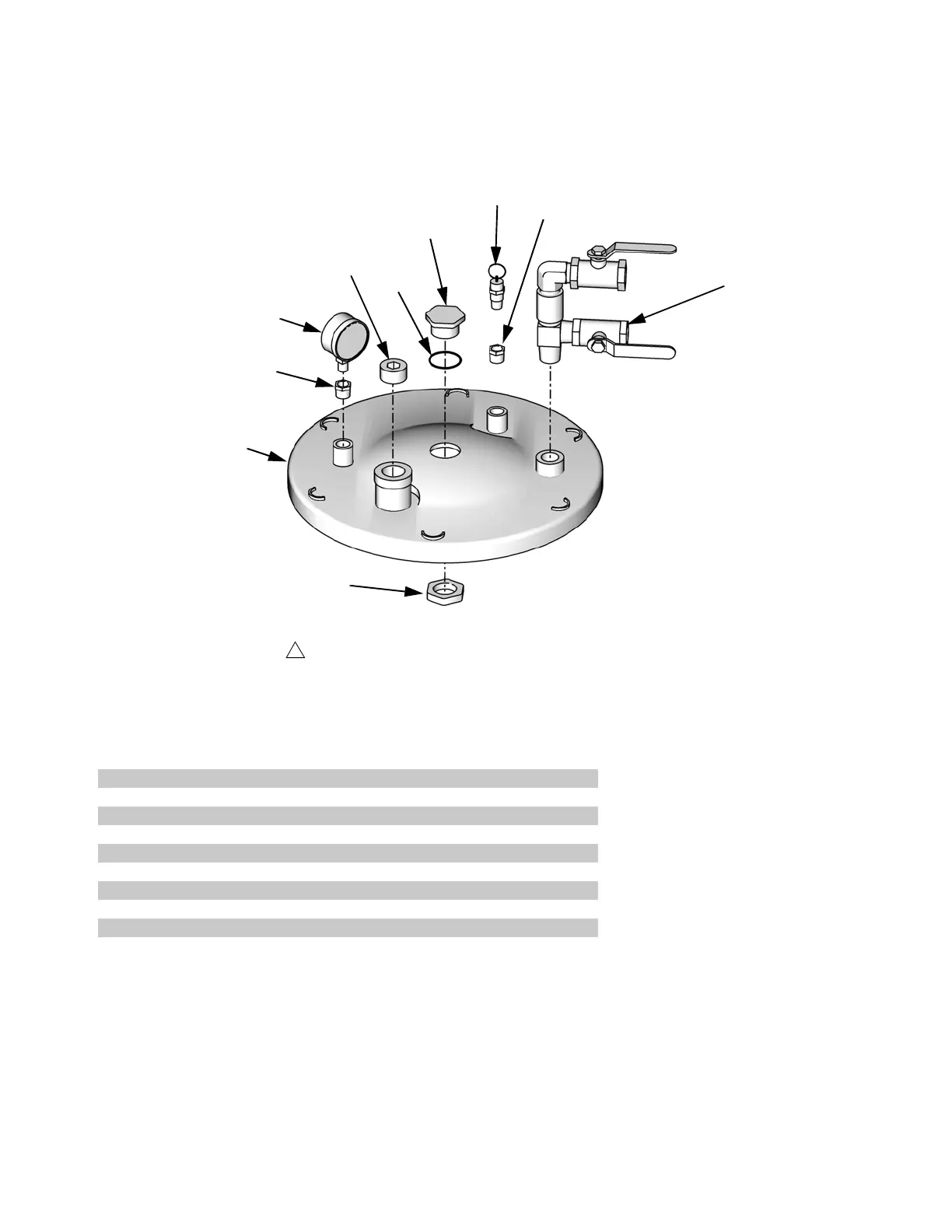

Lid Assembly LC0102
Ref Part Description Qty
1201 82/0220-1/11 GAUGE, 30 in. hg-30 psi, 2-1/2 in., liquid 1
1202 87/0256-PN/98 NUT, plug, lid, 30/60 L, stainless steel 1
1203 87/0256-P/98 PLUG, lid, tank, 30/60 L, stainless steel 1
1204 94/0373/98 PLUG, socket head, 1 in. npt, stainless steel 1
1205 94/0744/98 BUSHING, 3/8 npt x 1/4 npt, stainless steel 1
1206 95/0029/02 O-RING, ep, jbi 2
1207 255384 FITTING, vacuum tree 1
1208 15M835 LID, MOD, 30/60 L, stainless steel 1
1209 15R145 VALVE, relief, 1/4 npt, male, 40 psi, sil 1
1207
1205
1209
1203
1206
1204
1201
1205
1208
1202
Apply thread sealant tape to male npt threads prior to installation.
1
ti12463a
