Graco PR70 - Off-Board Stainless Steel Tank Lids

Parts
46 312394C
Off-Board Stainless Steel Tank Lids

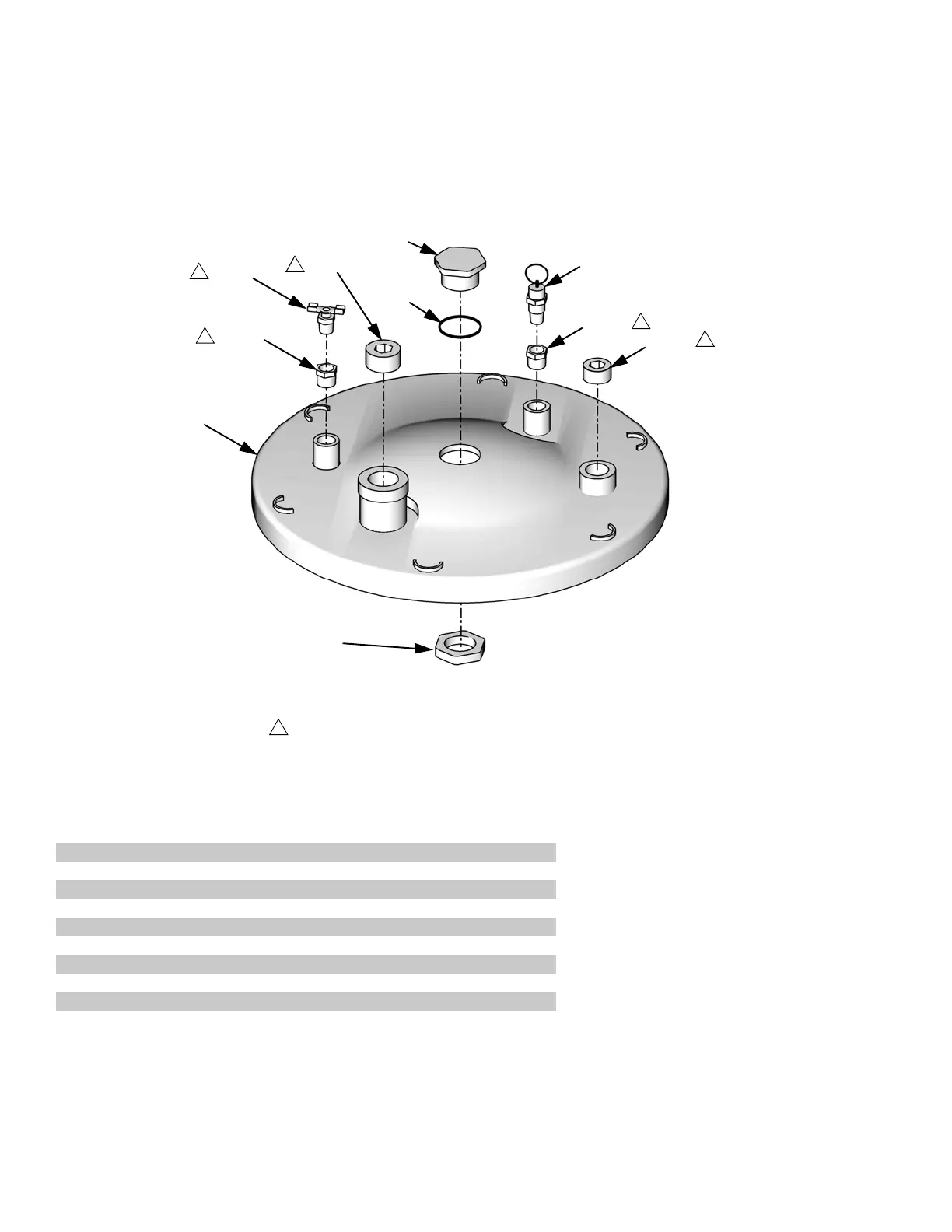

Lid Assembly LC0101
Ref Part Description Qty
1101 87/0256-PN/98 NUT, plug, lid, 30/60 L, stainless steel 1
1102 87/0256-P/98 PLUG, lid, tank, 30/60 L, stainless steel 1
1103 94/0372/98 PLUG, socket head, 3/4 npt, stainless steel 1
1104 94/0373/98 PLUG, socket head, 1 in. npt, stainless steel 1
1105 94/0736/96 VALVE, drain cock, 1/4 npt, male, brass 1
1106 94/0744/98 BUSHING, 3/8 npt x 1/4 npt, stainless steel 2
1107 95/0029/02 O-RING, ep, jbi 1
1108 15M835 LID, MOD, 30/60 L, stainless steel 1
1109 15R145 VALVE, relief, 1/4 npt, male, 40 psi, sil 1
1103
1106
1109
1102
1107
1104
1105
1106
1108
1101
Apply thread sealant tape to male npt threads prior to installation.
1
1
1
1
1
1
ti12462a
