Dimensions
64 312394C

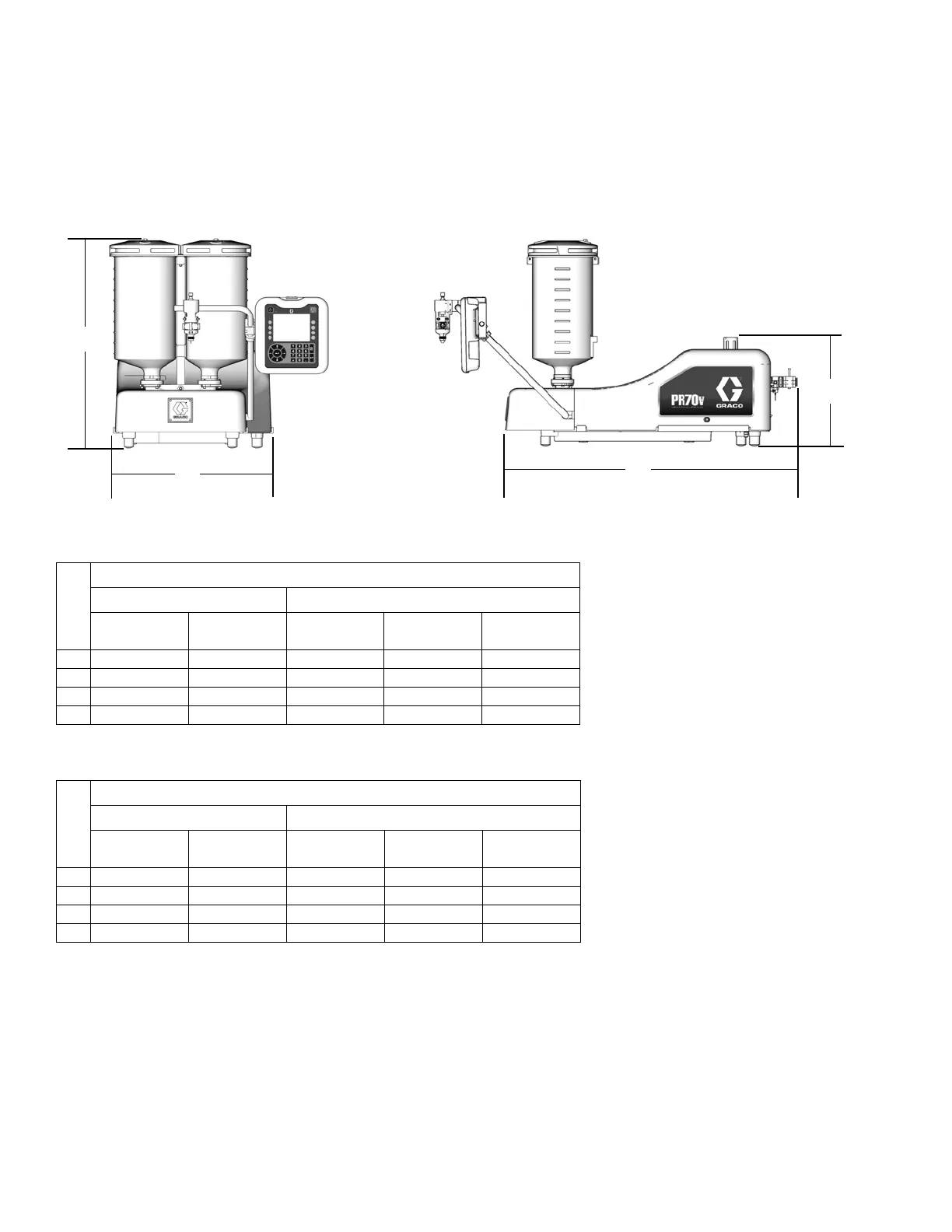

Dimensions
Machine with On-Board Tanks
PR70
PR70v
† Assembly dimensions listed are maximum for all assemblies under the given title.
 On-board stainless steel tank dimensions include ball valves and vacuum de-gas in maximum height calculation.
B
A
C
D
ti12621a
ti12622a
Ref
† Assembly Dimensions, in. (mm)
Polyethylene Tanks
 Stainless Steel Tanks
No Agitators With Agitators 3 L
7.5 L, No
Agitators
7.5 L, with
Agitators
A 26.4 (670) 38.6 (980) 28.2 (716) 38.2 (970) 39.9 (1013)
B 18.5 (470) 15.5 (394) 15.5 (394) 15.5 (394) 15.5 (394)
C 30.6 (778) 30.6 (778) 30.6 (778) 30.6 (778) 30.6 (778)
D 13.4 (340) 13.4 (340) 13.4 (340) 13.4 (340) 13.4 (340)
Ref
† Assembly Dimensions, in. (mm)
Polyethylene Tanks
 Stainless Steel Tanks
No Agitators With Agitators
3L, No
Agitators
7.5 L, No
Agitators
7.5 L, with
Agitators
A 30.0 (762) 39.4 (1001) 29.0 (737) 39.0 (991) 40.6 (1031)
B 20.9 (531) 20.9 (531) 20.9 (531) 20.9 (531) 20.9 (531)
C 38.6 (980) 38.6 (980) 38.6 (980) 38.6 (980) 38.6 (980)
D 14.3 (363) 20.9 (531) 20.9 (531) 20.9 (531) 20.9 (531)
