Parts
54 312394C

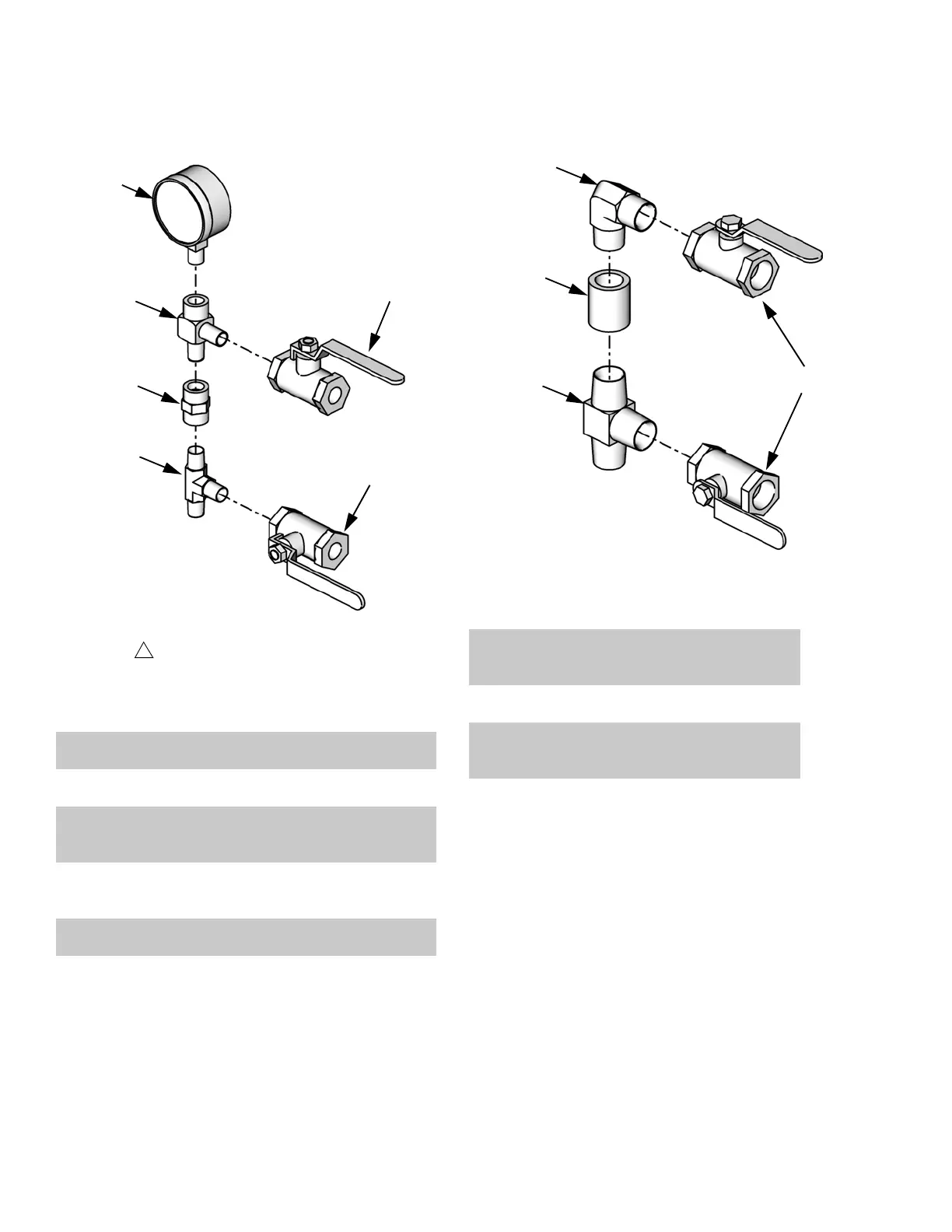

Vacuum Tree Manifold, 255342 Vacuum Tree Manifold, 255384
Ref Part Description Qty
2901 82/0220-1/11 GAUGE, 30 in. hg, 30 psi,
liquid filled
1
2902 94/0900-R2/99 VALVE, ball, 2-way, 1/4 npt,
female, 2K, mild steel
2
2903 121087 FITTING, tee,
male-male-male, 1/4 in.
NPT
1
2904 121088 FITTING, tee,
male-male-female, 1/4 in.
npt
1
2905 121089 FITTING, nipple, hex,
female-female, 1/4 in. npt
1
ti12575a
Apply thread sealant tape to male npt threads
prior to installation.
1
2902
2902
2901
2904
2905
2903
Ref Part Description Qty
3001 94/0055/98 FITTING, tee, 3/4
NPT, male, stain-
less steel
1
3002 94/0836/98 COUPLING, full, 3/4
NPT, stainless steel
1
3003 94/0903-R2/98 VALVE, ball, 2-way,
3/4 NPT, female,
stainless steel
2
3004 121116 FITTING, elbow, 3/4
NPT, male-male,
90 degree
1
ti12576a
3004
3002
3001
3003
