Parts
312394C 53

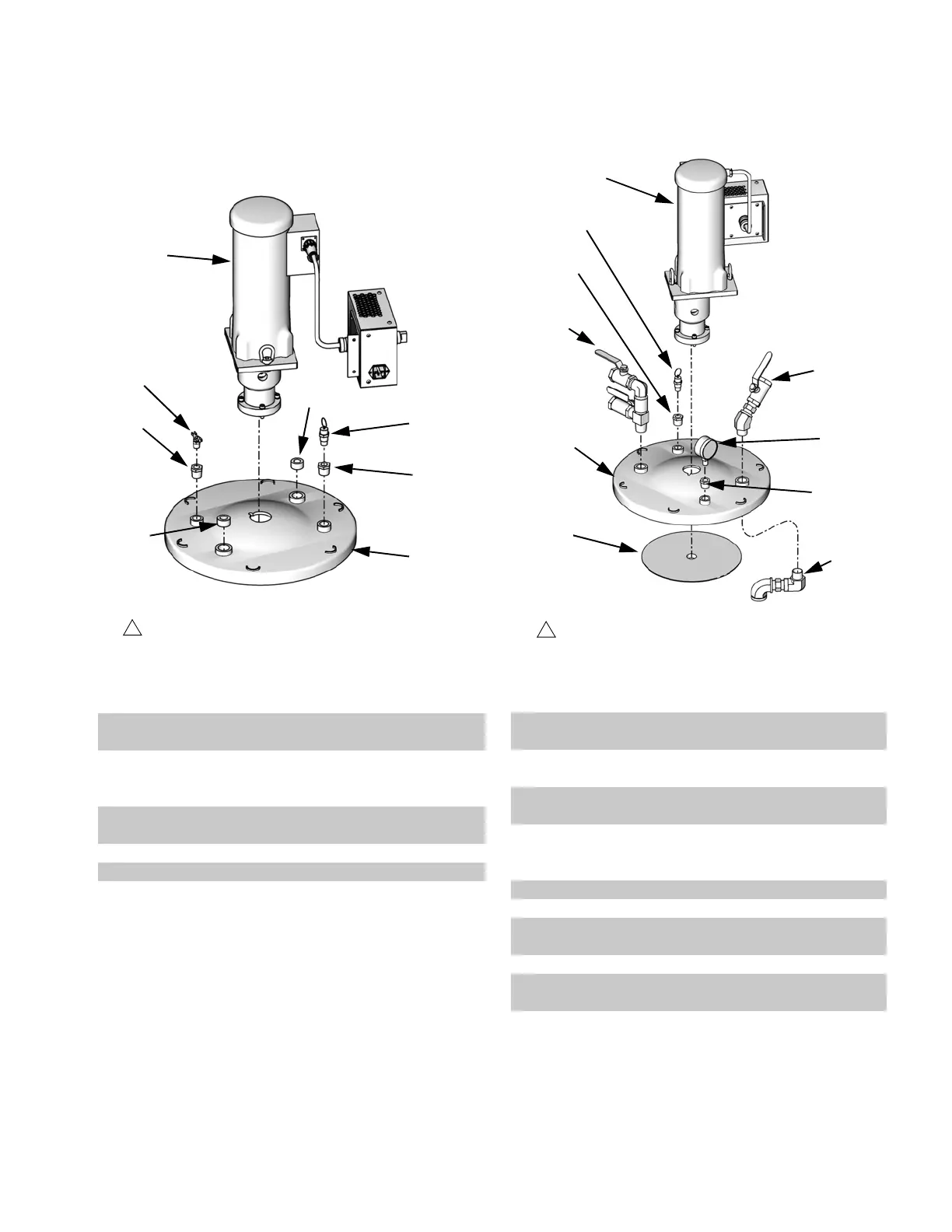

Lid Assembly with Agitator, LC0044 Lid Assembly with Agitator, LC0046
Ref Part Description Qty
2301 94/0372/98 PLUG, socket head, 3/4 npt,
stainless steel
2
2302 94/0568/98 BUSHING, 1/2 x 1/4 npt,
male/female, stainless steel,
6k, 316
2
2303 94/0736/96 VALVE, drain cock, 1/4 npt,
male, brass
1
2304 255386 AGITATOR, motor assembly 1
2305 15M621 LID, agitator 1
2306 15R145 VALVE, relief, 1/4 npt, male,
40 psi, sil
1
2304
2303
2302
2301
2301
2306
2302
2305
Apply thread sealant tape to male npt threads prior to
installation.
1
ti12587a
Ref Part Description Qty
2401 02/0686-C/50 VALVE, assembly, ball, fill,
lid, 3/4, stainless steel
1
2402 82/0220-1/11 GAUGE, 30 in. hg, 30 psi,
2-1/2 in., liquid
1
2403 87/0105-E/98 PLATE, slinger, 30/60 L,
1ID, 10OD
1
2404 94/0568/98 BUSHING, 1/2 x 1/4 npt,
male/female, stainless
steel, 6k, 316
2
2405 255384 FITTING, vacuum tree 1
2406 255385 FITTING 1
2407 255386 AGITATOR, motor assem-
bly
1
2408 15M621 LID, agitator 1
2409 15R145 VALVE, relief, 1/4 npt, m,
40 psi, sil
1
2407
2401
2406
2054
2404
2409
2408
2403
2402
2404
Apply thread sealant tape to male npt threads prior to
installation.
1
