On-Board Polyethylene Feed Systems

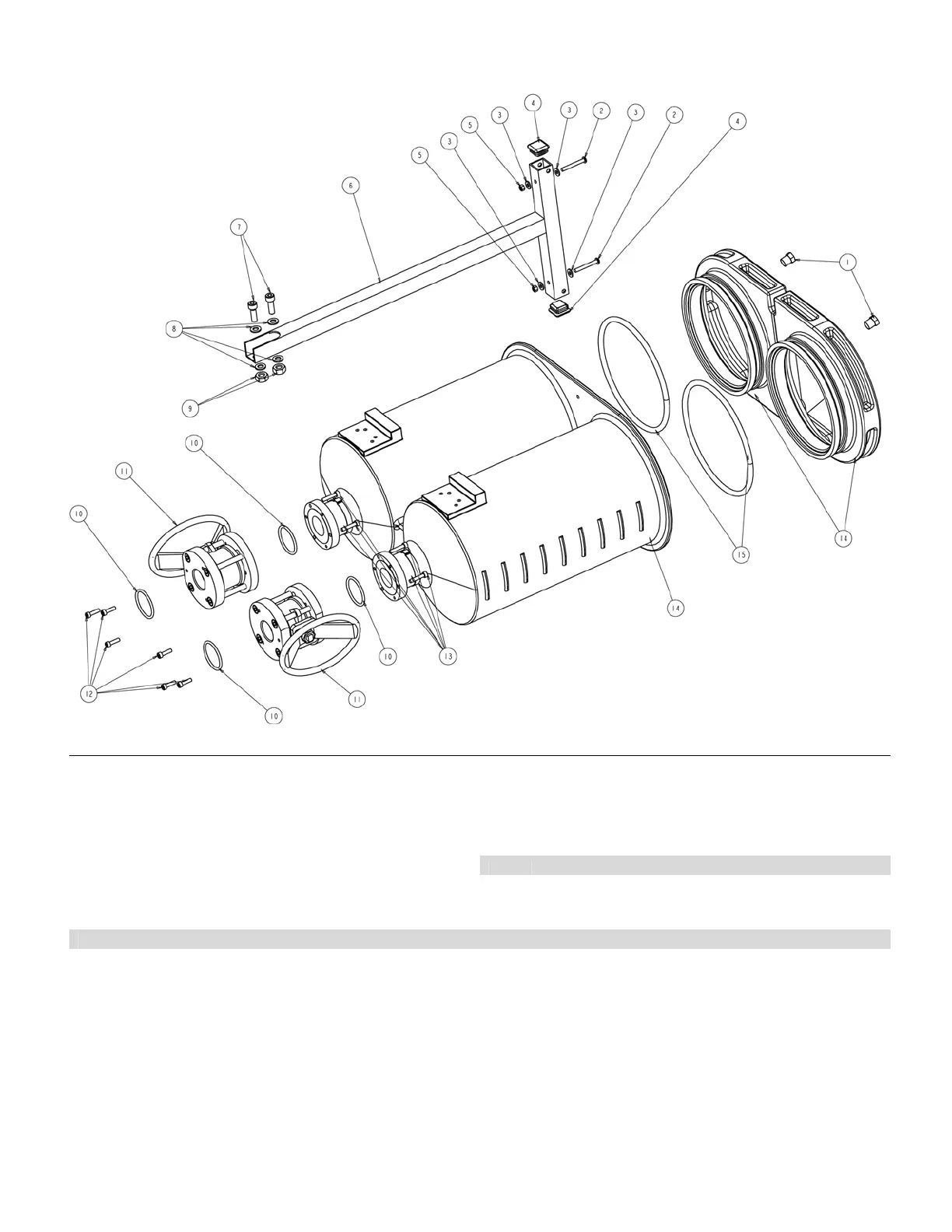

Figure 18: TANK ASSY, DUAL 8L PE WITH SHUTOFF (P/N 255281)
1 120909 BREATHER 9 120906 NUT,HEX,LOCK,M8X1.25,SST
2 120902 SCREW,SHCS,M5X0.8X40MM,SST 10 95/0223/00 O-RING,VIT,BBC
3 120907 WASHER,FLAT,#10,SST 11 255280 BALL VALVE ASSEMBLY
4 120915 CAP PLUG 12 120904 SCREW,SHCS,M5X0.8X18MM,SST
5 120905 NUT,HEX,LOCK,M5X0.8,SST 13 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
14 15K838 TANK,DUAL,8L
7 120913 SCREW,SHC,M8X1.25X25,MS,E 15 15K840 O-RING
8 120908 WASHER,FLAT,M8,SST
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255479 MUST BE ORDERED
