On-Board Polyethylene Feed Systems

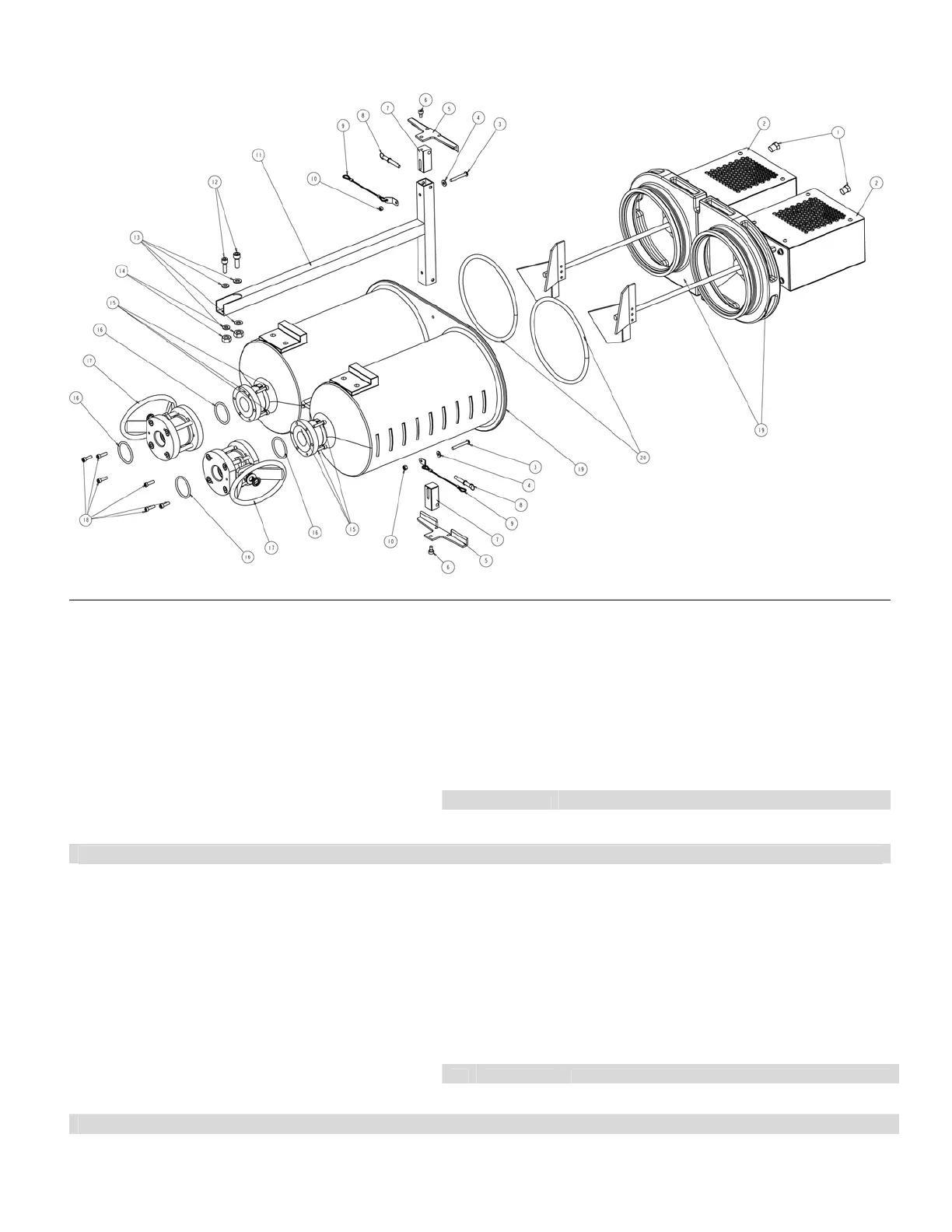

Figure 19: TANK ASSY, 8L PE WITH BALL VALVE & AGITATOR(S) (P/Ns 255282, 255283, LC0128 & LC0129)
P/N 255282 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 1 AGITATOR,120V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255246 AGITATOR ASSY,8L DUAL PE TANKS,120V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB
19 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
P/N LC0128 TANK ASSY, DUAL 8L PE WITH BALL VALVE & 2 AGITATORS,240V
1 120909 BREATHER 11 15M226 BALLAST,SUPPORT,8L PE TANK WITH BV
2 255503 AGITATOR ASSY,8L DUAL PE TANKS,240V 12 120913 SCREW,SHC,M8X1.25X25,MS,E
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 13 120908 WASHER,FLAT,M8,SST
4 120907 WASHER,FLAT,#10,SST 14 120906 NUT,HEX,LOCK,M8X1.25,SST
5 15K883 CLAMP,LID 15 121013 SCREW,M5X0.8X25MM,SST,SHCS
6 120929 SCREW,SHOULDER,M5X0.8X6MM 16 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 17 255280 BALL VALVE ASSEMBLY
8 120927 FASTENER,QUICK RELEASE PIN 18 120904 SCREW,SHCS,M5X0.8X18MM,SST
9 120925 RETAINER,LANYARD WITH TAB
19 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
10 120905 NUT,HEX,LOCK,M5X0.8,SST 20 15K840 O-RING
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
