On-Board Polyethylene Feed Systems
312394B 22 of 71

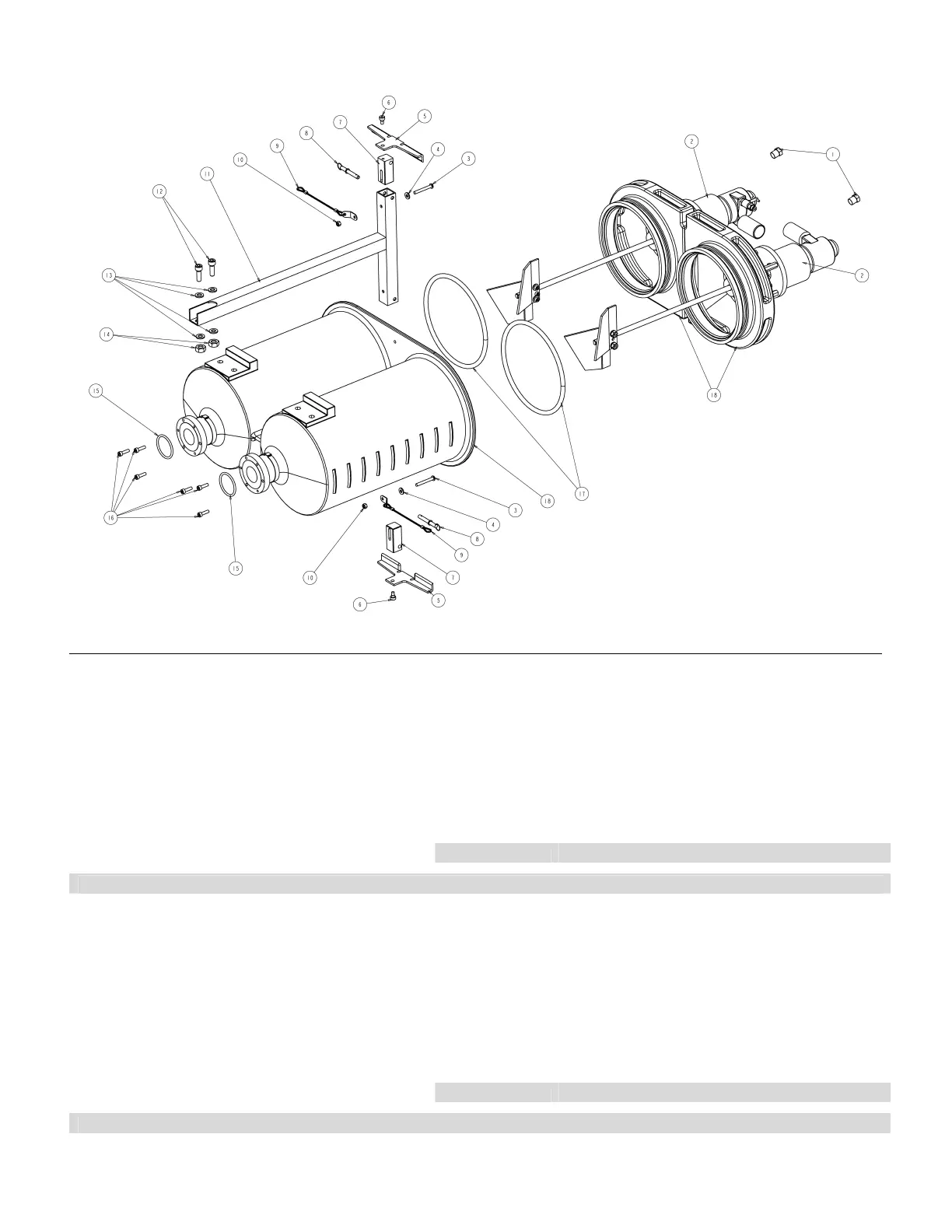

Figure 23: TANK ASSY, DUAL 8L PE WITH PNEUMATIC AGITATOR(S) (P/Ns LC0156 & LC0157)
P/N LC0156 TANK ASSY, DUAL 8L PE WITH 1 PNEUMATIC AGITATOR
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255730 AGITATOR ASSY,8L DUAL PE TANK,PNEU 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB
18 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255480 MUST BE ORDERED
P/N LC0157 TANK ASSY, DUAL 8L PE WITH 2 AGITATOR, 240V
1 120909 BREATHER 10 120905 NUT,HEX,LOCK,M5X0.8,SST
2 255730 AGITATOR ASSY,8L DUAL PE TANK,PNEU 11 15K842 SUPPORT,TANK
3 120902 SCREW,SHCS,M5X0.8X40MM,SST 12 120913 SCREW,SHC,M8X1.25X25,MS,E
4 120907 WASHER,FLAT,#10,SST 13 120908 WASHER,FLAT,M8,SST
5 15K883 CLAMP,LID 14 120906 NUT,HEX,LOCK,M8X1.25,SST
6 120929 SCREW,SHOULDER,M5X0.8X6MM 15 95/0223/00 O-RING,VIT,BBC
7 15K882 RETAINER,SLIDER 16 120904 SCREW,SHCS,M5X0.8X18MM,SST
8 120927 FASTENER,QUICK RELEASE PIN 17 15K840 O-RING
9 120925 RETAINER,LANYARD WITH TAB
18 15K839 TANK ASSY,8L DUAL PE WITH ONE AGITATOR>
PART NUMBER CANNOT BE ORDERED AS A SPARE. TANK REPLACEMENT KIT 255481 MUST BE ORDERED
