On-Board Polyethylene Feed Systems

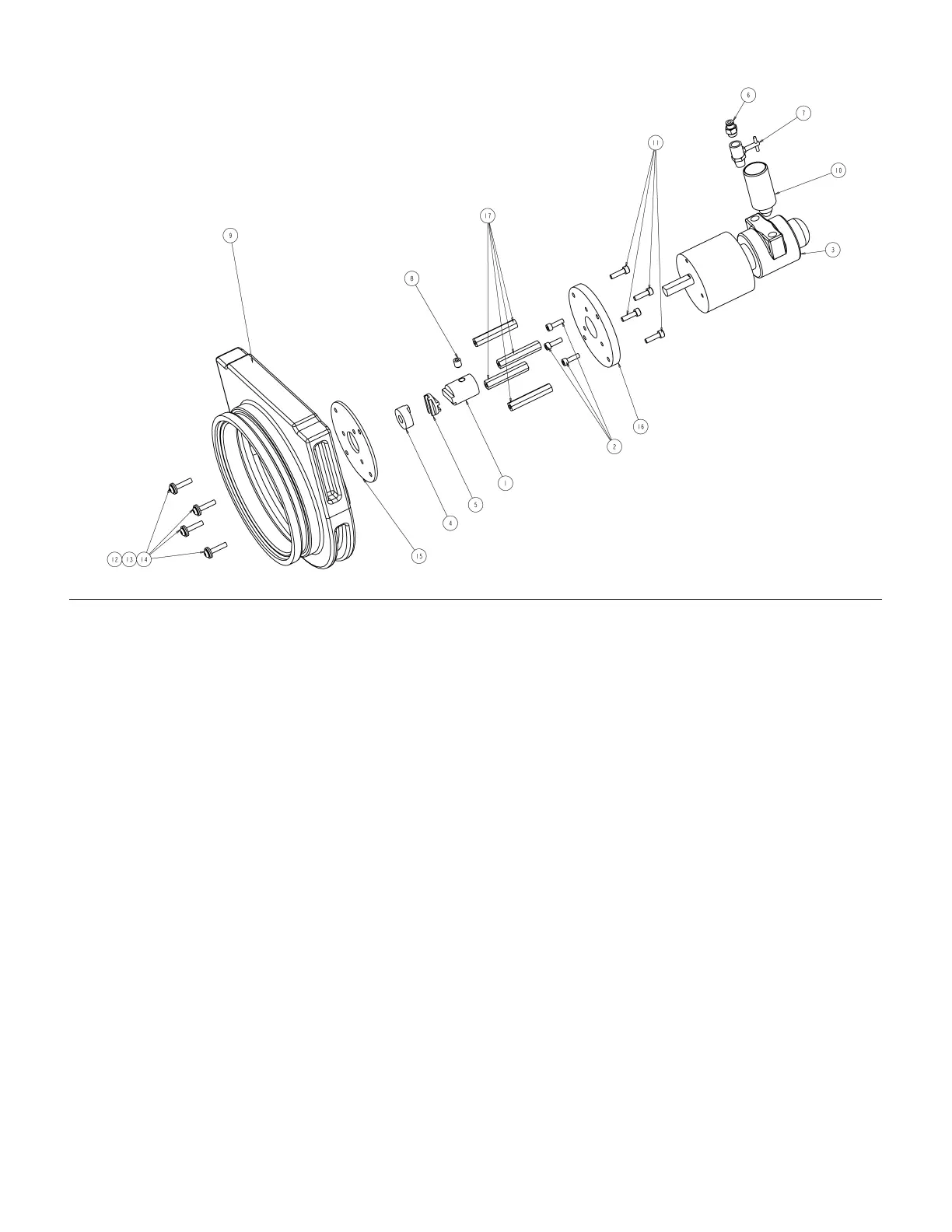

Figure 22: PE PNEUMATIC AGITATOR View 3 of 3 (Upper View) (P/N 255730)
01/1189/98 ADAPTER,COUPLING,AIR MOTOR,AGIT 10 **** MUFFLER (COMES WITH AIR MOTOR)
1
2 5-01-0510 SCREW,SHC,10-32X5/8” 11 120904 SCREW,SHCS, M5X0.8X18MM,SST
82/0216/11 MOT OR,PNEU,AGIT,0.32HP,15:1 RATIO,REV
12 120907 WASHER,FLAT,#10,SST
4 84/2215-A/1 1 COUPLING,ALIGNMENT,1"OD,HUB,3/8ID 13 120928 SCREW,BHCS,M5X0.8X25MM SST
5 84/2215-B/1 1 COUPLING,ALIGNMENT,1"OD,DISK,NYLON 14 120930 WASHER,SEAL
6 94/0702/96 CONNECTOR,1/4TUBEX1/8NPT,M,BRS 15 15K886 DISK,SUPPORT
7 94/0838/96 VALVE,NEEDLE,1/8NPTX1/8NPT,MXF,BRS 16 15R363 ADAPTER,PLATE,PNEUMATIC AGITATOR
8 96/0029/99 SCREW,SHC,5/16-24X0.25,CUP PT,MS 17 15R364 SPACER,STANDOFF
9 ****** LID REPRESENTATION (REFERENCE ONLY)
3
