On-Board Stainless Steel Feed Systems

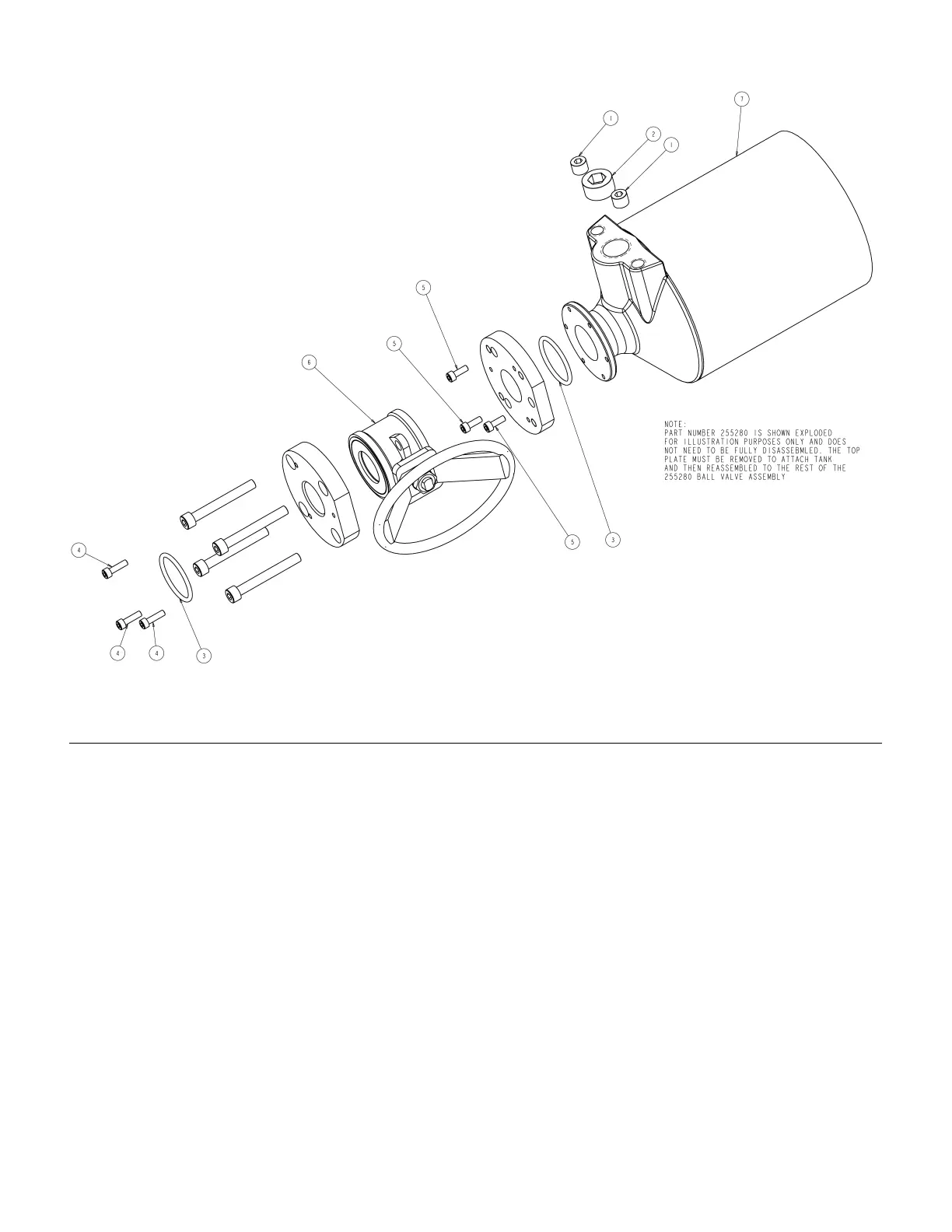

Figure 41: TANK ASSY,3L SST WITH BALL VALVE SHUTOFF (P/N 255285)
1 94/0370/98 PLUG,SKT HD,1/4NPT,SS 5 121011 SCREW,M5X0.8X14MM,SST,SHCS
2 94/0372/98 PLUG,SKT HD,3/4NPT,SS 6 255280 BALL VALVE ASSEMBLY
3 95/0223/00 O-RING,VIT,BBC 7 15M108 TANK,3L SST
4 120904 SCREW,SHCS,M5X0.8X18MM,SST
312394B 34 of 71
