On-Board Stainless Steel Feed Systems

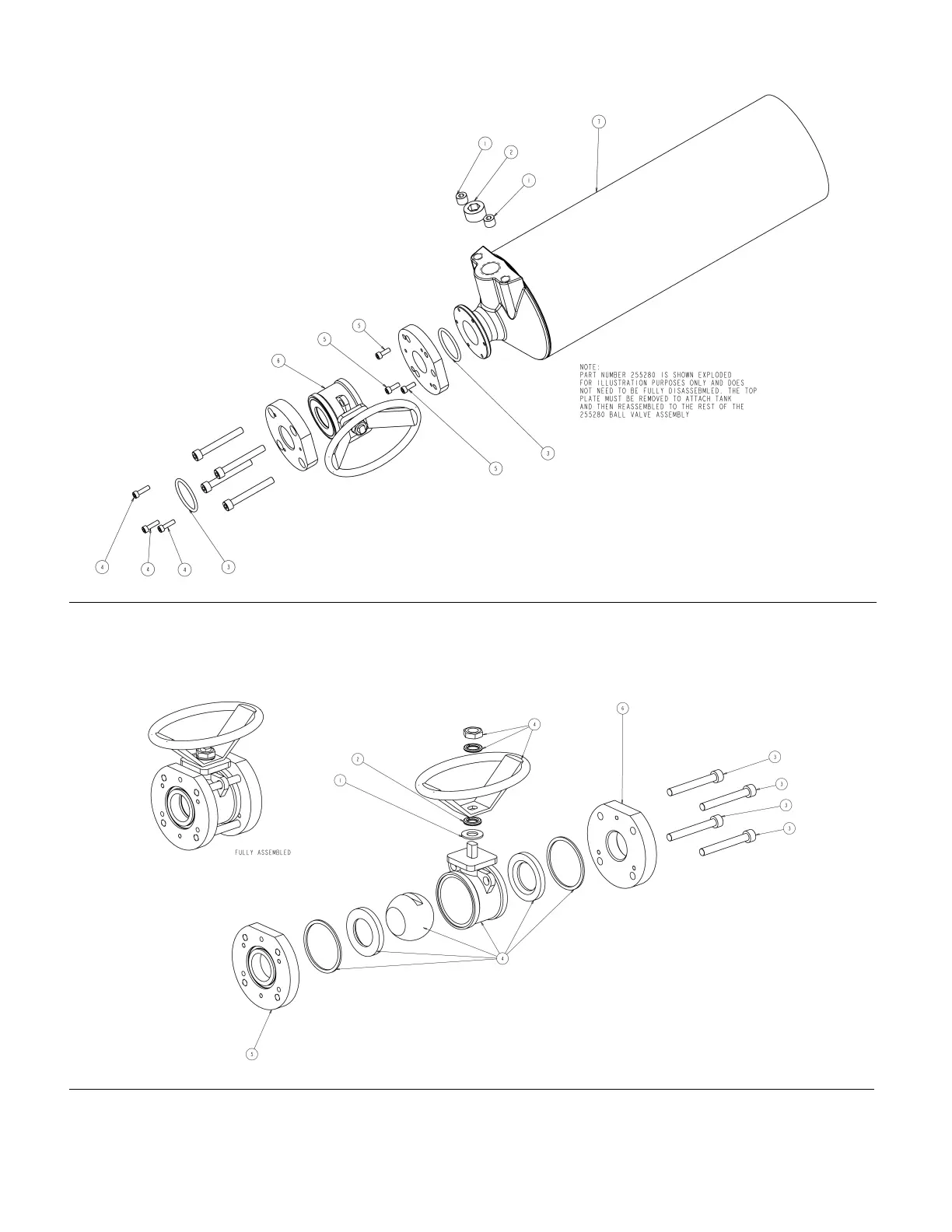

Figure 42: TANK ASSY,7.5L SST WITH BALL VALVE SHUTOFF (P/N 255284)
1 94/0370/98 PLUG,SKT HD,1/4NPT,SS 5 121011 SCREW,M5X0.8X14MM,SST,SHCS
2 94/0372/98 PLUG,SKT HD,3/4NPT,SS 6 255280 BALL VALVE ASSEMBLY
3 95/0223/00 O-RING,VIT,BBC 7 15K870 TANK,7.5L,SST
4 120904 SCREW,SHCS,M5X0.8X18MM,SST
Figure 43: BALL VALVE ASSEMBLY (P/N 255280)
1 96/0075-1/99 WASHER,FLAT,SAE,7/16,MS,N SERIES 4 121111 VALVE,BALL,1-1/4" NPT FULL PORT
2 96/0075/99 WASHER,LOCK,SPLIT,7/16,MS 5 15M224 FLANGE,BALL VALVE PLATE,TOP
3 121012 SCREW,M8X1.15X65MM,SST,SHCS 6 15M225 FLANGE,BALL VALVE, BOTTOM
312394B 35 of 71
